E2600 Controller-Drive Tray Installation Guide 33
NOTE Make sure that you place the controller-drive tray in the middle portion of the cabinet while allowing room
for drive trays to be placed above and below the controller-drive tray. As you add drive trays, position them below
and above the controller-drive tray, alternating so that the cabinet does not become top heavy.
4. With the help of one other person, slide the rear of the controller-drive tray onto the mounting rails. Make sure
that the top mounting holes on the controller-drive tray align with the mounting rail holes of the cabinet (see
Figure 26 and Figure 27 on page 34).
The rear of the controller-drive tray slides into the slots on th
e mounting rails.

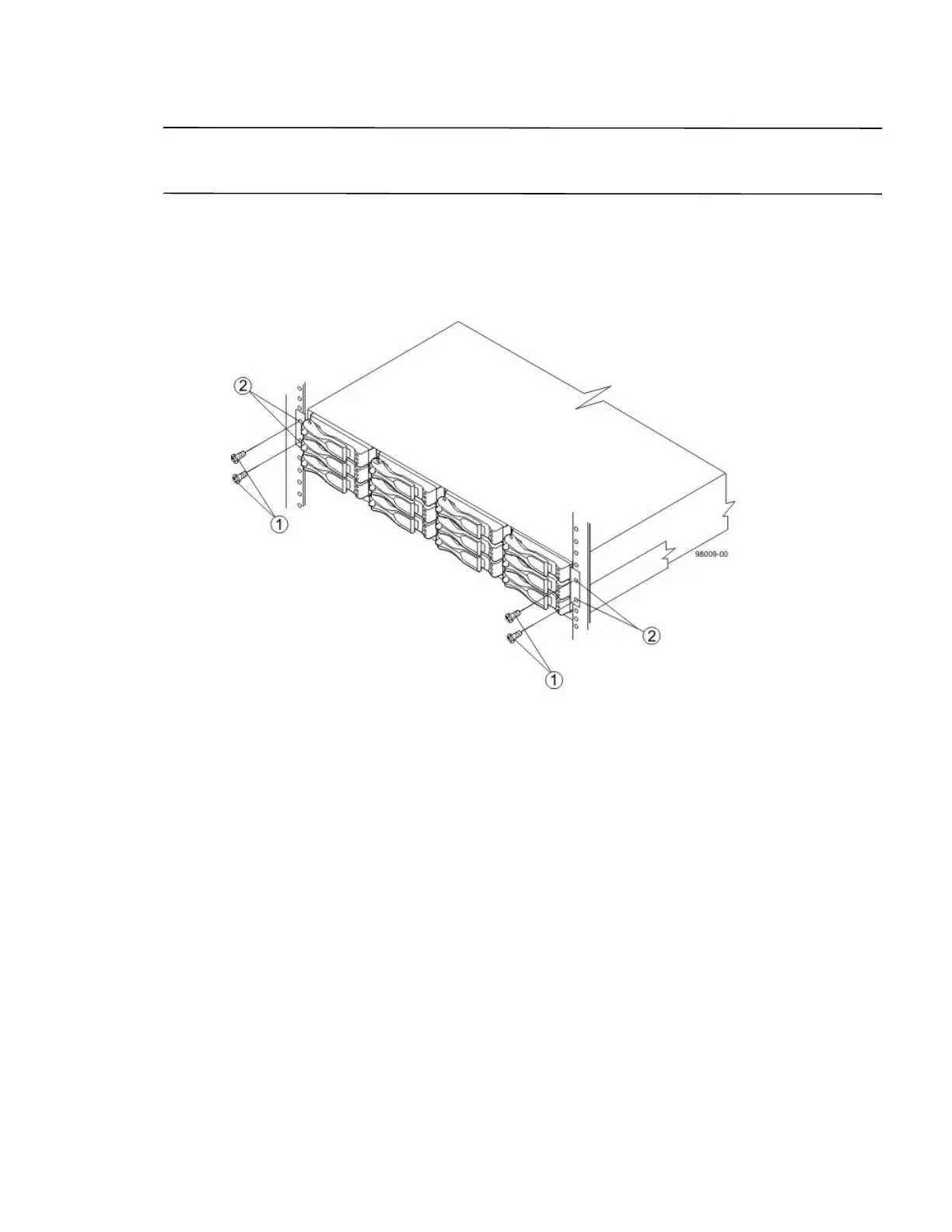

Figure 26 Securing the E2600 Controller-Drive Tray with 12 Drives to the Cabinet
1. Screws
2. Mounting Holes
