42 E2600 Controller-Drive Tray Installation Guide
12. Remove the fan canister from the controller-drive tray by pressing on the tab holding the fan canister handle in
place, and then pulling the fan canister toward you.

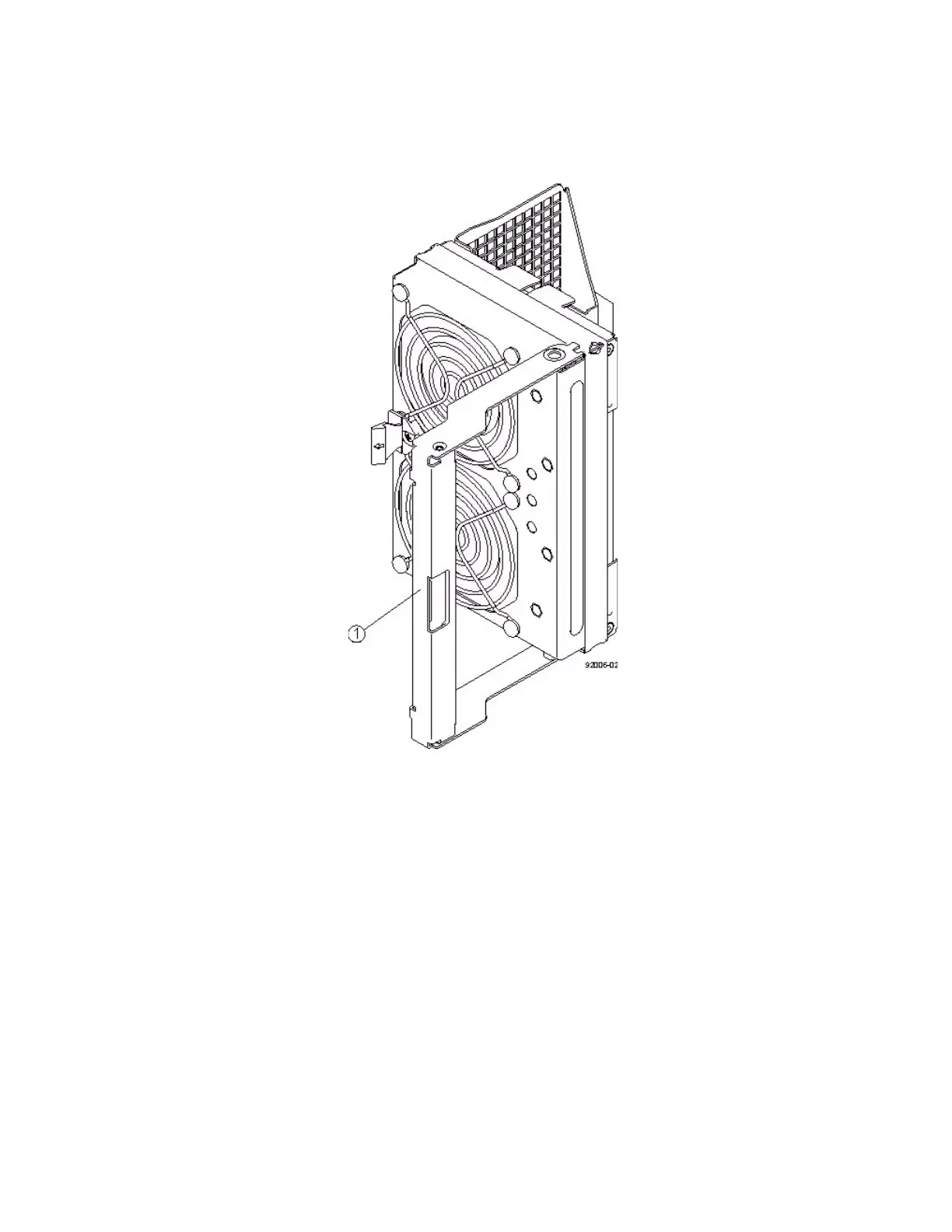

Figure 36 Removing the Fan Canister from the Controller-Drive Tray
1. Fan Canister Handle
13. Use the fan canister handle to pull the fan canister out of the controller-drive tray.
