E2600 Controller-Drive Tray Installation Guide 75
12. Remove the fan canister from the drive tray by pressing on the tab holding the fan canister handle in place, and
then pulling the fan canister toward you.

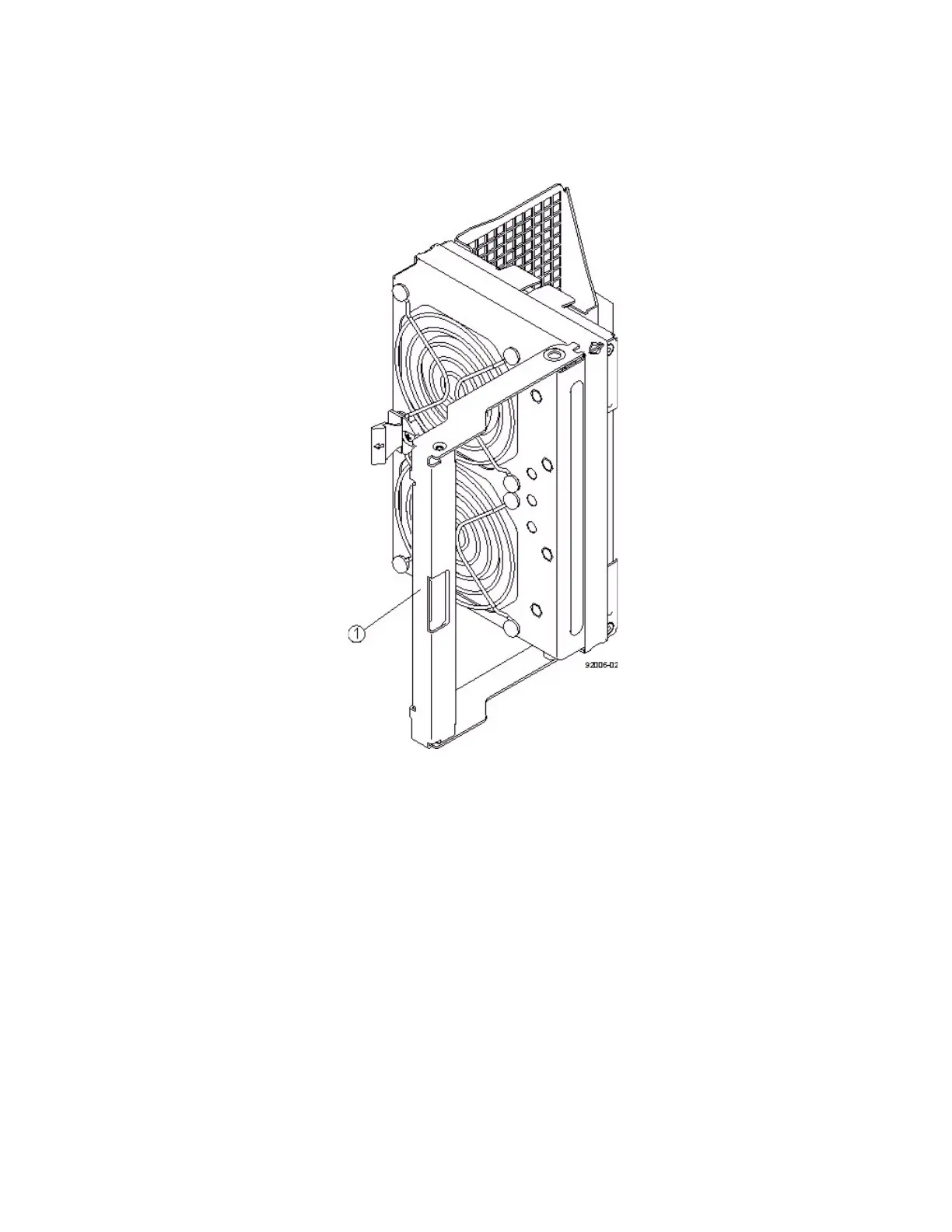

Figure 68 Removing the Fan Canister from the Drive Tray
1. Fan Canister Handle
13. Use the fan canister handle to pull the fan canister out of the drive tray.
