Chapter 4: Drive Connection 97
Drive Cabling
Topologies for
the CE6998
Controller Tray
One CE6998
Controller Tray and
One Drive Tray
If you are connecting one CE6998 controller tray to one drive tray, use the cabling
topology shown in the following table and figure.

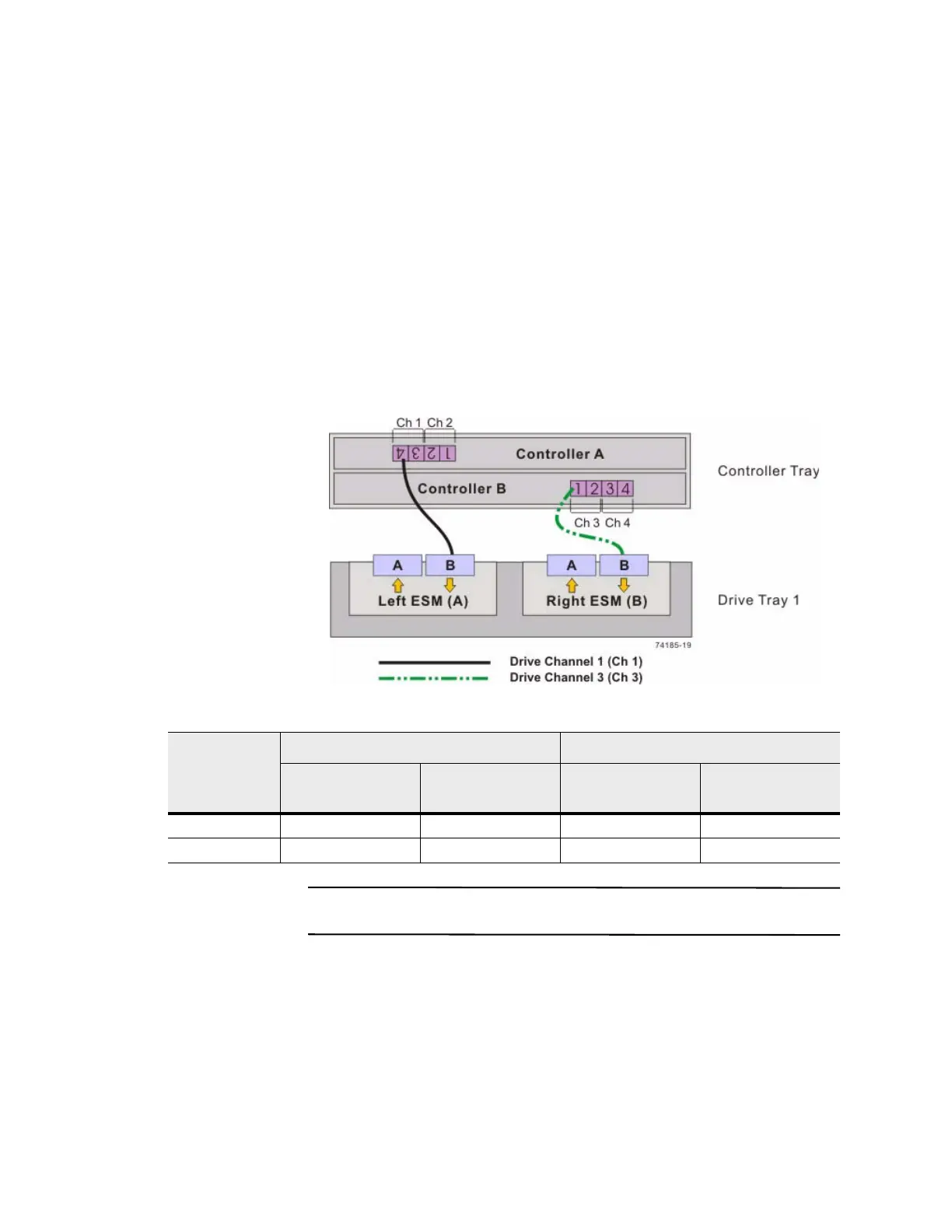

Figure 24 One CE6998 Controller Tray and One Drive Tray
Table 20 One CE6998 Controller Tray and One Drive Tray
NOTE If you have drive trays with inverted ESM canisters, see "ESM Canister
Arrangements" on page 69.
Drive Channel
Connection Point Connection Point
Tray or Component
Port Number and
Location
Tray or Component
Port Number and
Location
1 Controller A 4 Drive tray 1 Left ESM, port B
3 Controller B 1 Drive tray 1 Right ESM, port B
