Chapter 4: Drive Connection 101
One CE6998
Controller Tray and
Eight Drive Trays
If you are connecting one CE6998 controller tray to eight drive trays, use the cabling
topology described in the following table and figure.

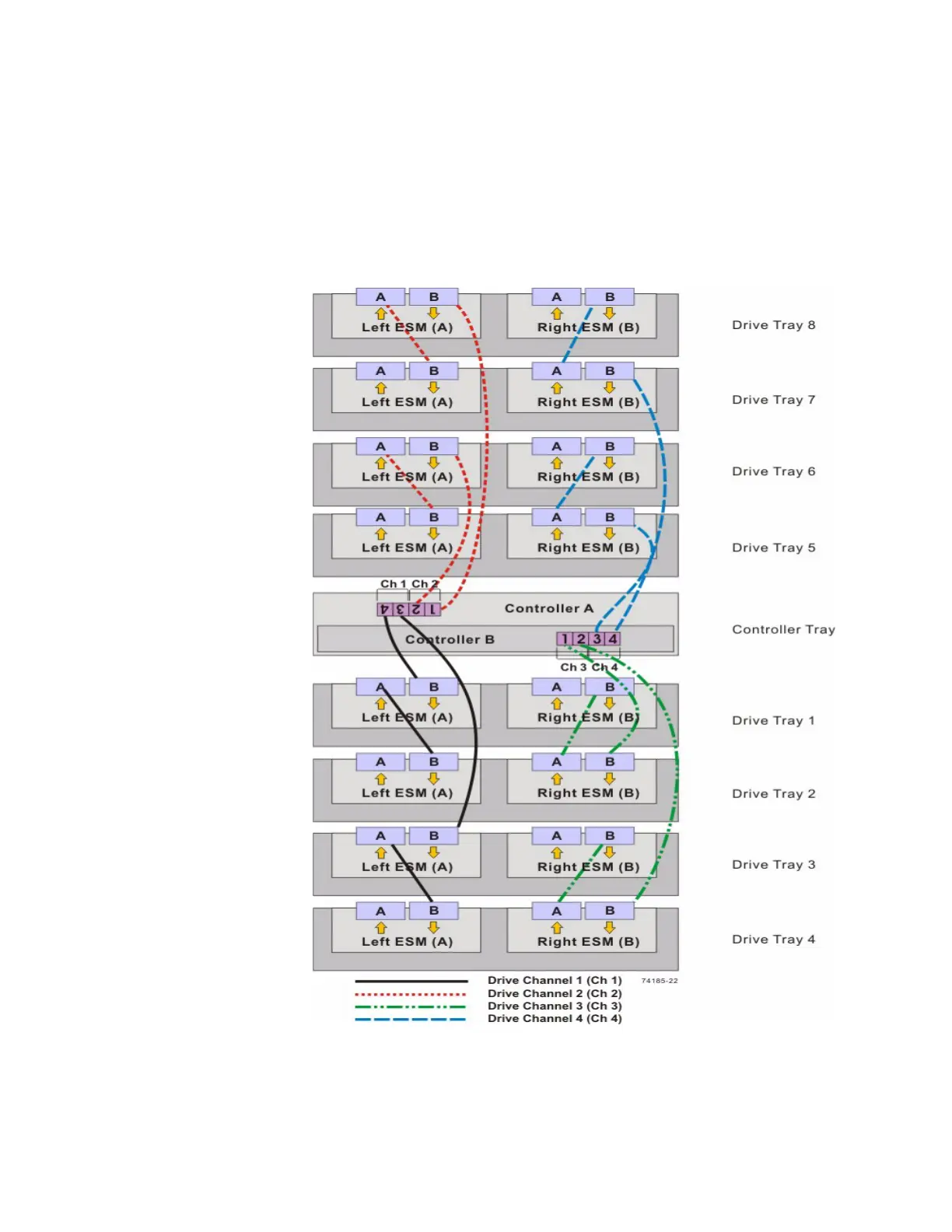

Figure 27 One CE6998 Controller Tray and Eight Drive Trays
