72
Connection for the
CE7922 Controller
Tray or the CE7900
Controller Tray and
One to Four FC4600
Drive Trays
The figures and tables in this section show representative configurations for
redundant cabling.

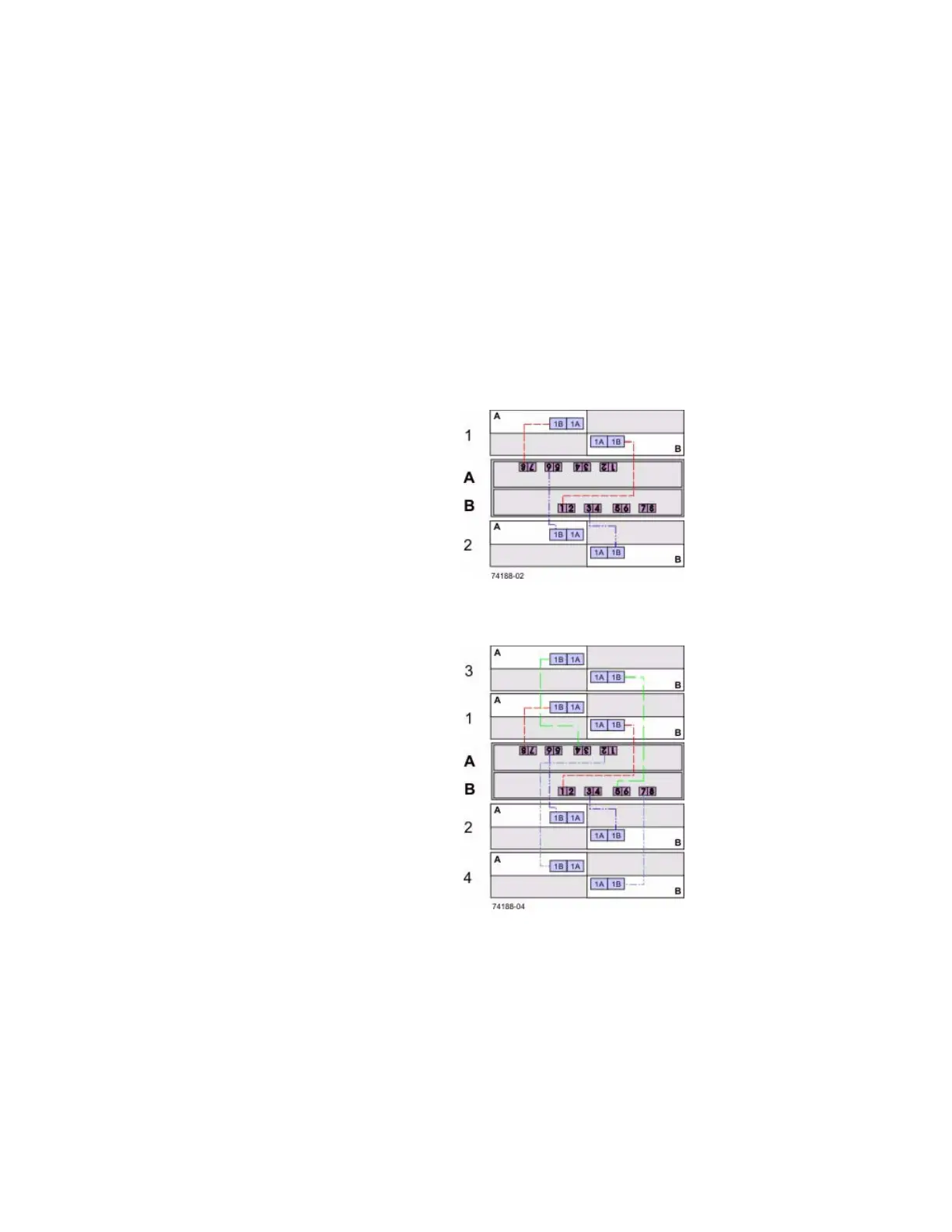

Figure 13 One CE7922 Controller Tray or CE7900 Controller Tray and Two
Driv
e T
rayDrive Trays
Figure 14 One CE7922 Controller Tray or CE7900 Controller Tray and Four
Drive Trays
