NetApp FC4600 - One CE6998 Controller Traycontroller Tray and Two Drive Trays

98
One CE6998
Controller
TrayController Tray
and Two Drive Trays
If you are connecting one CE6998 controller tray to two drive trays, use the cabling
topology described in the following table and figure.

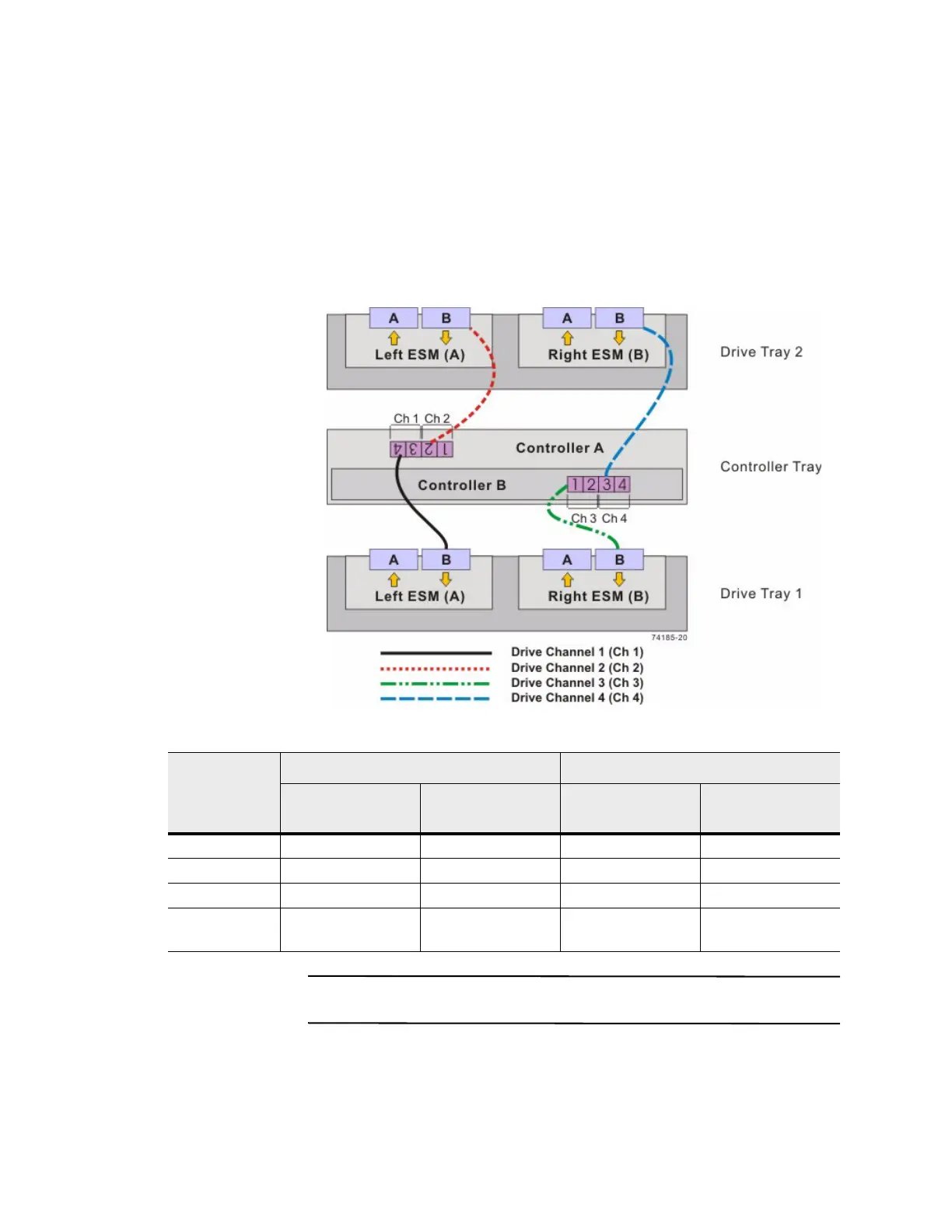

Figure 25 One CE6998 Controller Tray and Two Drive Trays
Table 21 One CE6998 Controller Tray and Two Drive Trays
NOTE If you have drive trays with inverted ESM canisters, see "ESM Canister
Arrangements" on page 69.
Drive Channel
Connection Point Connection Point
Tray or Component
Port Number and
Location
Tray or Component
Port Number and
Location
1 Controller A 4 Drive tray 1 Left ESM, port B
2 Controller A 2 Drive tray 2 Left ESM, port B
3 Controller B 1 Drive tray 1 Right ESM, port B
4 Controller B 3 Drive trayDrive tray
2
Right ESM, port B
