Chapter 4: Drive Connection 127

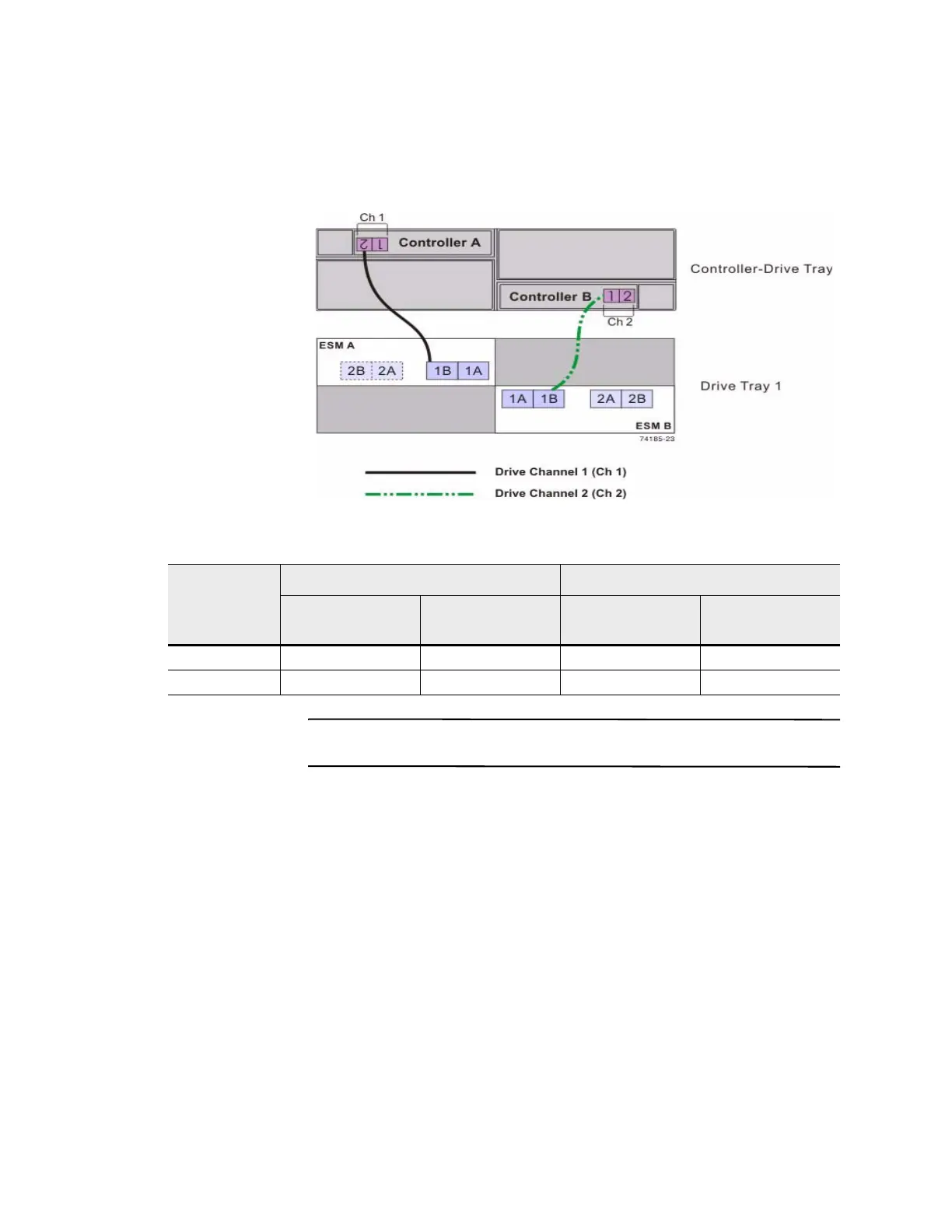

Figure 50 One CDE3994 Controller-Drive Tray and One Drive Tray with
Inverted ESMs
Table 24 One CDE3994 Controller-Drive Tray and One Drive Tray with Inverted
ESMs
NOTE If you have drive trays with inverted ESM canisters, see "ESM Canister
Arrangements" on page 69.
Drive Channel
Connection Point Connection Point
Tray or Component
Port Number and
Location
Tray or Component
Port Number and
Location
1 Controller A 2 Drive tray 1 ESM A, port 1B
2 Controller B 1 Drive tray 1 ESM B, port 1B
