132
One CDE3994
Controller-Drive
Tray or CDE3992
Controller-Drive
Tray and Four Drive
Trays
If you are connecting one CDE3994 controller-drive tray to four drive trays, and those
drive trays have inverted ESM canisters, use the cabling topology described in the
following figure and table.

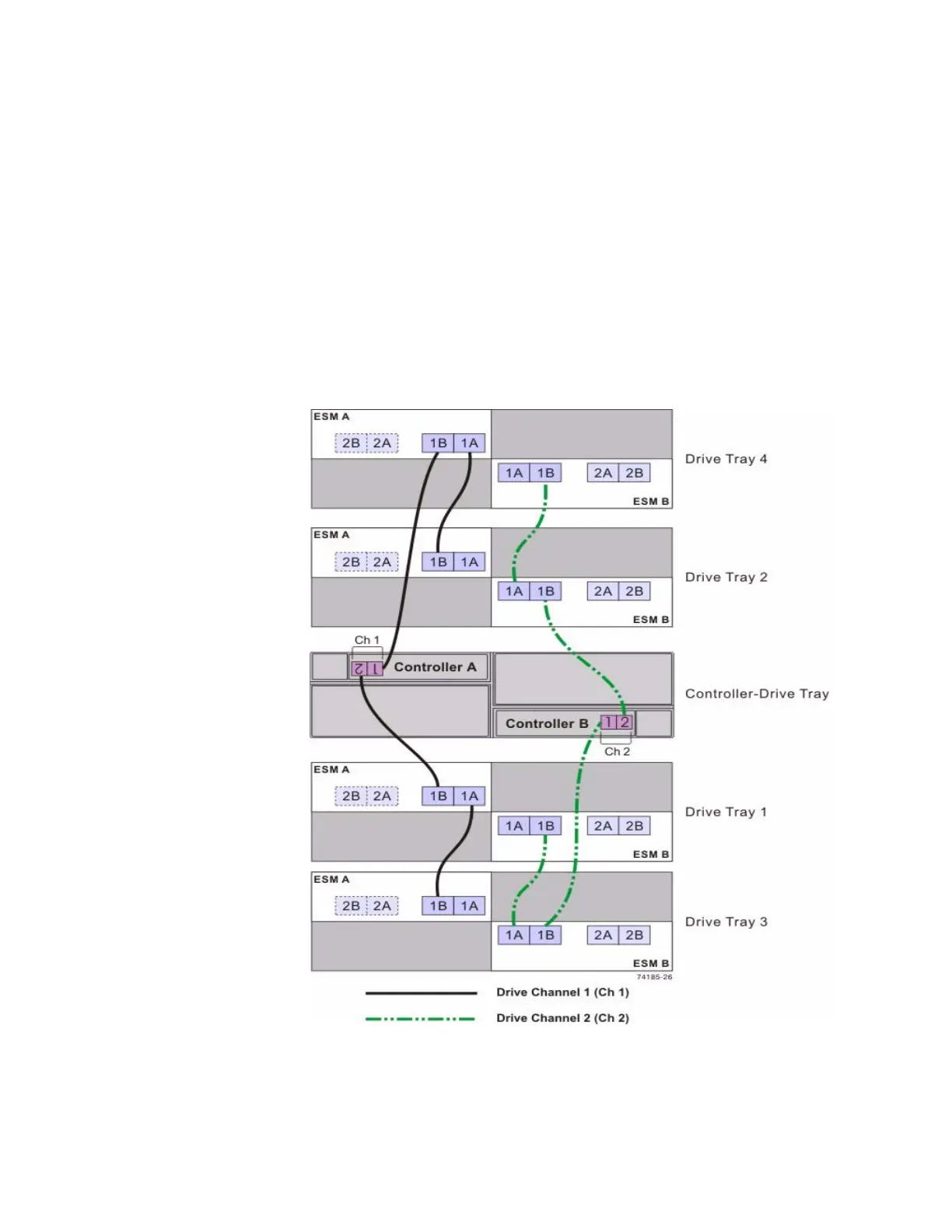

Figure 53 One CDE3994 Controller-Drive Tray and Four Drive Trays with
Inverted ESMs
