Chapter 4: Drive Connection 141

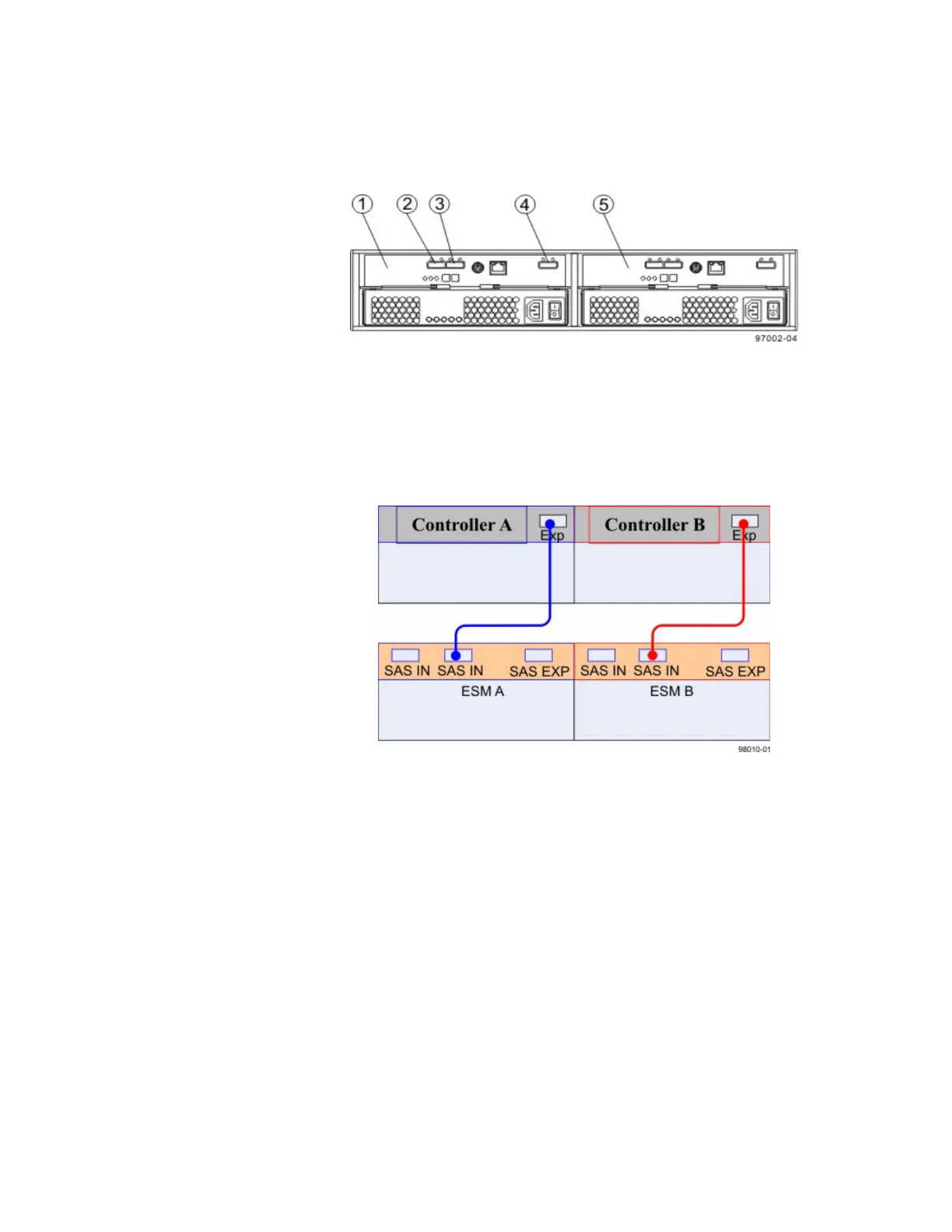

Figure 57 SAS Ports on a DE1600 Drive Tray or a DE5600 Drive Tray
1. ESM A
2. SAS Port 1
3. SAS Port 2
4. SAS Expansion Port
5. ESM B
Figure 58 One E2600 Controller-Drive Tray and One Drive Tray
