Chapter 4: Drive Connection 145
The following figures show the SAS ports on a DE6600 drive tray. You may connect
either of the SAS ports labeled SAS 1 and SAS 2 to the SAS expansion port on
another drive tray or on a controller-drive tray. Do not make connections to both the
SAS 1 port and the SAS 2 port on the same ESM.

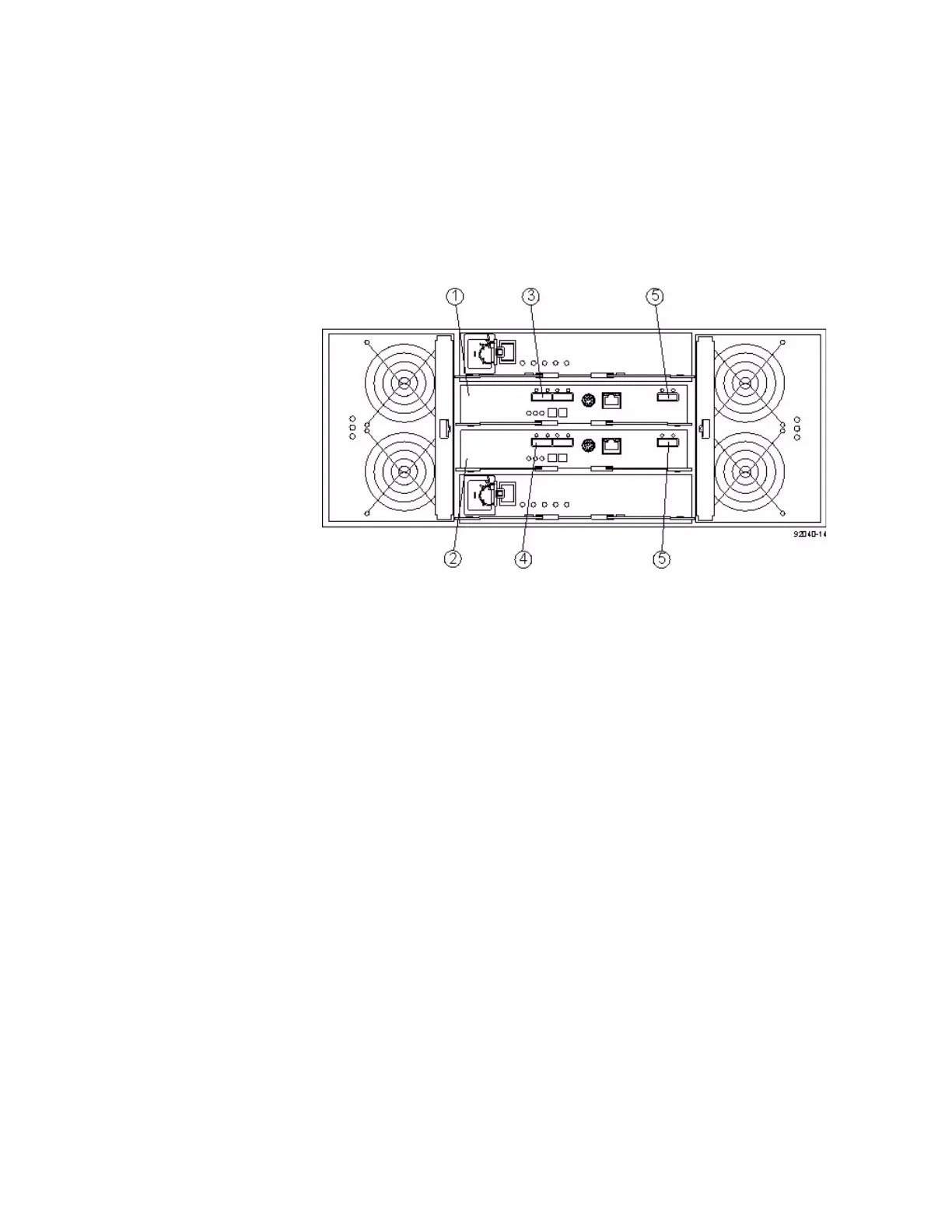

Figure 62 SAS Ports on a DE6600 Drive Tray
1. ESM A
2. ESM B
3. SAS In Port
4. SAS In Port
5. SAS Expansion Ports
