Chapter 6: Component Locations 155
Each controller in the CE7922 controller tray and the CE7900 controller tray has
four drive channels, and each drive channel has
two ports, so each controller has
eight drive ports.
Controller A is inverted from controller B, which means that its drive channels
are upside-down.

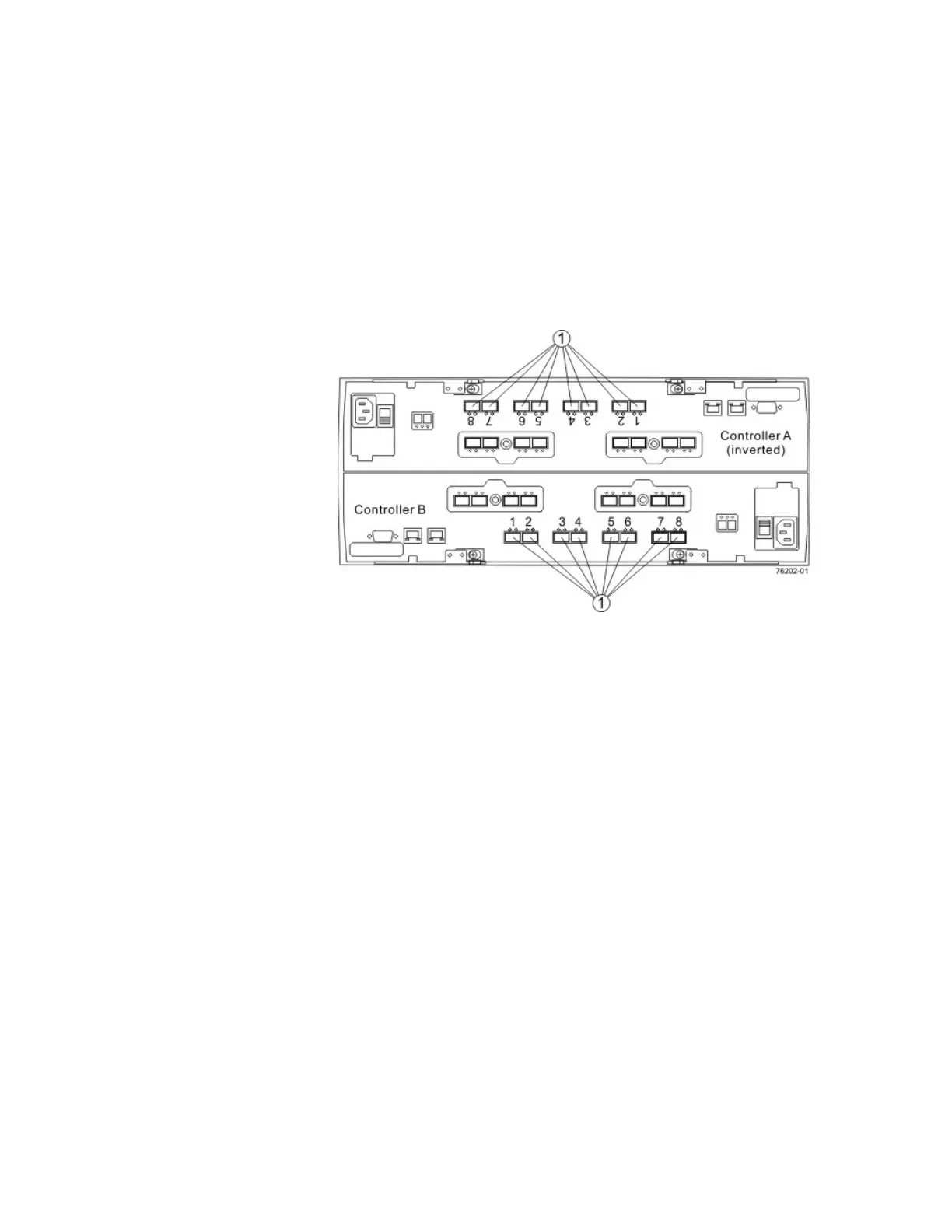

Figure 2 Drive Channel Ports on the CE7922 Controller Tray and the CE7900
Contr
o
ller Tray – Rear View
1. Drive Channel Ports
