Chapter 6: Component Locations 161

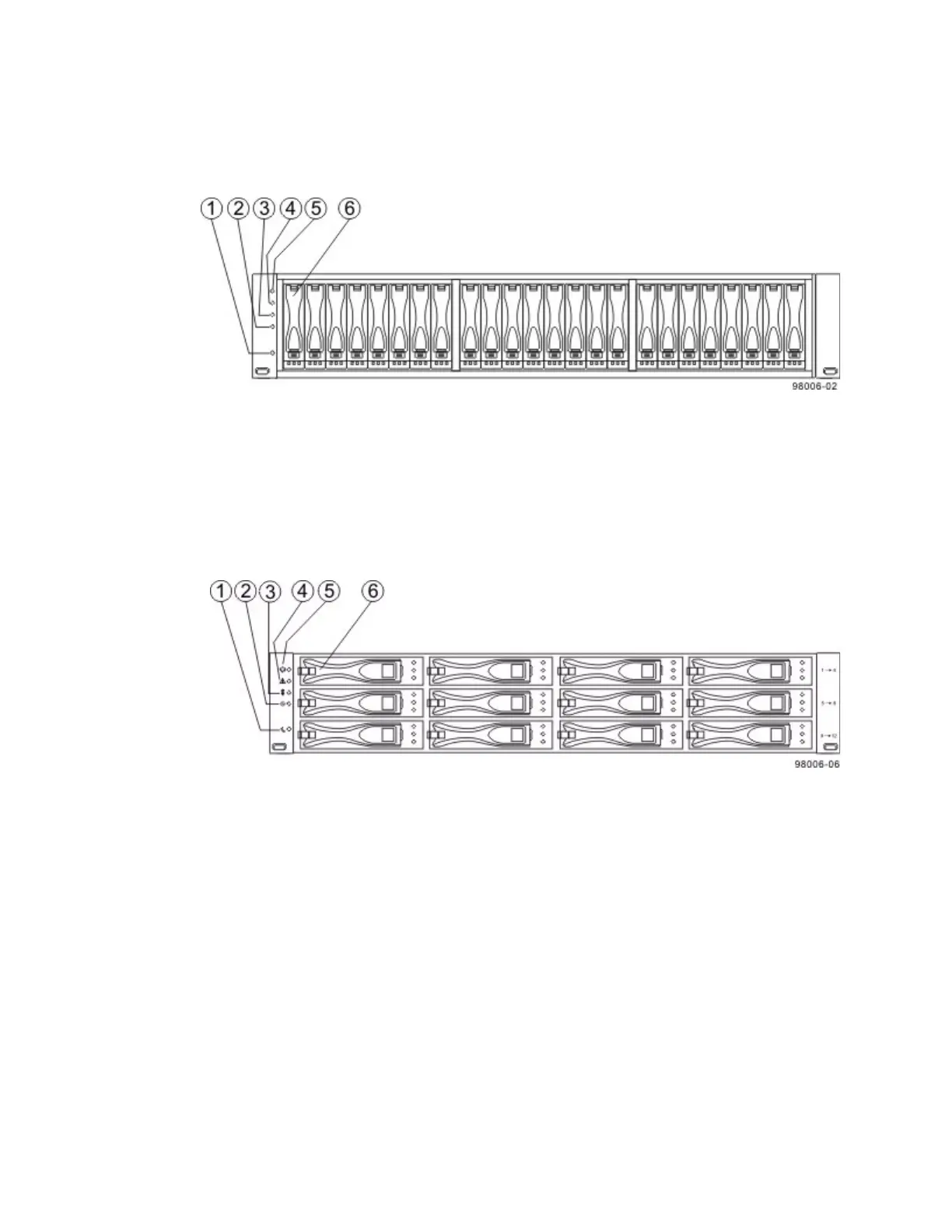

Figure 6 E5424 Controller-Drive Tray – Front View
1. Standby Power LED
2. Power LED
3. Over-Temperature LED
4. Service Action Required LED
5. Locate LED
6. Drive Canister
Figure 7 E5412 Controller-Drive Tray – Front View
1. Standby Power LED
2. Power LED
3. Over-Temperature LED
4. Service Action Required LED
5. Locate LED
6. Drive Canister
