Chapter 8: Hardware Installation for Synchronous Mirroring 191

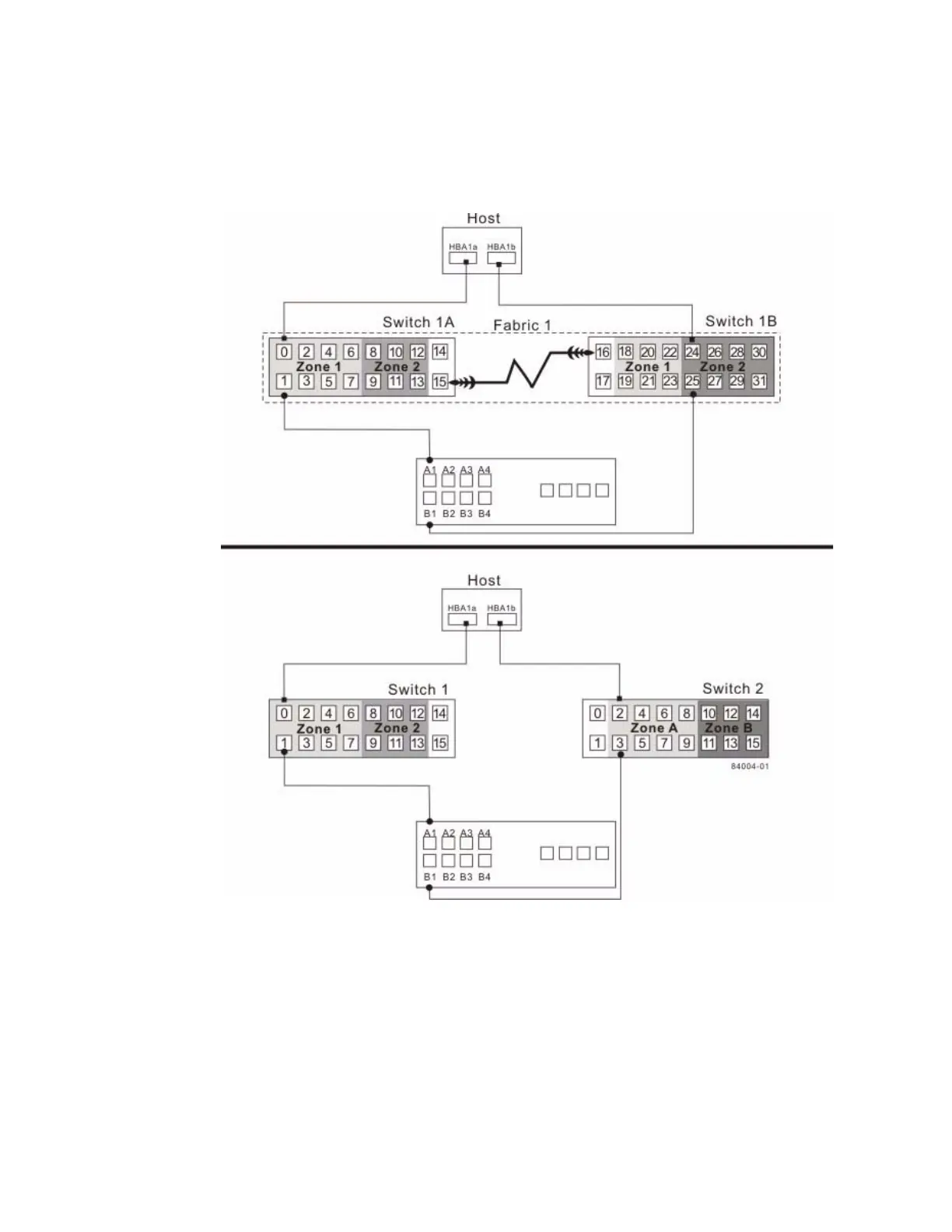

Figure 1 Switch Zoning in Cascaded and non-Cascaded Fibre Channel Switches
For more information about Fibre Channel switch zoning or setting up a zone
configuration, refer to the manufacturer’s documentation that is provided with the
switch.
Because of the varying Synchronous Mirroring configurations, the switch zone
settings are presented preceding each configuration in this appendix.
