56

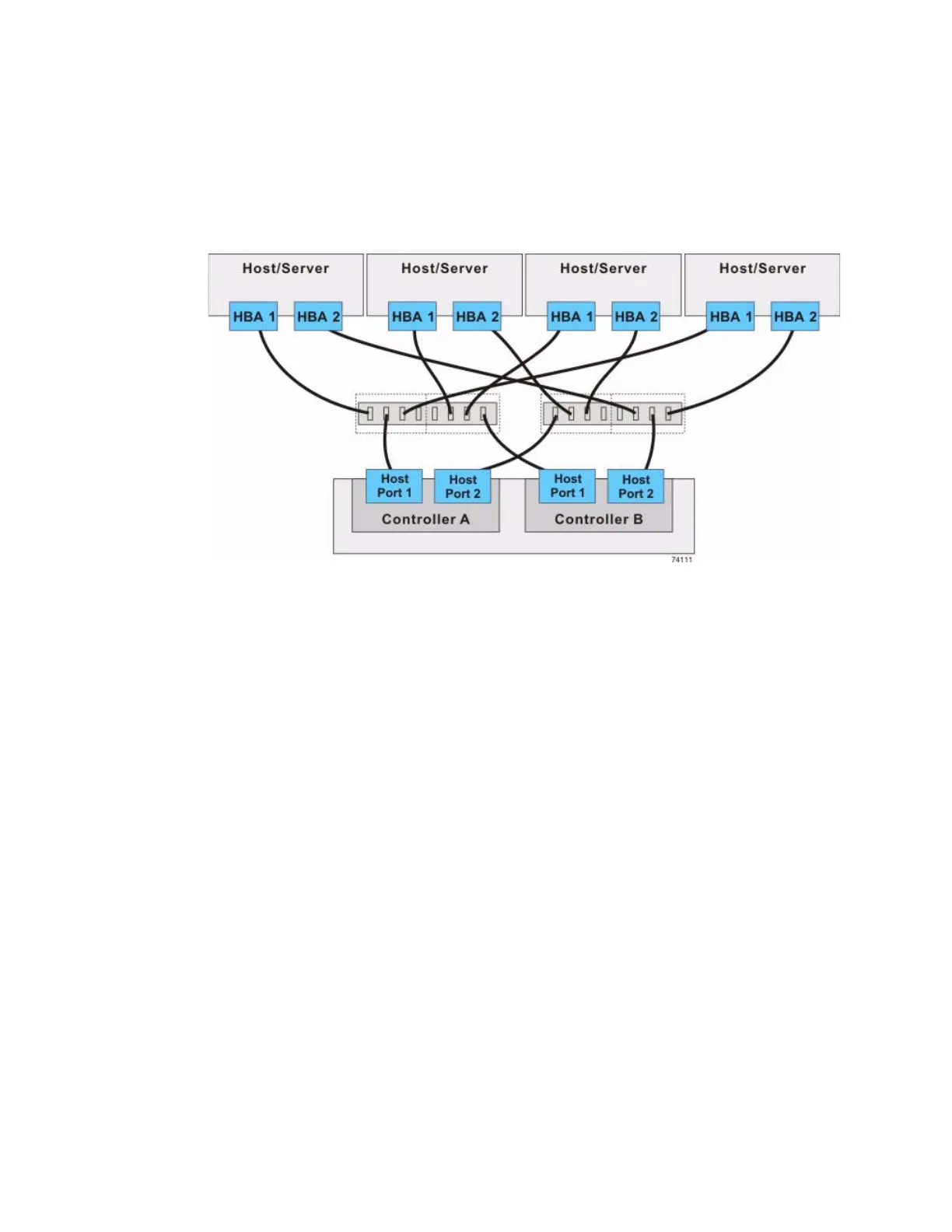

In the following figure, each outlined group of ports represents a zone.
Figure 9 Switch Topology – Four Hosts and a Controller Tray or a
Contr
oller-Drive Tray with Two Zoned Switches
