Chapter 4: Drive Connection 77
You can connect to 16 drive trays by following the pattern shown in this example.

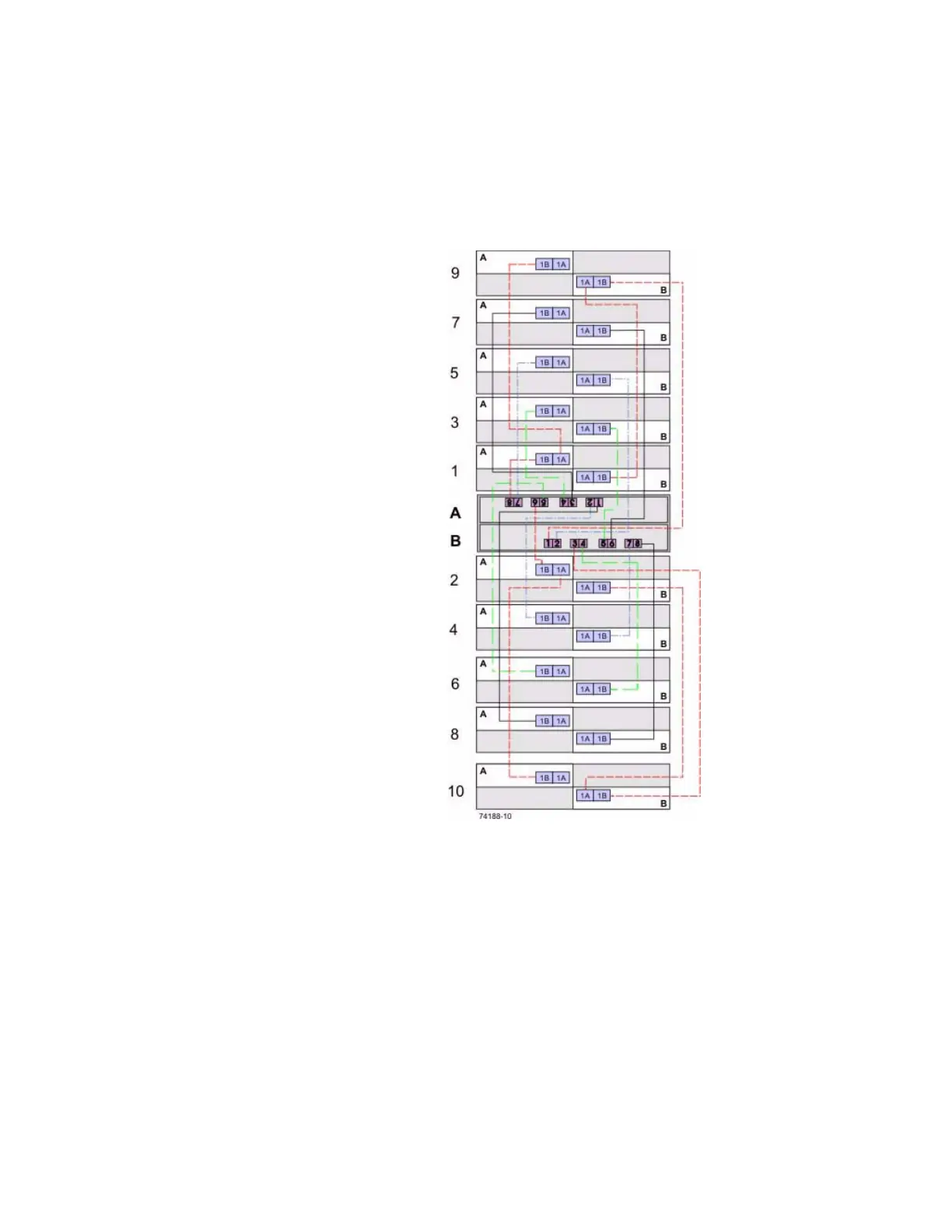

Figure 16 One CE7922 Controller Tray or CE7900 Controller Tray and
Ten
Drive Trays
