The figure and table in this topic show a representative configuration for redundant
drive connection. Use the information in the previous topic to connect the first four
drive trays, and then continue with this topic to connect up to four additional drive
trays.

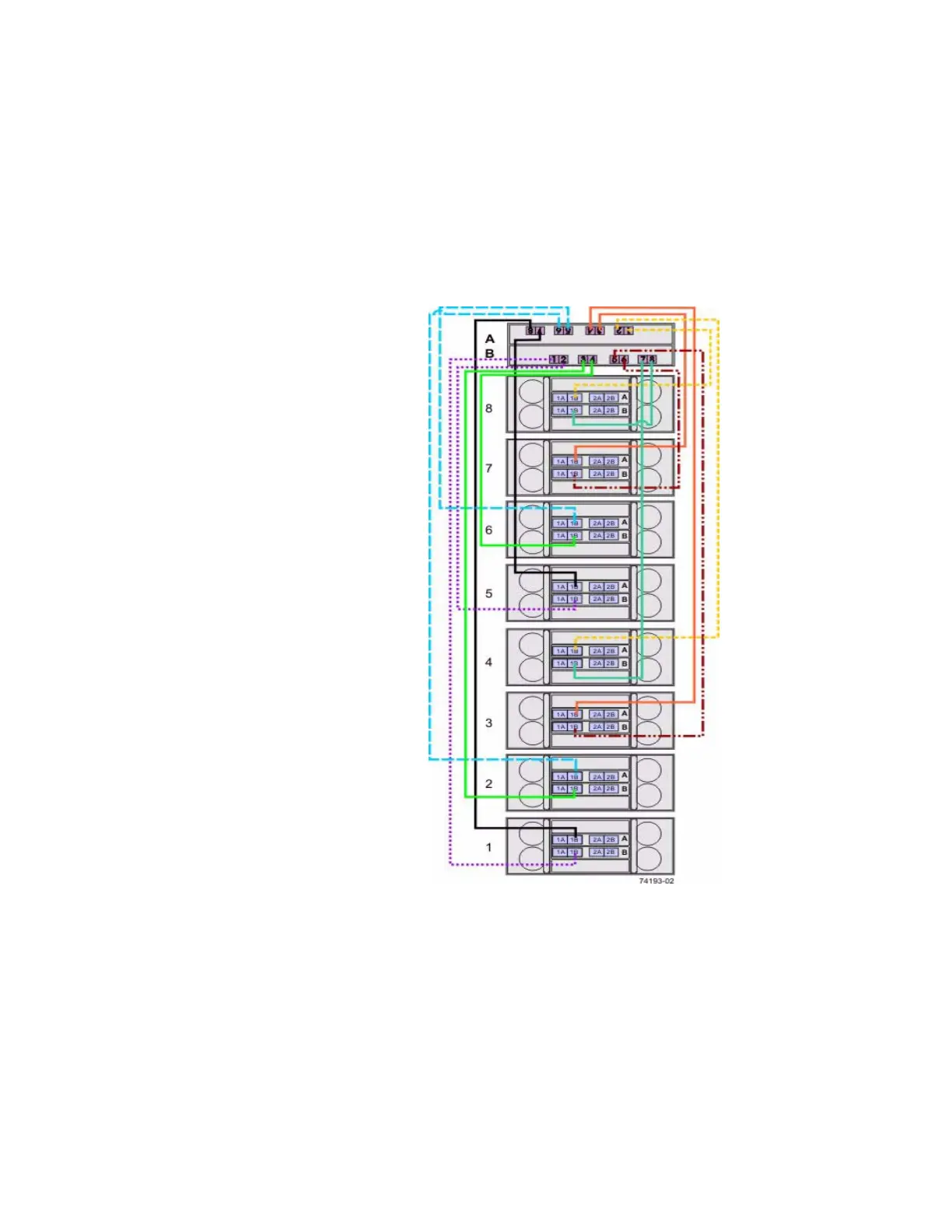

Figure 19 One CE7922 Controller Tray CE7900 Controller Tray and Eight
DE6
900
Drive Trays without Trunking
