NETGEAR GS108T - ProSafe - Gigabit Smart Switch User Manual

GS108T Smart Switch Software Administration Manual
1-4 Getting Started with Switch Management
v1.0, December 2007
6. Make a note of the displayed IP address assigned by the DHCP server. You will need this
value to access the switch directly from a Web browser (without using the Smart Wizard
Discovery utility).

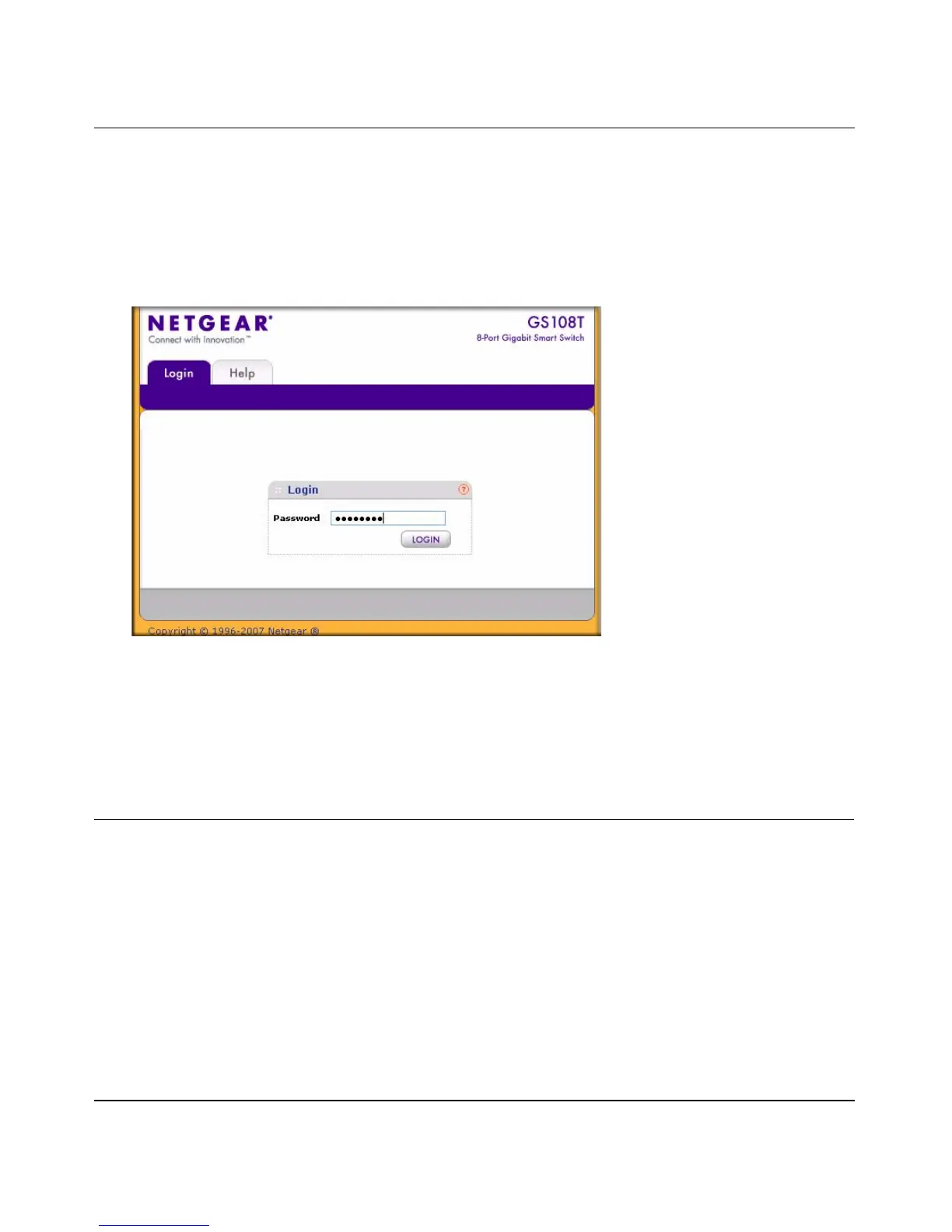

7. Select your switch by clicking the line that shows it. Then click the Web Access button. The
discovery utility displays a login window similar to the following:
.
Use your Web browser to manage your switch. The default password is password. Then use this
screen to proceed to management of the switch, as covered in
Chapter 2, “Introduction to the Web
Browser Interface.”
Network without a DHCP Server
This section describes how to set up your switch in a network without a DHCP server, and is
divided into the following tasks:
• Manually assign network settings for your switch.
• Configure the NIC settings on the host PC.
• Log in to the Web-based switch management utility.
Figure 1-2

NETGEAR GS108T - ProSafe - Gigabit Smart Switch Specifications

General

Model	GS108T
Product Line	ProSafe
Form Factor	Desktop
Power Supply	External Power Adapter
Layer	Layer 2
Switching Capacity	16 Gbps
Forwarding Rate	11.9 Mpps
PoE	No
Storage Temperature	-20 to 70°C (-4 to 158°F)
Humidity	10% to 90% non-condensing
Ports	8 x 10/100/1000
Management	Smart
MAC Address Table Size	8K entries
Remote Management Protocol	SNMP, RMON, HTTP, HTTPS
Features	VLAN support, QoS, IGMP snooping
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Operating Temperature	0 to 50°C (32 to 122°F)
Certifications	CE, FCC
Jumbo Frame Support	Supported, up to 9, 000 bytes
