NETGEAR GS108T - ProSafe - Gigabit Smart Switch User Manual

GS108T Smart Switch Software Administration Manual
Configuring Switching 4-23
v1.0, December 2007
To delete a static multicast ID:
a. Select the check box to the left of the static multicast ID that you want to remove.
b. Click Delete.
To change a Layer 2 multicast address:
a. Select the VID of the static multicast ID that you want to change.
b. Enter the new Layer 2 multicast address.
c. Click Apply.
Multicast Group Membership
To configure members for a multicast group:

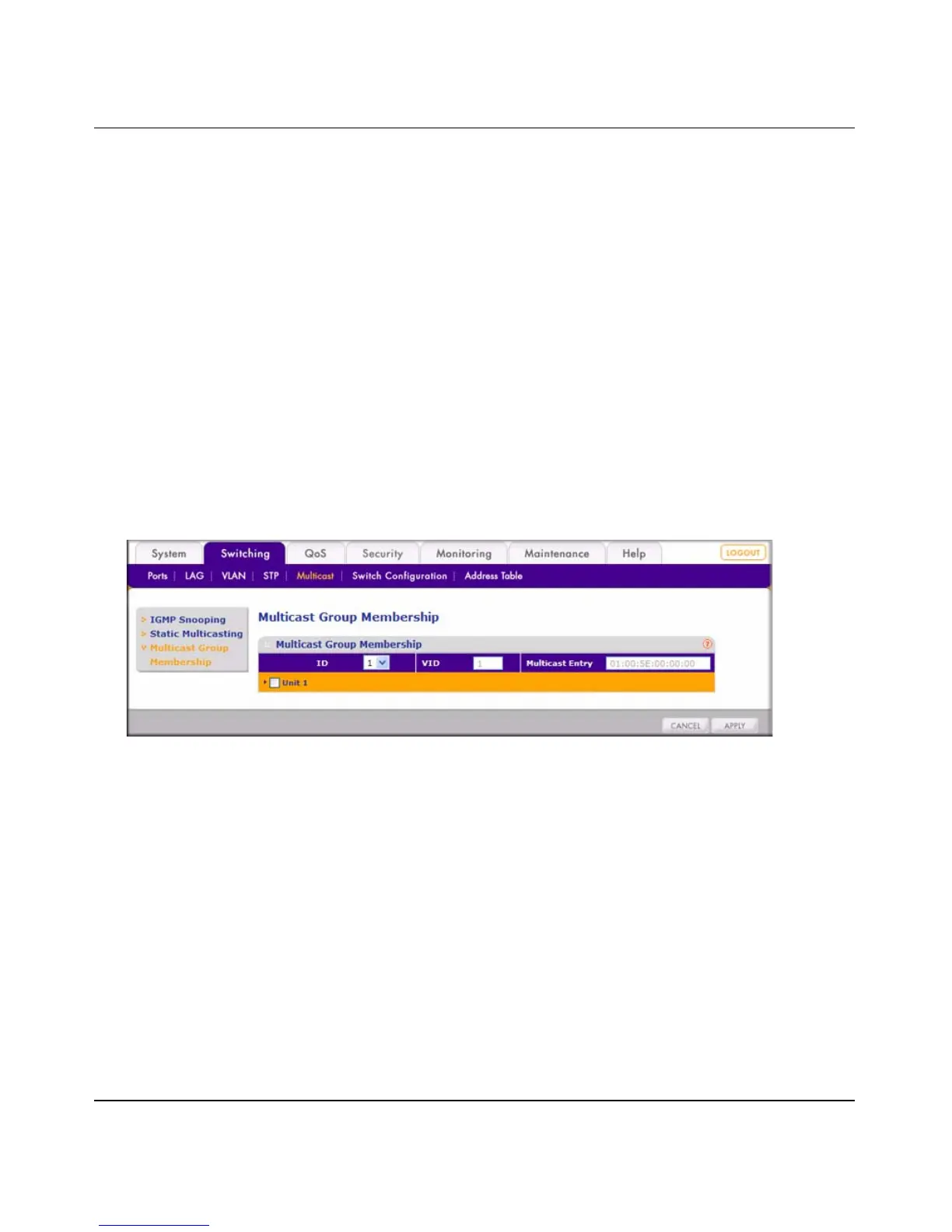

1. Select Switching > Multicast > Multicast Group Membership. A screen similar to the
following displays.
2. From the ID drop-down list, select the static multicast ID that represents the multicast group
that you want to view or modify. When you make your selection, the VID field and Multicast
Entry fields change automatically.
You can either assign all ports to or remove them from the static group in step 3, or assign
individual ports to or remove them from the static multicast group in step 4. These steps are
mutually exclusive.
3. To assign all ports to or remove them from the static multicast group, select the check box to
the left of Unit
1.
4. To assign individual ports to or remove them from the static multicast group:
a. Click Unit 1. A screen similar to the following displays.
Figure 4-19

NETGEAR GS108T - ProSafe - Gigabit Smart Switch Specifications

General

Model	GS108T
Product Line	ProSafe
Form Factor	Desktop
Power Supply	External Power Adapter
Layer	Layer 2
Switching Capacity	16 Gbps
Forwarding Rate	11.9 Mpps
PoE	No
Storage Temperature	-20 to 70°C (-4 to 158°F)
Humidity	10% to 90% non-condensing
Ports	8 x 10/100/1000
Management	Smart
MAC Address Table Size	8K entries
Remote Management Protocol	SNMP, RMON, HTTP, HTTPS
Features	VLAN support, QoS, IGMP snooping
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Operating Temperature	0 to 50°C (32 to 122°F)
Certifications	CE, FCC
Jumbo Frame Support	Supported, up to 9, 000 bytes
