GS108T Smart Switch Software Administration Manual
Getting Started with Switch Management 1-7
v1.0, December 2007
If you are starting with an “out-of-the-box” switch and are not using the Smart Wizard Discovery
utility, you must initially configure your host PC to be on a network segment to match the default
settings of the switch, which are as follows:
• IP address: 192.168.0.239
• Subnet mask: 255.255.255.0
Later, you might want to change the network settings to match those of your network (this
procedure is described in
“IP Configuration” on page 3-3). Your host PC network settings must
then also be set back to match your network.

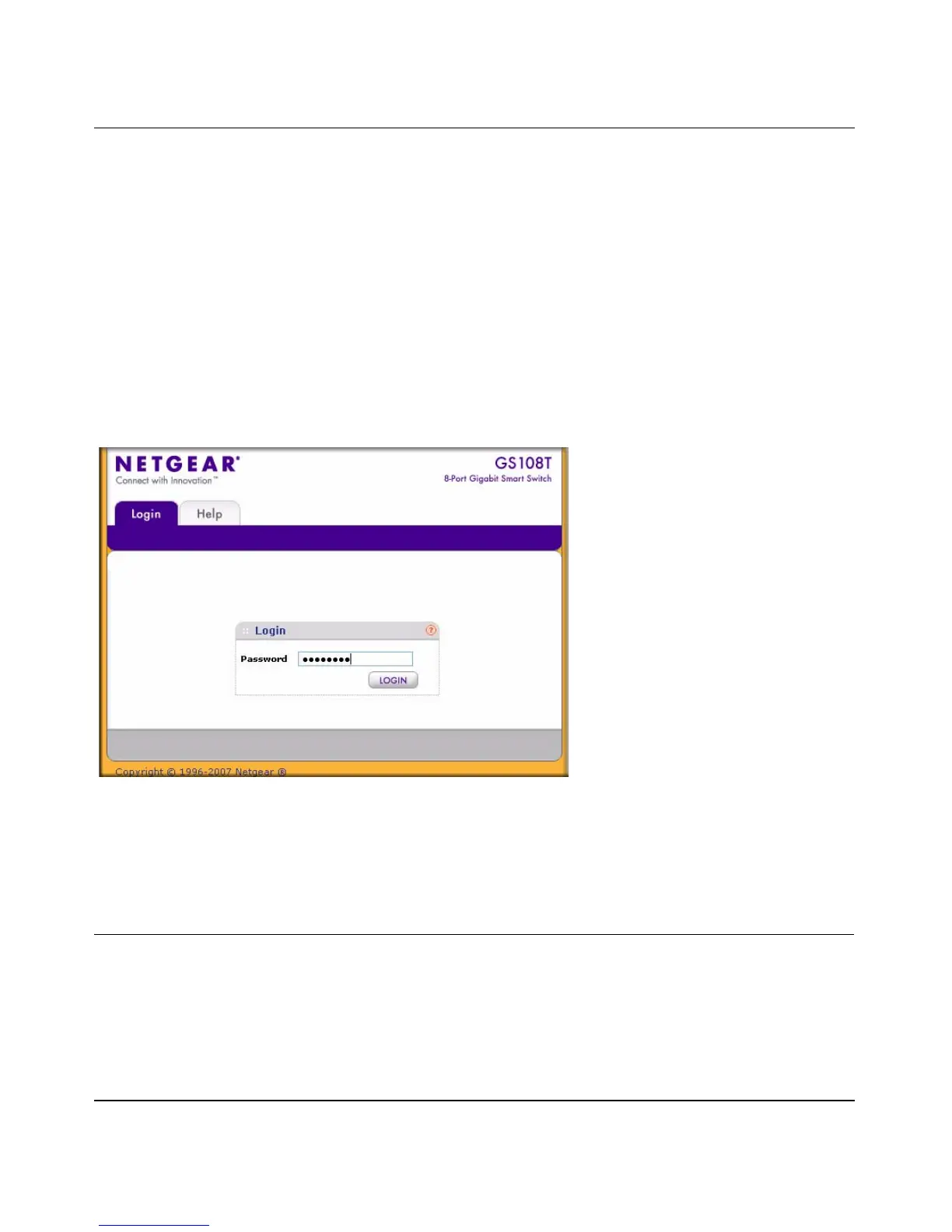

Clicking Web Access on the Smart Wizard Discovery utility or accessing the switch directly
displays the following screen.
.
Use this screen to proceed to management of the switch, as covered in Chapter 2, “Introduction to
the Web Browser Interface.”
Additional Utilities
Alternatively, from the main screen shown in Figure 1-1 on page 1-3 you can access additional
functions as described in the following sections:
• “Password Change”
• “Firmware Upgrade”
Figure 1-5

NETGEAR GS108T - ProSafe - Gigabit Smart Switch Specifications

General

Model	GS108T
Product Line	ProSafe
Form Factor	Desktop
Power Supply	External Power Adapter
Layer	Layer 2
Switching Capacity	16 Gbps
Forwarding Rate	11.9 Mpps
PoE	No
Storage Temperature	-20 to 70°C (-4 to 158°F)
Humidity	10% to 90% non-condensing
Ports	8 x 10/100/1000
Management	Smart
MAC Address Table Size	8K entries
Remote Management Protocol	SNMP, RMON, HTTP, HTTPS
Features	VLAN support, QoS, IGMP snooping
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Operating Temperature	0 to 50°C (32 to 122°F)
Certifications	CE, FCC
Jumbo Frame Support	Supported, up to 9, 000 bytes
