Manage Device Security
293
ProSAFE 10-Gigabit Smart Managed Switch XS728T and XS748T User Manual

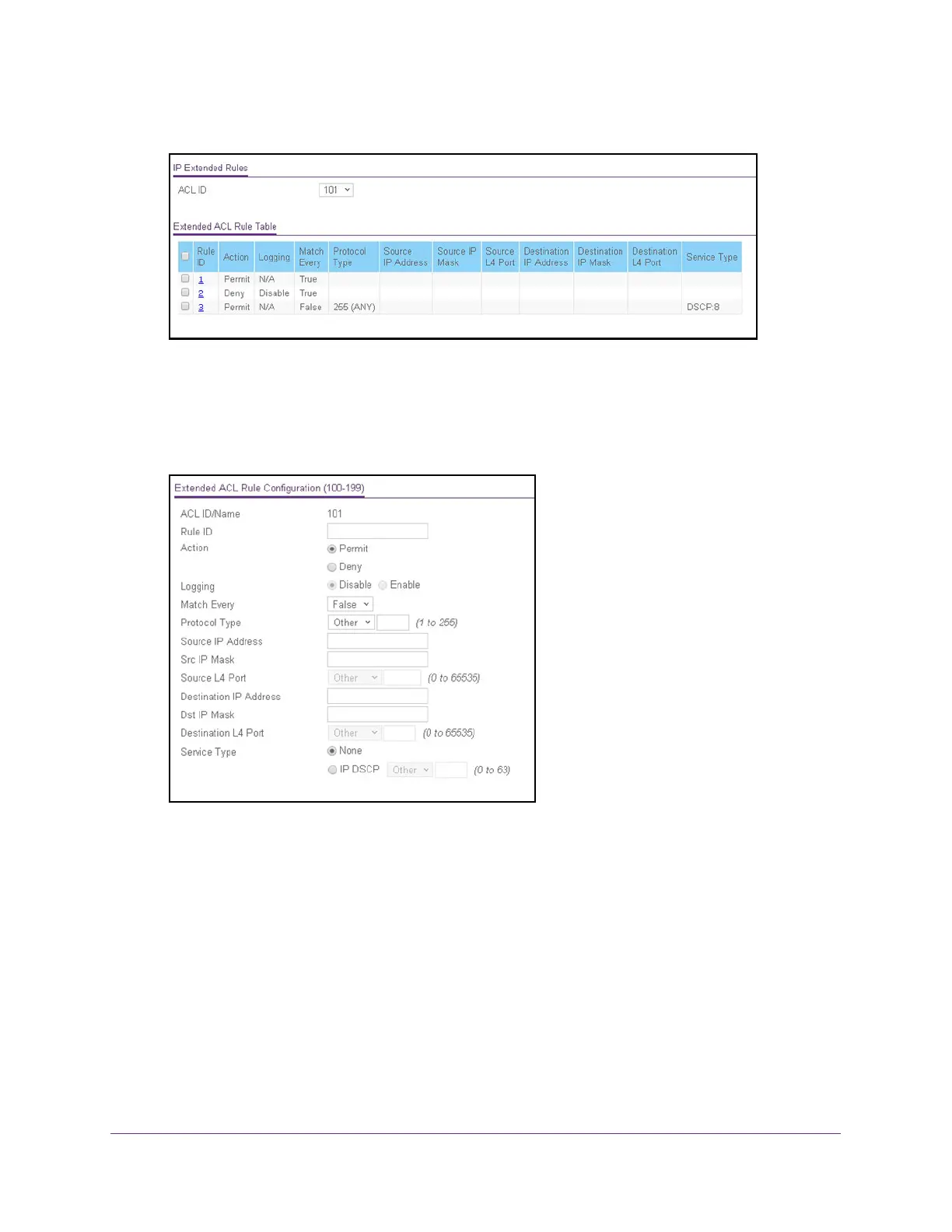

The following figure does not show all columns.
If one or more rules exist for the ACL, the rules display in the Extended ACL Rule Table.
6. From the ACL ID/Name menu, select the IP ACL for which you want to add a rule.
For extended IP ACLs, this must be an ID in the range from 101 to 199.
7. Click the Add button.
8. Configure the following match criteria for the rule:
• Rule ID. Enter a whole number in the range of 1 to 50 that is used to identify the rule.
An extended IP ACL can contain up to 50 rules.
• Action. Select the ACL forwarding action, which is one of the following:
- Permit. Forward packets that meet the ACL criteria.
- Deny. Drop packets that meet the ACL criteria.
• Logging. If the selection form the Action menu is Deny, you can enable logging for
the ACL by selecting the Enable radio button. (Logging is subject to resource
availability in the device.)
If the access list trap flag is also enabled, periodic traps are generated, indicating the
number of times this rule was evoked during the report interval. A fixed five-minute
To Next Page
