7. NW6060 VHF / Audio Interface
7.1 General
The NW6060 VHF/ Audio-interface allows interfacing functions for up to two VHF audio channels.
This primary function serves to gather audio (line-in) information from the VHF communications
equipment. characteristics.
Location and mounting
This interface may be placed in a protected environment at a location most practical to realize the
connections.
7.2 Power supply
This is powered using PoE.
7.3 Connections

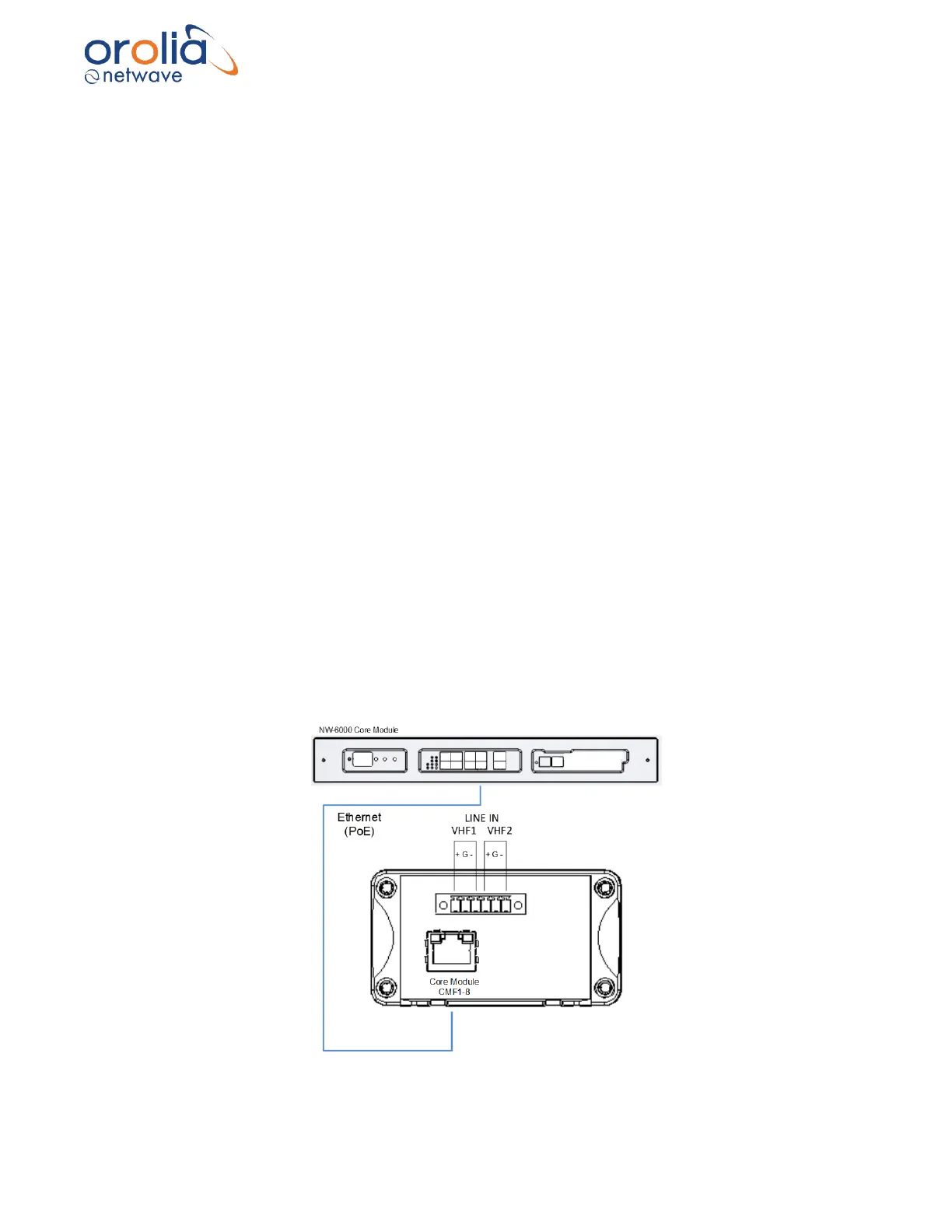

1. The NW6060 VHF / Audio Interface is connected to any of the PoE ports on the Core
Module Core Module (CMF 1-8) by means of an Ethernet cable.
2. The NW6060 VHF / Audio Interface is connected to the VHF equipment by means of the
VHF1 & 2 (line level) ports as follows:
