10.11 Video Configuration Suite (VCS2) Application
The Video Configuration Suite (VCS2) application is used to detect and adjust images to be
captured by the Video Module. It has a built-in Auto Detection routine which detects many of the
necessary parameters for the <VidChanX.ini> files. Existing <VidChanX.ini> files can also be
directly modified within this application.

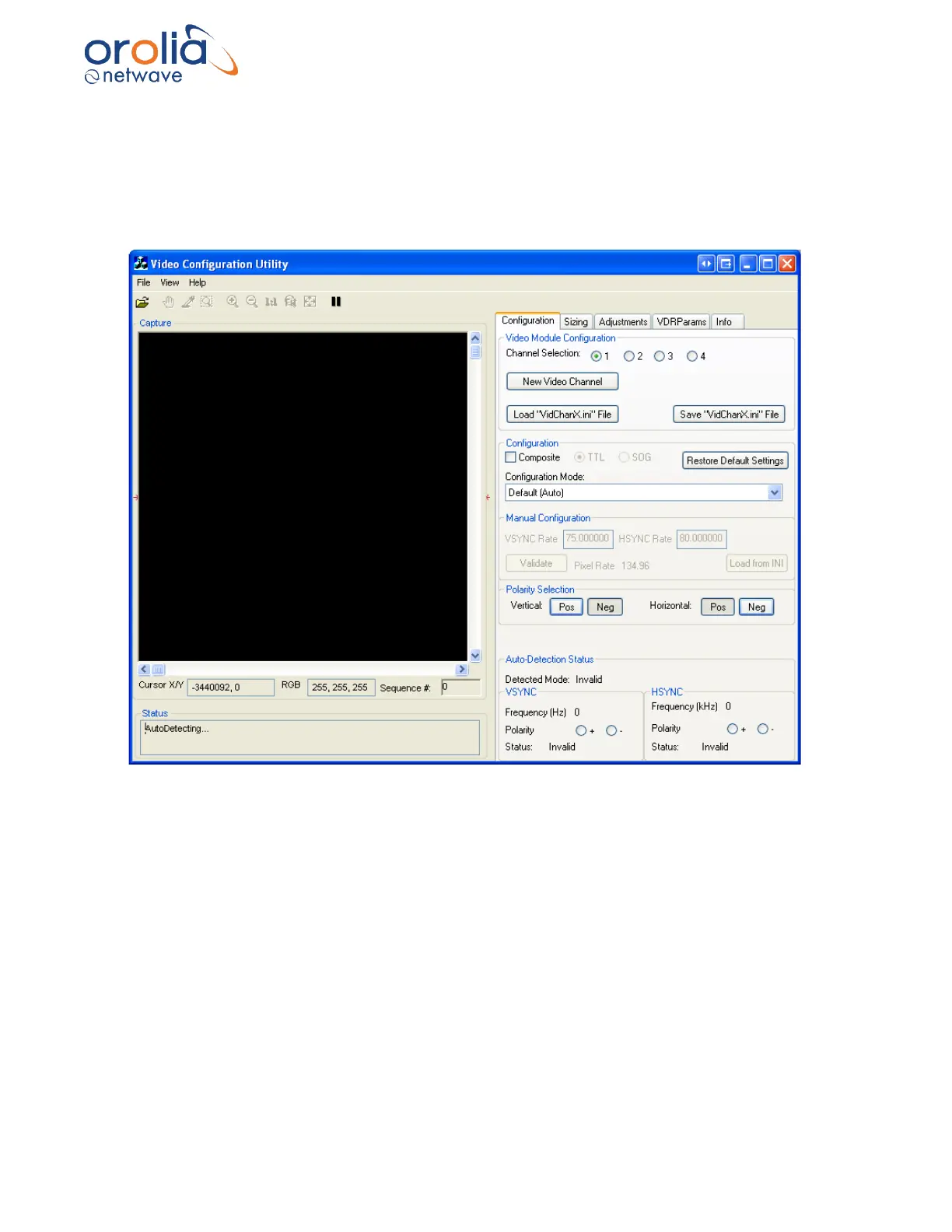

Figure 10.11.1 - Video Configuration Utility User Interface
Additional information:
▪ Maximum image height is 4095 pixels and maximum width is 2047 pixels.
▪ Maximum image size is 2062500 samples, which can accommodate images up to
1650x1250.
