10.19 Interleaved Image
If the captured image has a resolution of 1600 x 1200 pixels or greater, it may appear repeated
within the Capture window as below. To correct this image, it must be properly interleaved.
Complete the following steps:

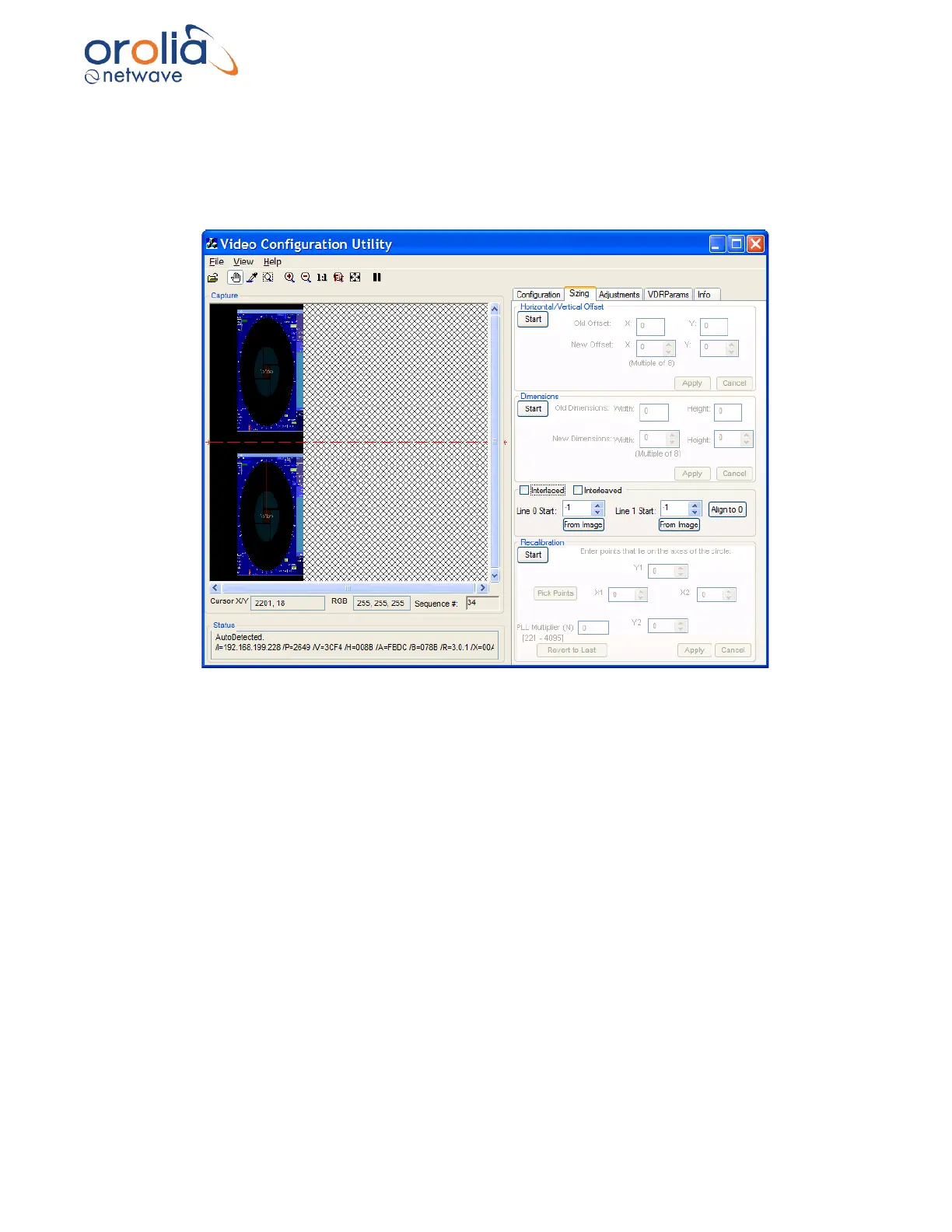

Figure 10.19.1 - Interleaved capture
1. Click the Sizing tab to open the Sizing page.
2. Click the Start button in the Horizontal/Vertical Offset section.
3. Use the New Offset X scroll box and Y scroll box to change the horizontal and vertical offsets
to move the image as close to the top left hand corner of the Capture window as possible,
as given above in the Offset adjustment section.
4. With the image in place, and using the Zooming options, determine the top edge of both
images. Click the “From Image” under Line 0 Start to select the uppermost pixel for the top
image and click the “From Image” under Line 1 Start to select the top edge for the bottom
image.
Note: Line 0 Start should usually be left at 0 and Line 1 Start should be adjusted.
