13 DISMANTLING AND ASSEMBLY
OF SPECIAL UNITS
PAGE
13.7
■ Mounting snap elbow (4710):
■ Where a snap elbow (4710) is folded down, please unfold by simultaneously
undoing both hooks at (A) with the help of two screw drivers.
■ Snap elbow (4710) may now be slipped over the cable and screwed into spacer
piece (0150).
■ Slip the screwed cable gland over the cable and tighten it while the cable is
straight so that the cable is fixed in the seal rubber.
■ Snap the elbow part (4710) shut with hooks (A) closed on both sides.
▲ The temperature controller can be installed in a switchboard.
For installation dimensions pl. see Technical Data in section 2.
4.3 Small Stators with Diameter (Ø) d ≤ 71 mm and d > 27 mm
The stators are delivered with a temperature conduit (4570) already built-in.
Stator ( 3005) installation into NEMO
®
pump must be carried out that sensor conduit
(4570) comes on stator suction side.

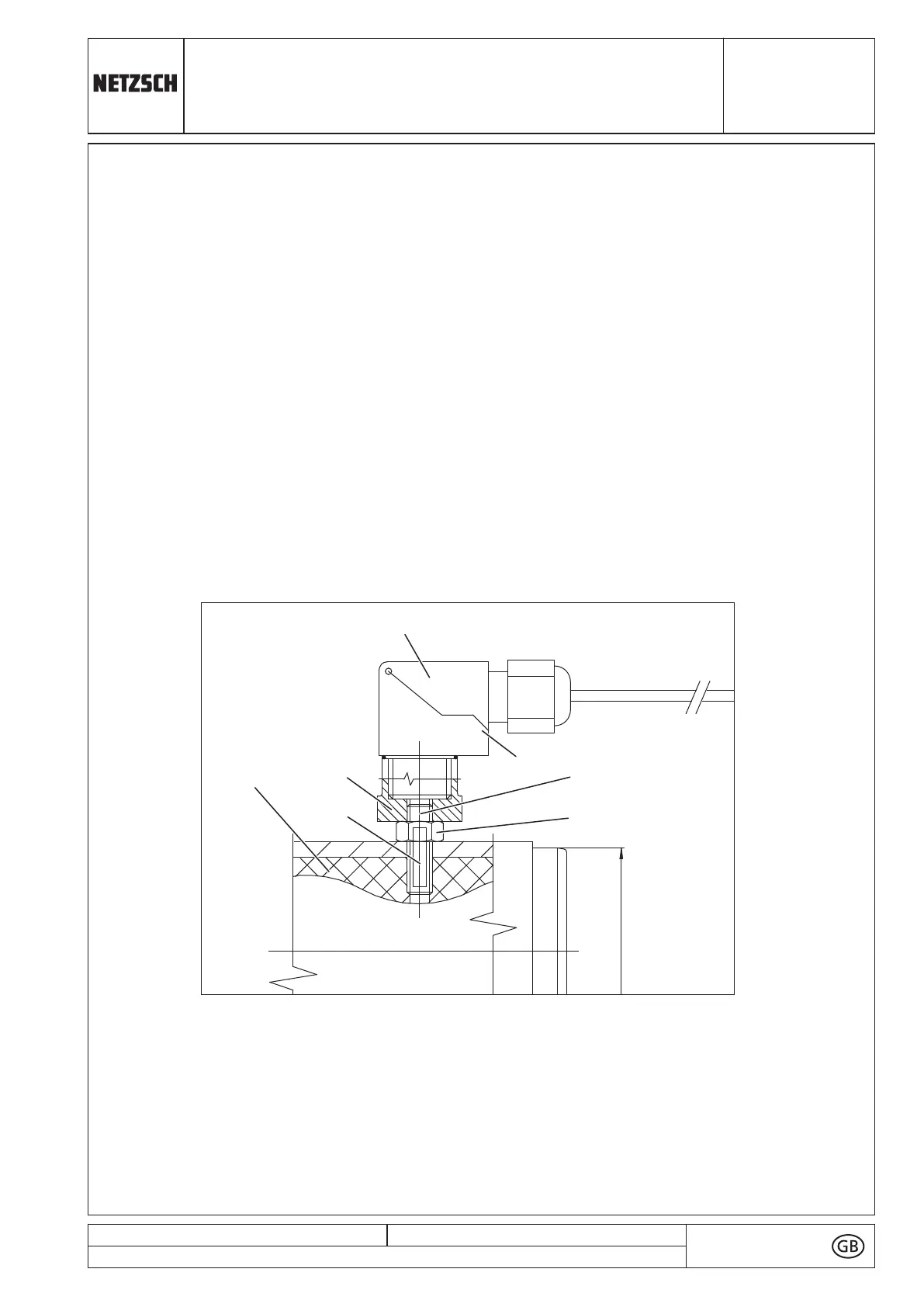

Fig. 2: Installation in d ≤ 71 mm and d < 27 mm diameter stators
issued: 14.10.2019
Revision: 23
text no.
13105-3/8
copy to:
¬D
!
87
