13 DISMANTLING AND ASSEMBLY
OF SPECIAL UNITS
PAGE
13.8
4.4 Large Stators with Diameter (Ø) d ≥ 86 mm
The stators are delivered with a temperature conduit (4570) already built-in.
Stator ( 3005) installation into NEMO
®
pump must be carried out that sensor conduit
(4570) comes on stator suction side.

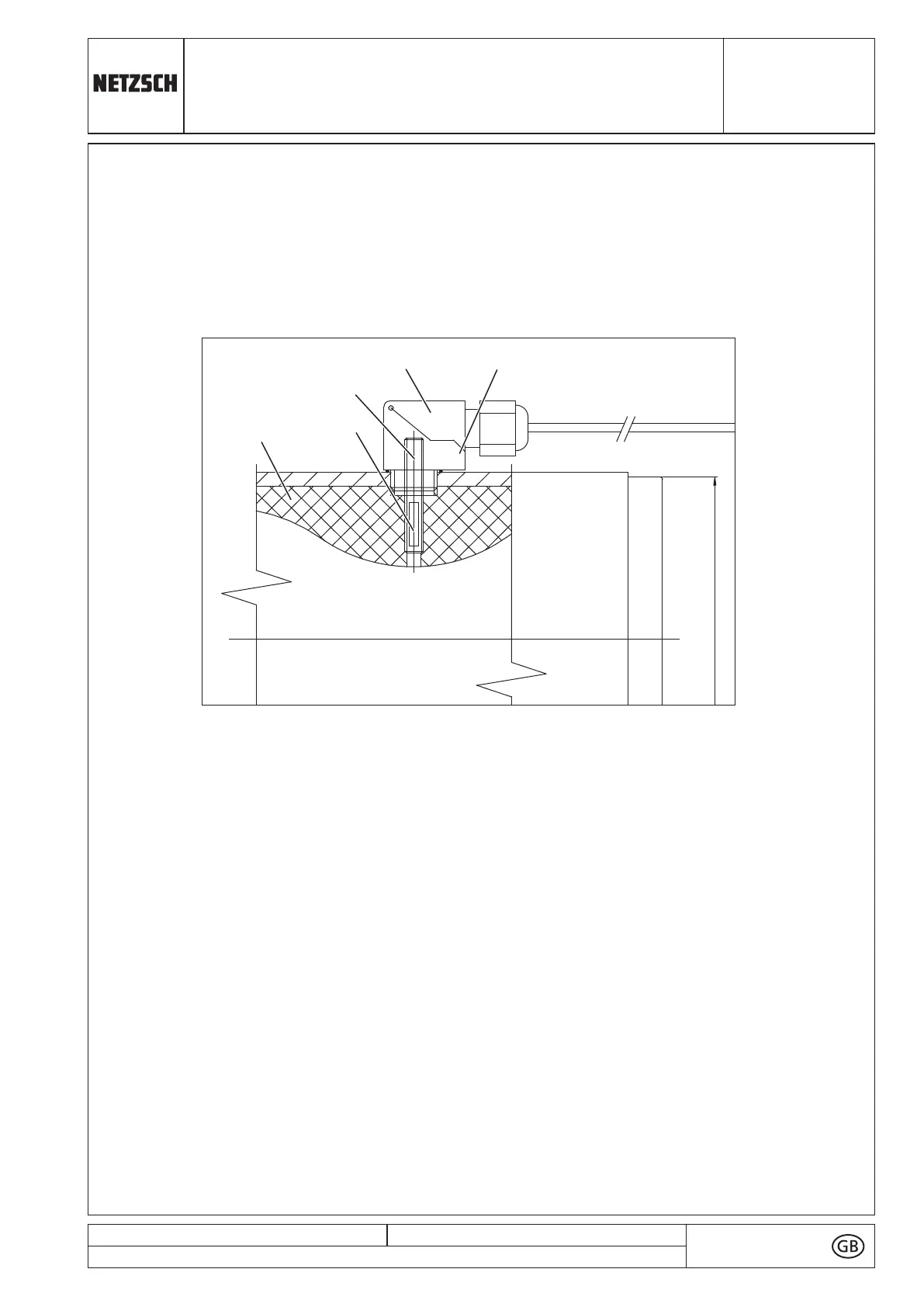

Fig. 3: Installation in d ≥ 86 mm diameter stators
■ Apply some heat transfer paste to the sensor conduit (4570).
■ Mounting snap elbow (4710):
■ Where a snap elbow (4710) is folded down, please unfold by simultaneously
undoing both hooks at (A) with the help of two screw drivers.
■ Screw he snap elbow (4710) into the stator thread (3005) and loosen the screwed
cable gland.
■ Insert the temperature sensor (4180) through the screwed cable gland down to the
bottom into the sensor conduit (4570).
■ Tighten the screwed cable gland while the cable is straight so that the cable is
fixed in the seal rubber.
■ Snap the elbow part (4710) shut with hooks (A) closed on both sides.
▲ The temperature controller can be integrated into a switch board.
For installation dimensions pl. see Technical Data in section 2.
issued: 14.10.2019
Revision: 23
text no.
13105-4/8
