13 DISMANTLING AND ASSEMBLY
OF SPECIAL UNITS
PAGE
13.9
issued: 14.10.2019
Revision: 23
text no.
13105-5/8
copy to:
iFD-Stators
®
2.0
The stators are delivered with a temperature conduit (4570) already built-in.
■ If present: disassemble snap elbow (4710)
(for iFD-Stators
®
2.0 only the temperature sensor is needed).

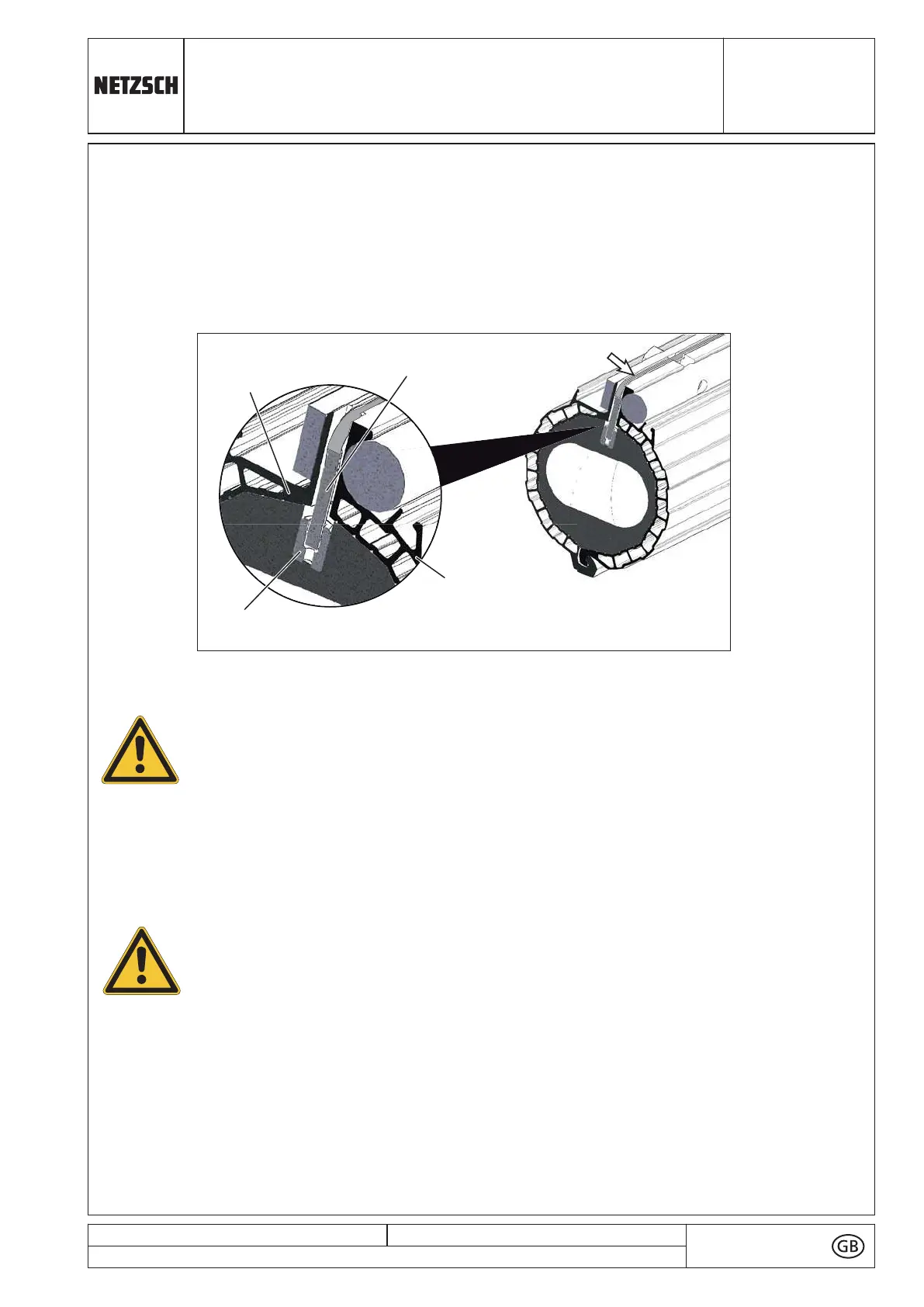

Fig. 5: Installation in iFD-Stators
®
2.0
■ Fill the sensor conduit (4570) about half with heat transfer paste.
■ Push the temperature sensor (STP-2A) through the milled cut-out between upper
shell (3001) and lower shell (3002) into the sensor protection tube as far as the limit
stop.
■ Connect the cable of the STP-2A into the groove between upper shell (3001) and
lower shell (3002) (see arrow).
3001
STP-2A
4570
NOTE
The easiest way to do this is when the upper shell (3001) and lower shell (3002)
have not yet been fitted.
NOTE
For STP-2A in ATEX version:
Adjust the STP-2A cable diameter by an appropriate means (e.g. adhesive tape) to
the diameter required to secure it firmly.
91
