NISE 104 User Manual
Chapter 2: Jumpers and Connectors

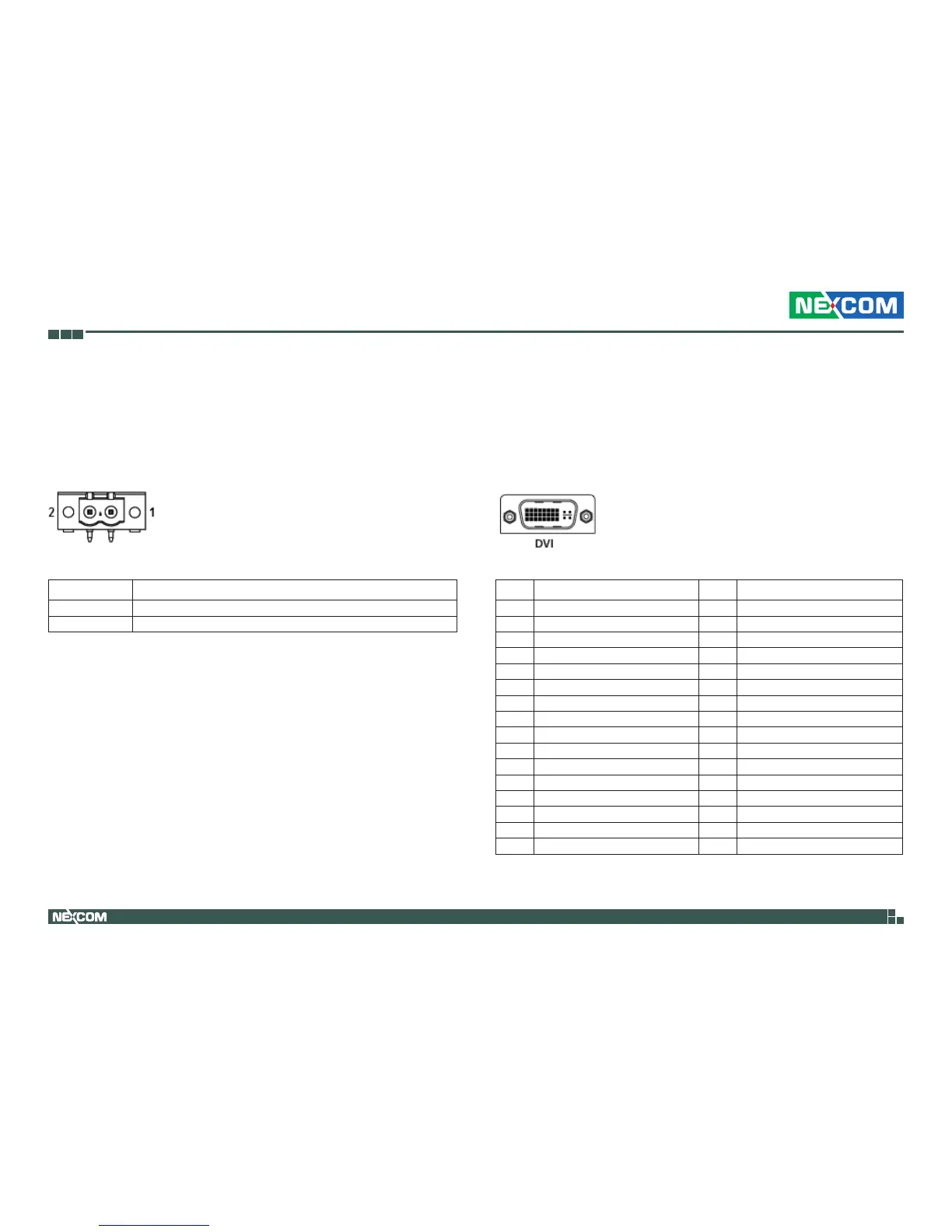

External I/O Interfaces – Rear Panel
9~36V DC Power Input
Connector type: Phoenix 1x2 2-pin
Connector location: CN3
DVI-I/VGA Connector
Connector type: 24-pin D-Sub, 2.0mm-M-180 (DVI)
Connector location: CN4A (DVI) and CN4B (VGA)
Pin Definition
1 GND
2 VIN+
Pin Definition Pin Definition
1 TX2 2 TX2+
3 GND 4 NC
5 NC 6 DDC_CLK
7 DDC_DATA 8 VSYNC_VGA
9 TX1- 10 TX1+
11 GND 12 NC
13 NC 14 DVI_VCC(+5V)
15 GND 16 HotPlugDet
17 TX0- 18 TX0+
19 GND 20 DDCCLK_VGA
21 DDCDATA_VGA 22 GND
23 TXCLK+ 24 TXCLK-
C1 RED C2 GREEN
C3 BLUE C4 HSYNC_VGA
C5A VGADET C5B GND
MH1 CHASSIS_GND MH2 CHASSIS_GND
