NISE 104 User Manual
Chapter 2: Jumpers and Connectors

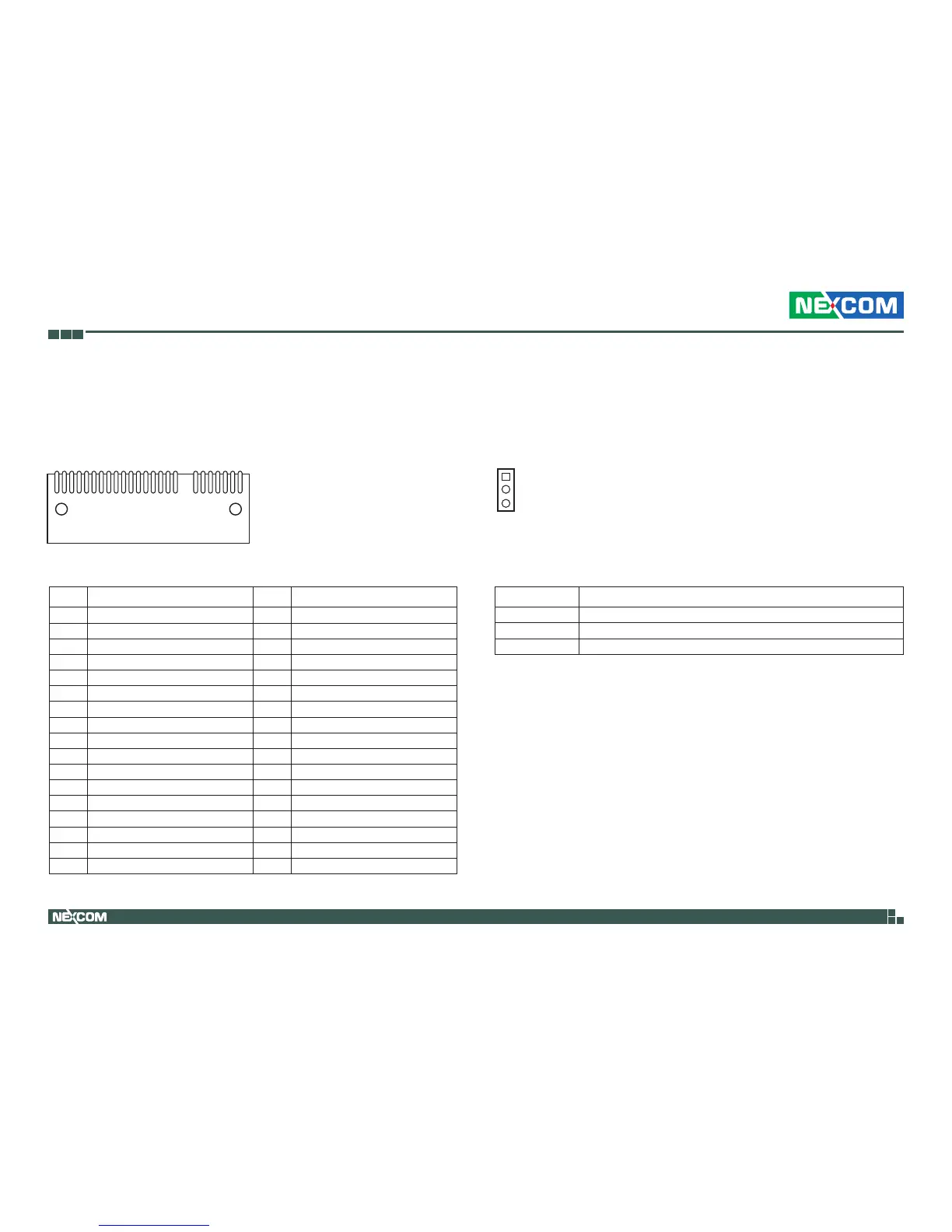

CFast CON
Connector type: CFast socket
Connector location: CN9
S7
Pin Definition Pin Definition
S1 GND PC1 CDI
S2 SATA_TXP1 PC2 GND
S3 SATA_TXN1 PC3 NC
S4 GND PC4 NC
S5 SATA_RXN1 PC5 NC
S6 SATA_RXP1 PC6 NC
S7 GND PC7 GND
PC8 NC
PC9 CFAST_ACCESS
PC10 NC
PC11 NC
PC12 NC
PC13 +3.3V
PC14 +3.3V
PC15 GND
PC16 GND
PC17 NC
3.5G Mic-in Pin Header
Connector type: 1x3 3-pin header, 2.54mm pitch
Connector location: JP3
Pin Definition
1 MIC_RL
2 MIC_RR
3 ANGND
1
3
