NISE 104 User Manual
Chapter 2: Jumpers and Connectors

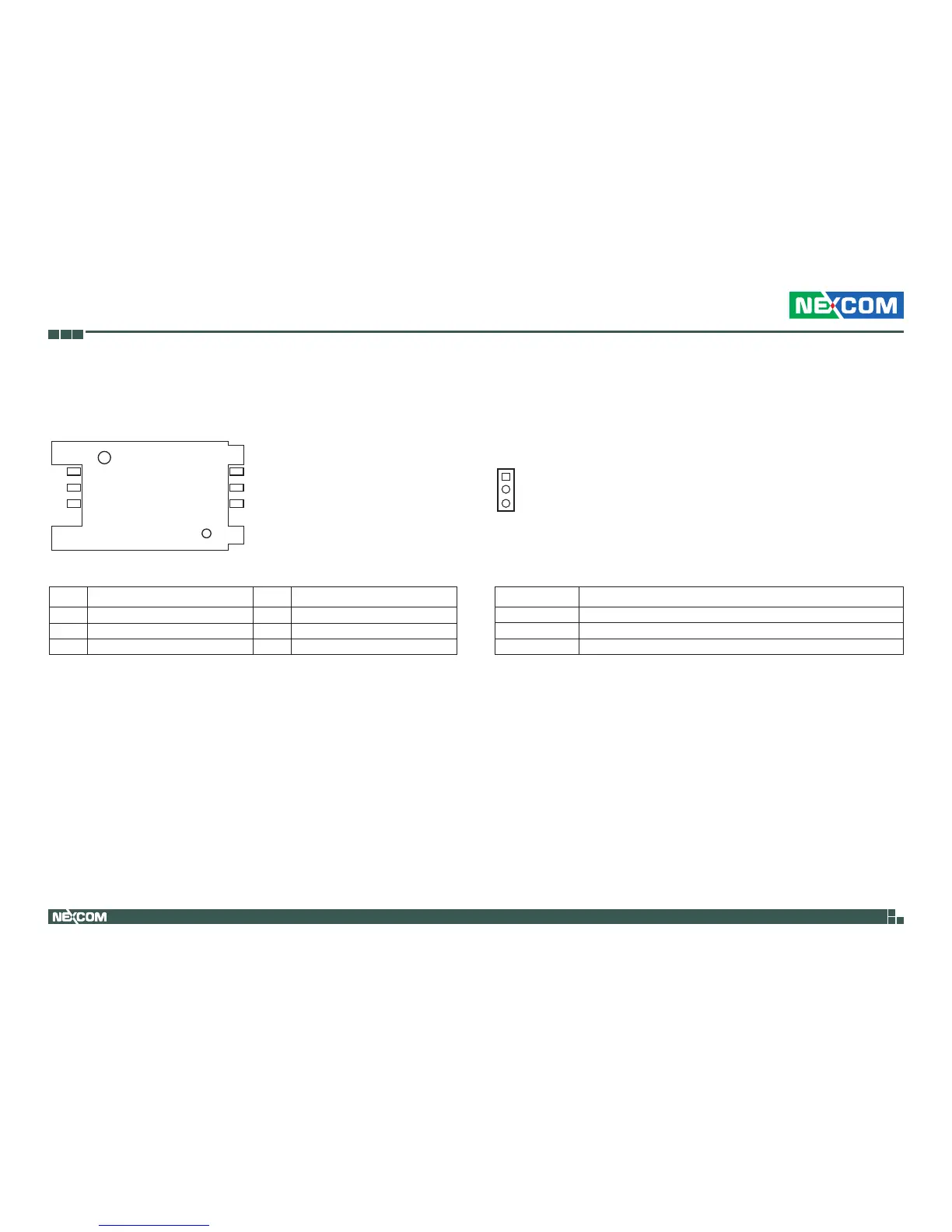

3.5G Line-out Pin Header
Connector type: 1x3 3-pin header, 2.54mm pitch
Connector location: JP2
Pin Definition
1 LOUT_RL
2 LOUT_RR
3 ANGND
SIM Card Connector
Connector location: CN7
C1
C6
C5
C3
C2
C1
1
3
Pin Definition Pin Definition
C1 UIM_PWR C2 UIM_RESET
C3 UIM_CLK C4 GND
C5 UIM_VPP C6 UIM_DATA
