NISE 104 User Manual

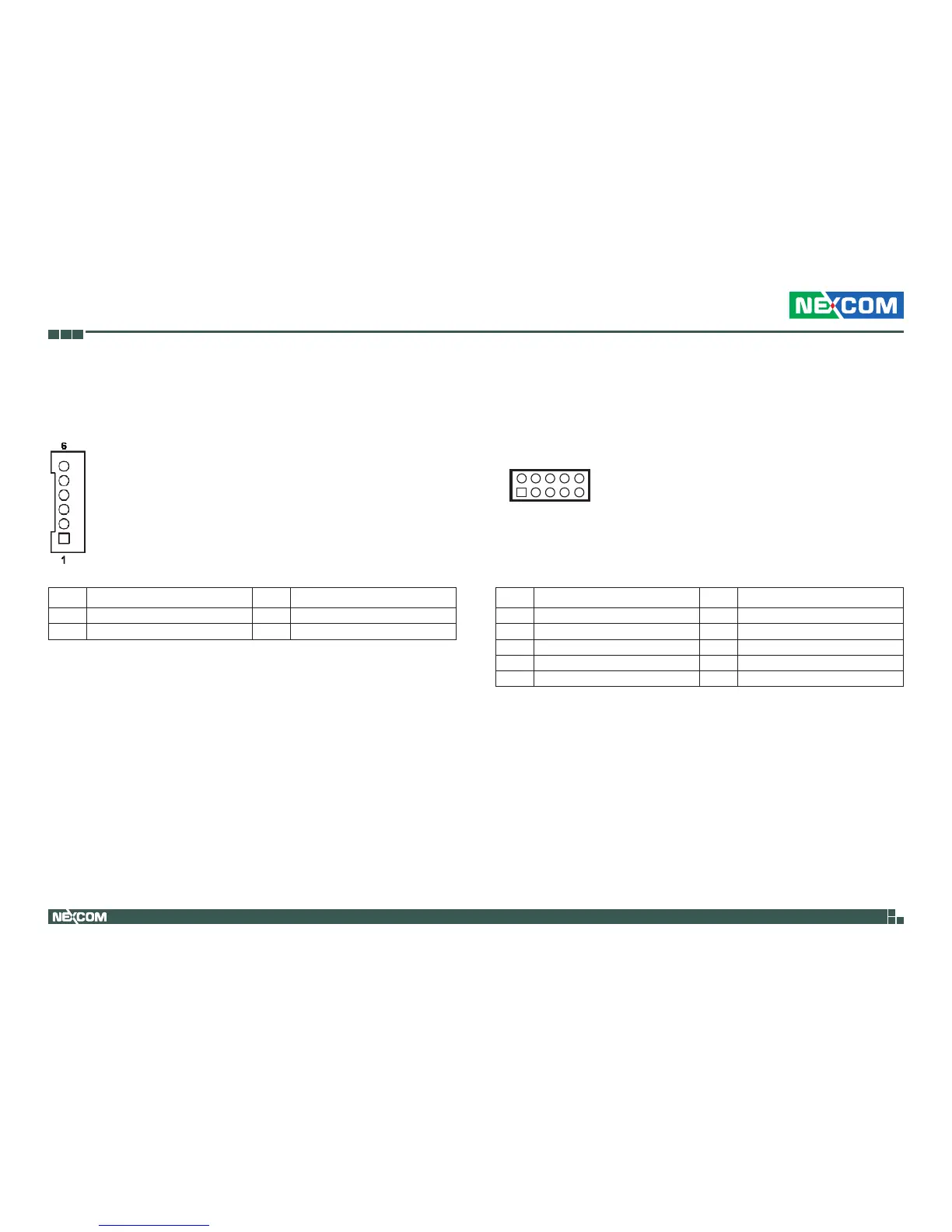

Chapter 2: Jumpers and Connectors
DC Input/Output Connector
Connector type: 1x4 JST, 4-pin, 2.5mm pitch
Connector location: CN2
1
4
Pin Definition Pin Definition
1 VIN 2 VIN
3 GND 4 GND
GPIO Connector
Connector type: 2x5 10-pin header, 2.0mm pitch
Connector location: JP9
Pin Definition Pin Definition
1 +5V 2 GND
3 SIO_GPO24(Pin58) 4 SIO_GPI20(Pin52)
5 SIO_GPO25(Pin59) 6 SIO_GPI21(Pin54)
7 SIO_GPO26(Pin60) 8 SIO_GPI22(Pin56)
9 SIO_GPO27(Pin61) 10 SIO_GPI23(Pin57)
