NISE 104 User Manual

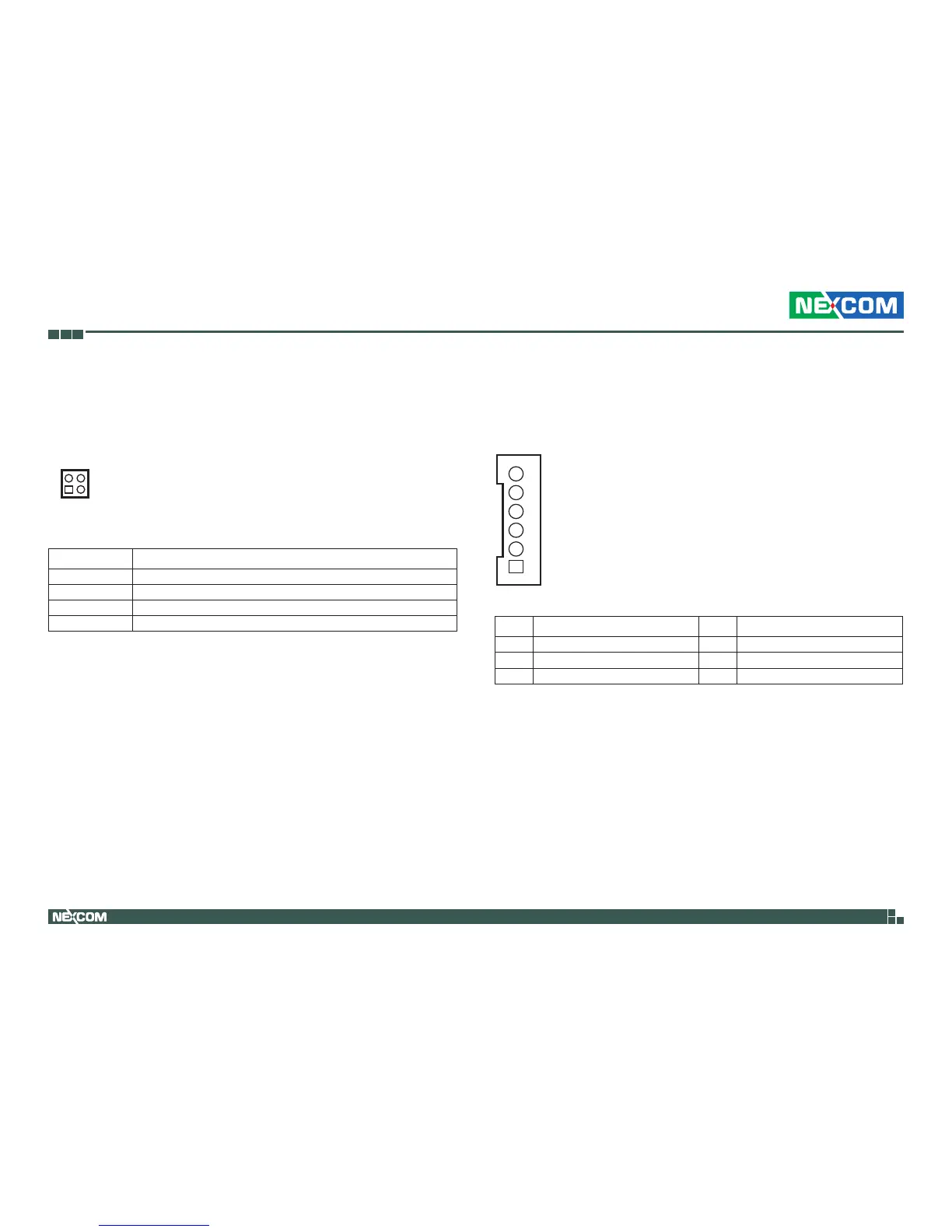

Chapter 2: Jumpers and Connectors
LAN2 LED
Connector type: 2x2 4-pin header, 2.0mm pitch
Connector location: JP5
Pin Definition
1 LAN2_ACTPW
2 LAN2_LEDACT#
3 LAN2_LINK1G#
4 LAN2_LINK
1
2 4
3
USB 6 Connector
Connector type: 1x6 6-pin header, 2.0mm pitch
Connector location: J2
1
6
Pin Definition Pin Definition
1 +5V 2 Data 6-
3 Data 6+ 4 NC
5 NC 6 GND
