Installing a Wireless LAN Module
1.Locate the Mini PCI Express slot on the motherboard. 2.Insert the wireless LAN module into the Mini PCI Express slot at a 45
degrees angle until the gold-plated connector on the edge of the module
completely disappears inside the slot.

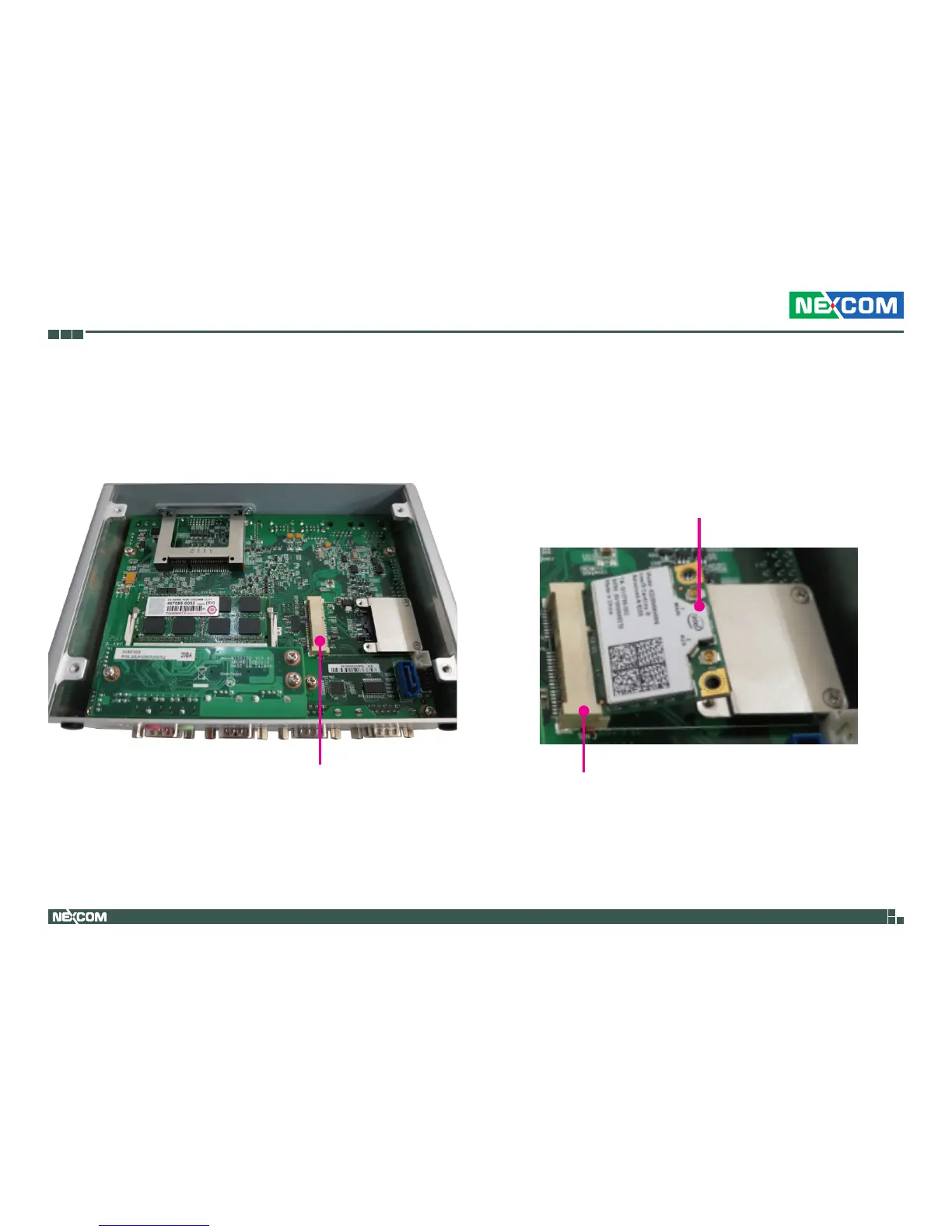

Mini PCI Express Slot
Mini PCI Express Slot
Wireless LAN Module
