NISE 104 User Manual

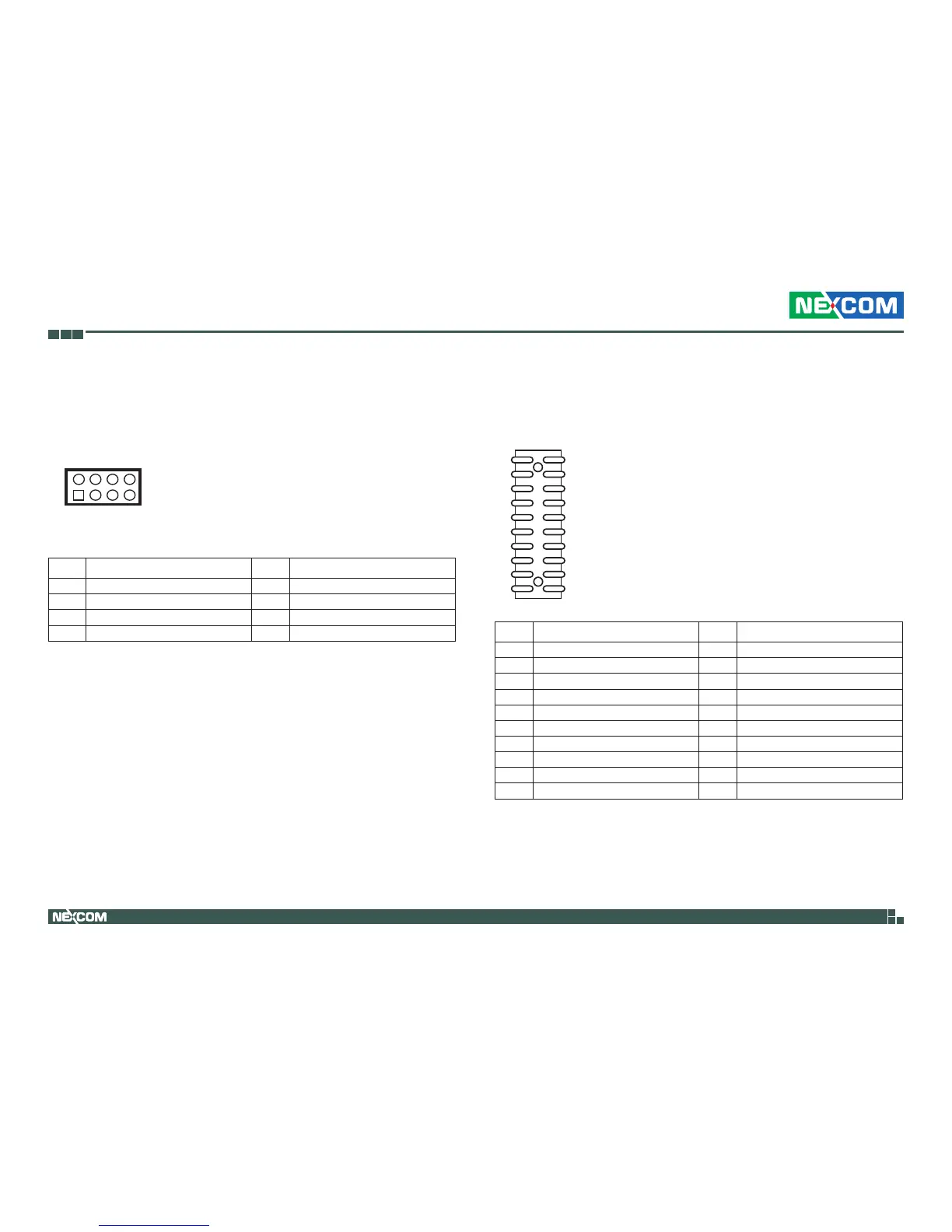

Chapter 2: Jumpers and Connectors
Keyboard/Mouse Connector
Connector type: 2x4 8-pin header, 2.54mm pitch
Connector location: JP7
1
7
82
Pin Definition Pin Definition
1 KBMSVCC 2 KBMSVCC
3 LKBDAT 4 LMDAT
5 LKBCLK 6 LMCLK
7 GND 8 GND
B to B Connector
Connector type: 2x10 20-pin header
Connector location: JP10
12
1920
Pin Definition Pin Definition
1 VCC5 2 VCC5
3 I_USBN5 4 I_USBN4
5 I_USBP5 6 I_USBP4
7 GND 8 GND
9 I_USBOC#45 10 VCC3
11 HDD_LED_PWR 12 POWER_LED_PWR
13 HDD_LED_N 14 PWR_LED_N
15 CODEC_HDASYNC 16 CODEC_HDASDO
17 CODEC_HDARST# 18 CODEC_HDABCLK
19 I_SPKR 20 I_HDASDI0
