Nexx X-COM2 - Page 9

9
English
X-COM2
3 4
Battery

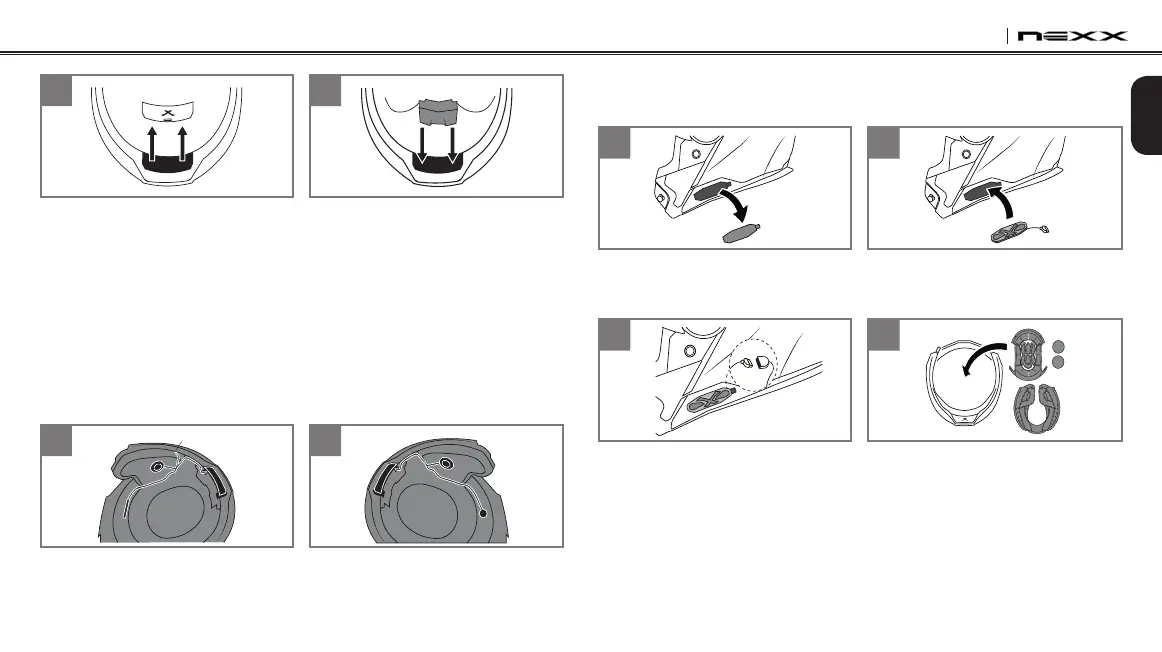

5. Place Headset Connection in a position where it can be connected
to the main unit. Place the antenna on the front of the helmet as
shown. Place the speakers in the helmet along with the hook
and loop fasteners, up to your ears in the helmet ear holes. If the
helmet has deep ear holes, you can use the speakers closer to
your ears.
6. For the wired microphone attach the hook and loop fastener
inside the chin protector of full-face helmets. Place the wired
microphone in the hook and loop fastener.
5
Headset Connection
Speaker
Antenna
Battery
6
Speaker
Microphone
Battery
7. Remove the cover that protects the cavity for the main unit.
8. Place the main unit in the prepared cavity.
7 8
9. Plug the main unit to the 6-pin of the battery.
10. Install the inner parts inside the helmet.
9 10
