4.9 Burst Setting and Manipulation
121
WF1973/WF1974
signal for the oscilloscope.
i) To execute oscillation in half-cycle units: Set oscillation stop unit to half cycle
To stop oscillation in half-cycle units, set [OscStop] (oscillation stop unit) on the 2nd page of
the setting screen to [HalfCycle] (half cycle). Normally [Cycle] (1 cycle) is set. When [Cycle]
(1 cycle) is set, oscillation is done in integer cycles. ) p. 116
j) Usage of stop level
The level when oscillation is stopped is normally set with the oscillation start/stop phase,
but it can also be set independently from that with a proportion of the amplitude full scale.
Set [StpLvl] (stop level) on the 2nd page of the setting screen to [On] (on) and set the level
with a % value. ) p. 112

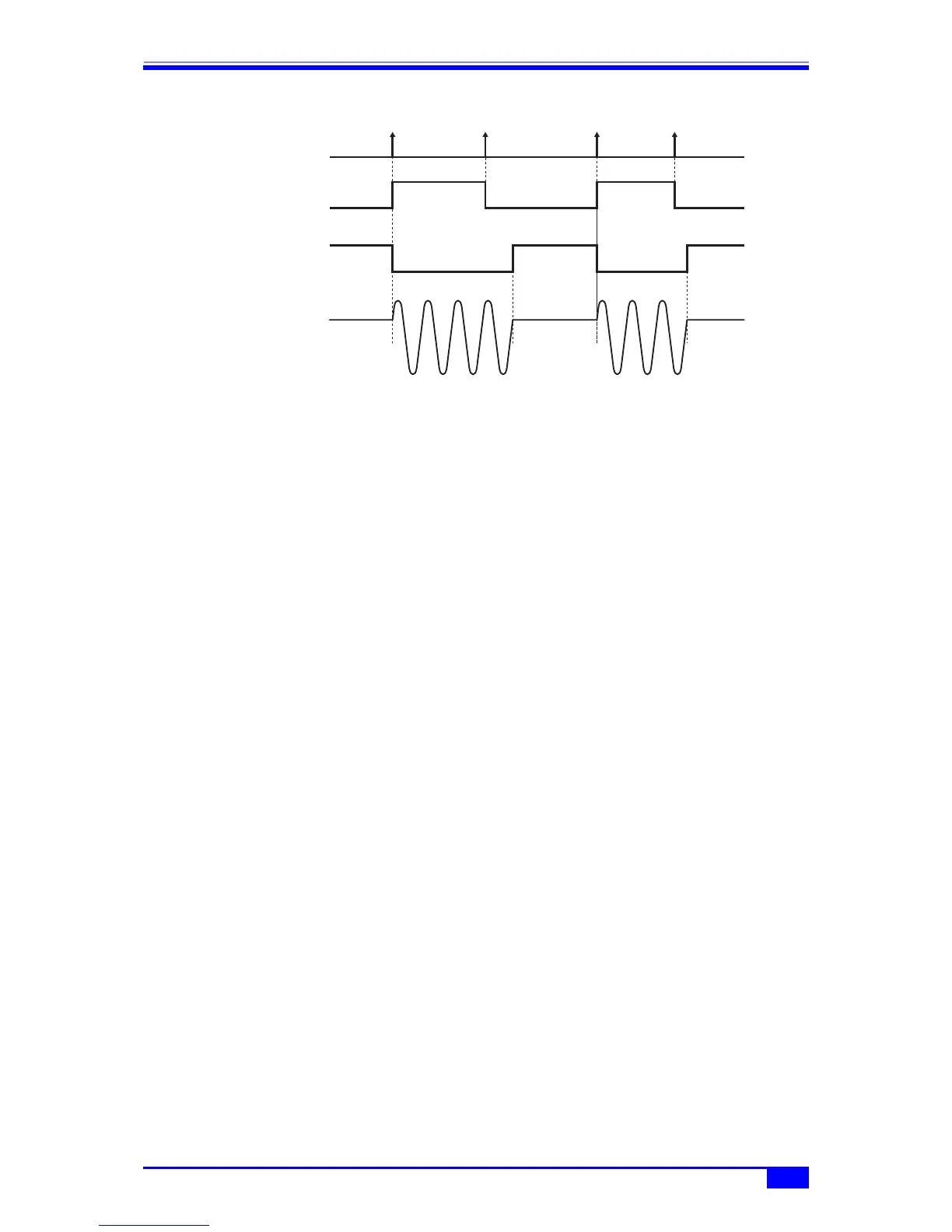

k) Noise triggered gate oscillation
Noise having no cycle, the gate-on period is the oscillation period, and the gate-off period is
the period stop interval. Further, since noise has no phase, the stop level setting is always
enabled. ) p. 117
Gate on
Gate off
Internal gate signal
Trigger signal
Burst sync signal
Output signal
Gate on
Gate off
Oscillation Stop Oscillation Stop
