RACK MOUNTING DIMENSIONS
MULTIFUNCTION GENERATOR

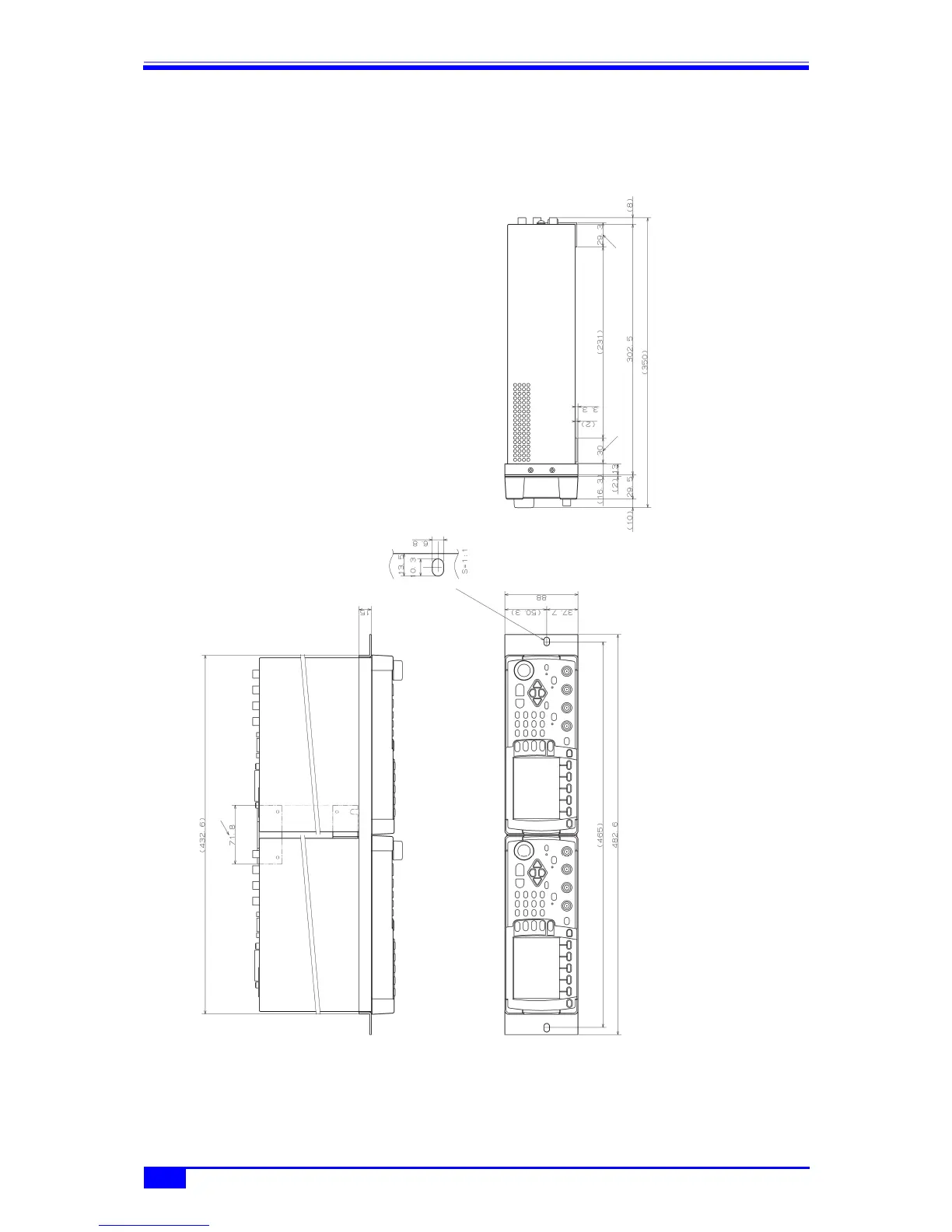

■ Inch rack mounting dimensions (for 2 units)
Surface treatment
Rack mount adapter: Painted in ultra-light gray (Munsell 6PB9.2/0.1)
Caution
To mount the unit in the rack, do not hold it only with the rack mount adapters.
Be sure to use L-brackets or shelves in the rack to hold the main unit.
When mounting the unit with shelves, the thickness of the connecting brackets must
be taken into consideration.
Connecting bracket
length
Connecting bracket dimensions
(bottom side of housing)
Connecting bracket
length
