4. BASIC OPERATION
MULTIFUNCTION GENERATOR
4.3.6 CH1/CH2 switching key and active channel (WF1974 only)
The channel to be set is switched each time the CH1/CH2 switching
key is pressed.
This key is invalid in setting screens that are channel independent.
The channel that is to be set is called the “active channel” in this
product. In the burst oscillation mode, etc., the MAN TRIG key
works for the active channel. Even if the screen is changed to a
channel independent screen, the channel that was active up to that
point is saved.
NEXT
MENU
FCTN O
U
CH 1/CH 2
±10V
Zout 50Ω
CH1/CH2
switching key
MANTRIG

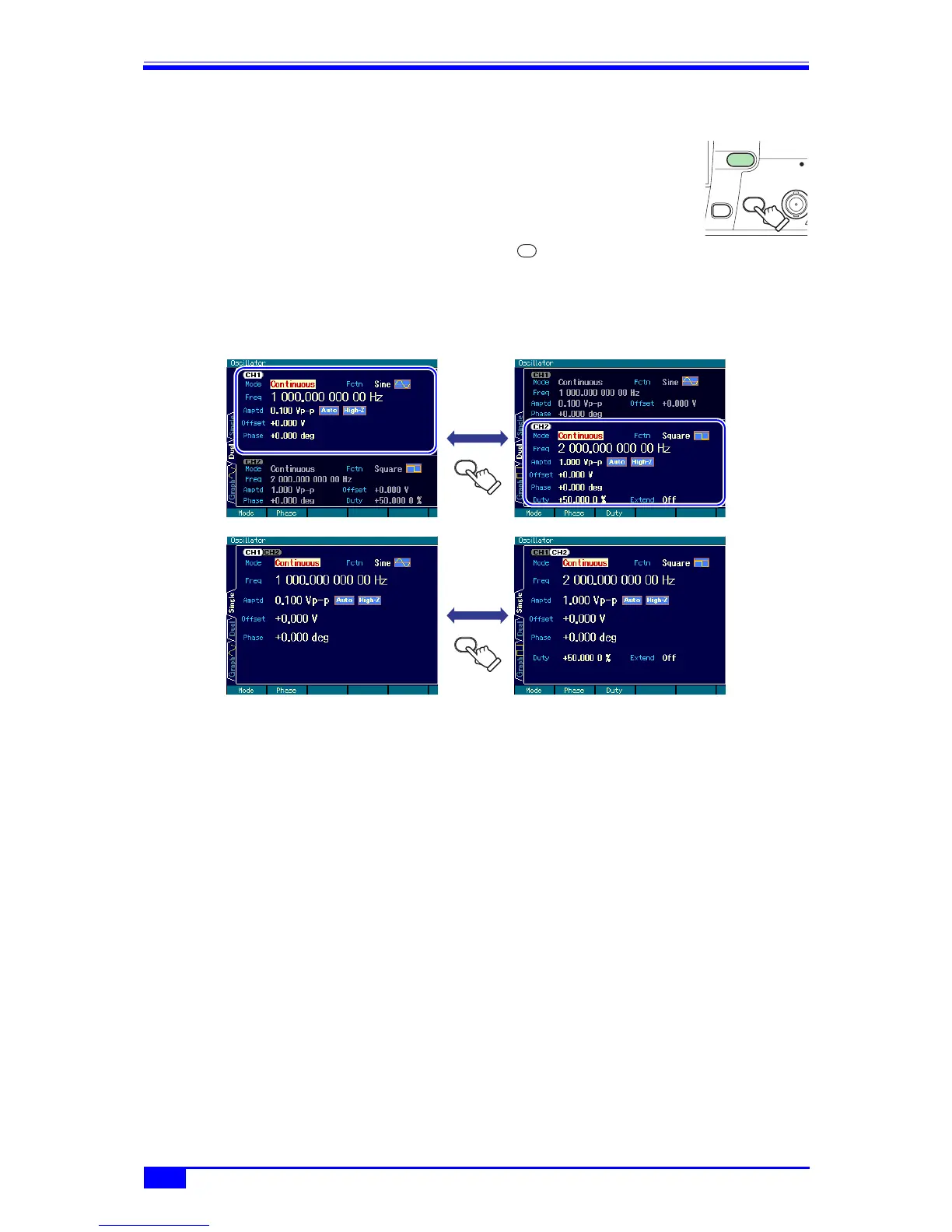

CH2 active
(CH2 = channel to be set)
CH1 active
(CH1 = channel to be set)
CH 1/CH 2
CH 1/CH 2
