NF WF1973 - Rear Panel of WF1973; Figure 3-2. Rear Panel of WF1973

3.1 Panel Components and Operations
9
WF1973/WF1974
Figure 3-2. Re ar Panel of WF1973
3.1.2 Rear panel of WF1973

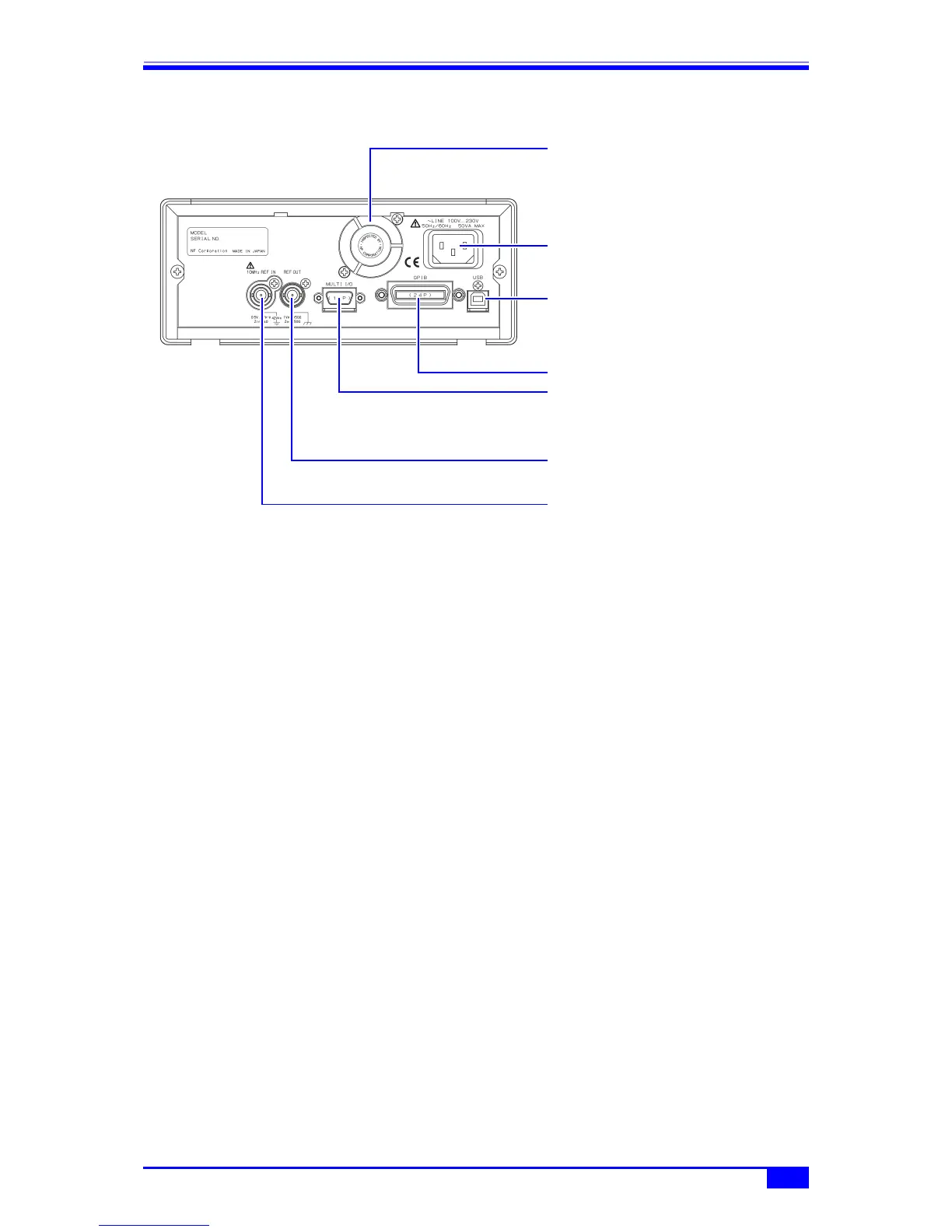

Figure 3-2. Rear Panel of WF1973
GPIB connector
Exhaust vent
) p. 5
Power supply input
) p. 6
Multi-I/O connector
Used for sweep, sequence control,
sync code output
) p. 16
Frequency reference output terminal
) p. 16
External 10 MHz frequency reference input
terminal
) p. 15
USB connector
