7. SPECIFICATIONS
MULTIFUNCTION GENERATOR

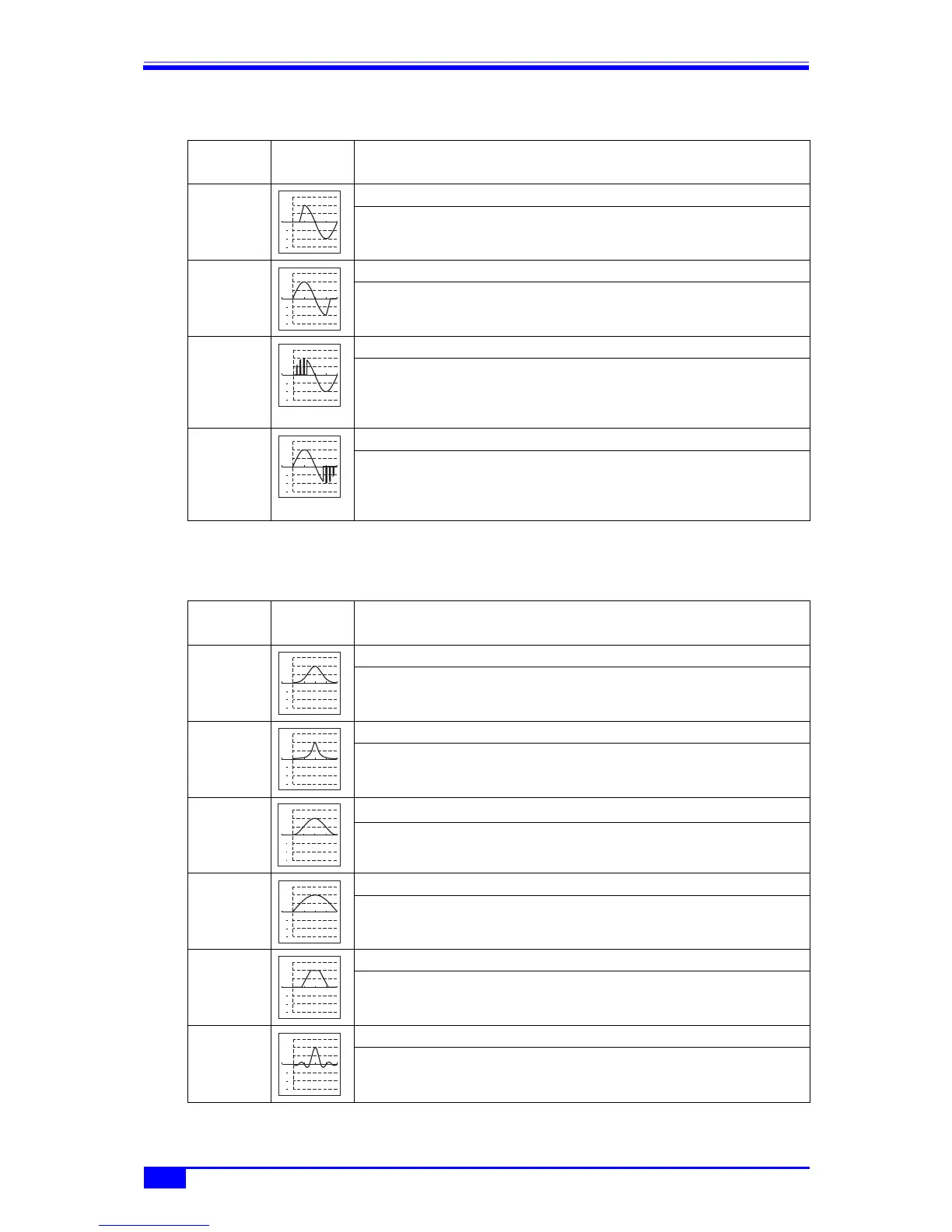

b) Transient sine group
c) Pulse group
Waveform
Name
Waveform
Example
Description and Variable Parameters
On-phase
controlled
sine
Sine wave with slope into on state
Complete-on phase (0.00° to 360.00°)
On-slope time (0.00% to 50.00% of basic period)
Off-phase
controlled
sine
Sine wave with slope into off state
Off-phase (0.00° to 360.00°)
Off-slope time (0.00% to 50.00% of basic period)
Chattering-
on sine
Sine wave with chattering into on state
On-phase (0.00° to 360.00°)
Number of chatterings (0 to 3)
On-state time (0.00% to 20.00% of basic period)
Off-state time (0.00% to 20.00% of basic period)
Chattering-
off sine
Sine wave with chattering into off state
Off-phase (0.00° to 360.00°)
Number of chattering (0 to 3)
On-state time (0.00% to 20.00% of basic period)
Off-state time (0.00% to 20.00% of basic period)
Waveform
Name
Waveform
Example
Description and Variable Parameters
Gaussian
pulse
Gaussian distribution waveform
Standard deviation (0.01% to 100.00% of basic period)
Lorentz
pulse
Lorentz waveform
Half value of width (0.01% to 100.00% of basic period)
Haversine
Sin
2
pulse
Width (0.01% to 100.00% of basic period)
Half-sine
pulse
Half-sine cycle pulse
Width (0.01% to 100.00% of basic period)
Trapezoid
pulse
Trapezoid pulse
Slope width (0.00% to 50.00% of basic period)
Upper base width (0.00% to 100.00% of basic period)
Sin(x)/x Sin(x)/x waveform
Number of zero crossings (1 to 50)
