Nibe FIGHTER 1110 - Electrical Connection Procedures

NOTE!
Electrical installation and service
must be carried out under the
supervision of a qualified electrician.
Electrical installation and wiring must
be carried out in accordance with the
stipulations in force.
Cables to the compressor and immersion heater are
placed in the cable duct on the left of the unit.
Cables for external sensors must enter on the right-
hand side. Cables may exit via the top or the back.
Electrical connection
For the Installer
20
FIGHTER 1110
Electrical installation

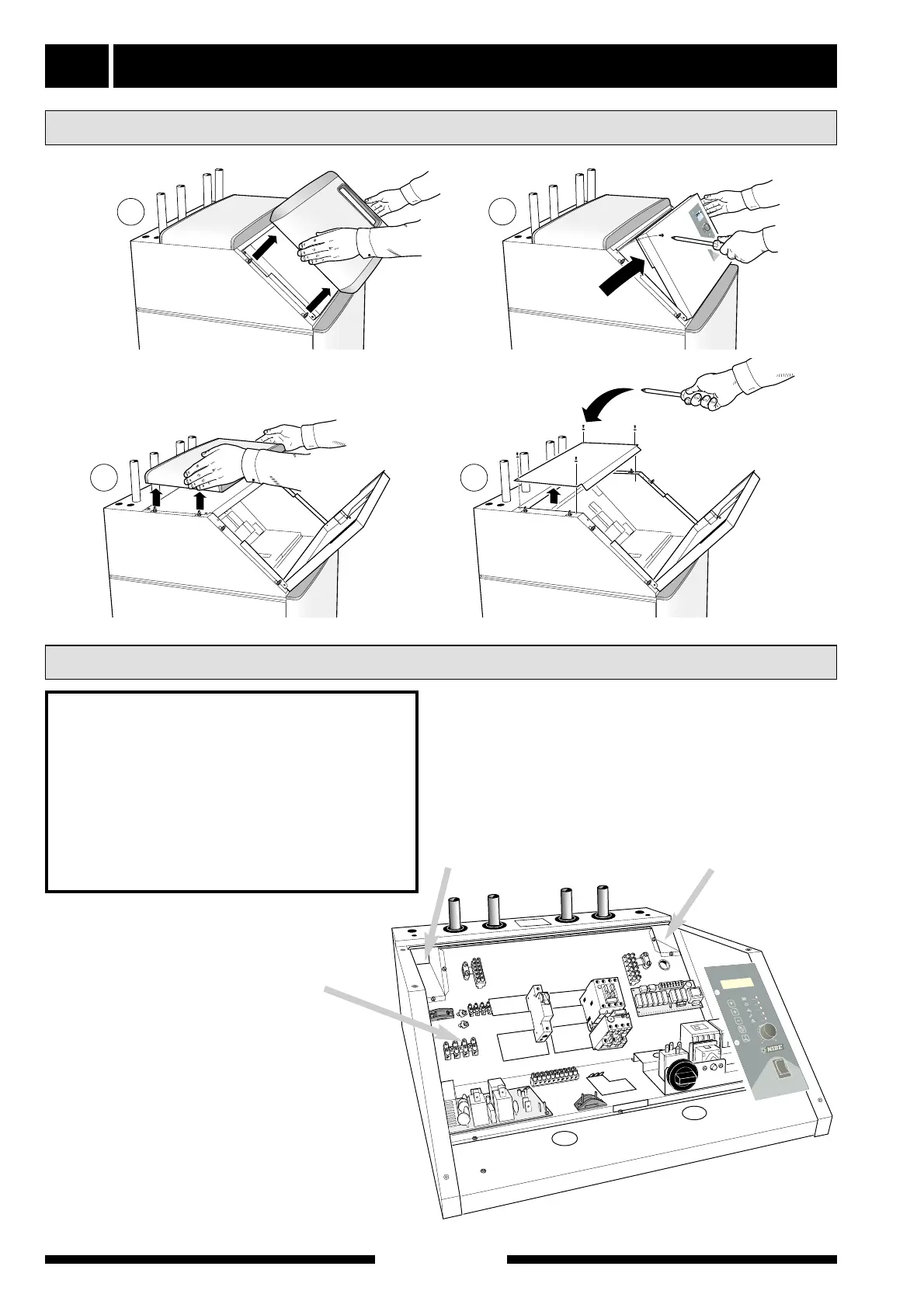

Removing the covers
LEK
LEK
1
2
LEK
3
LEK
4
LEK
+
2
-2
1
R
0
Cable duct
for sensors.
Cable duct
for the supply.
Terminal block,
incoming electricity (9)
