Nidec Digistart D4 User Manual

Installation

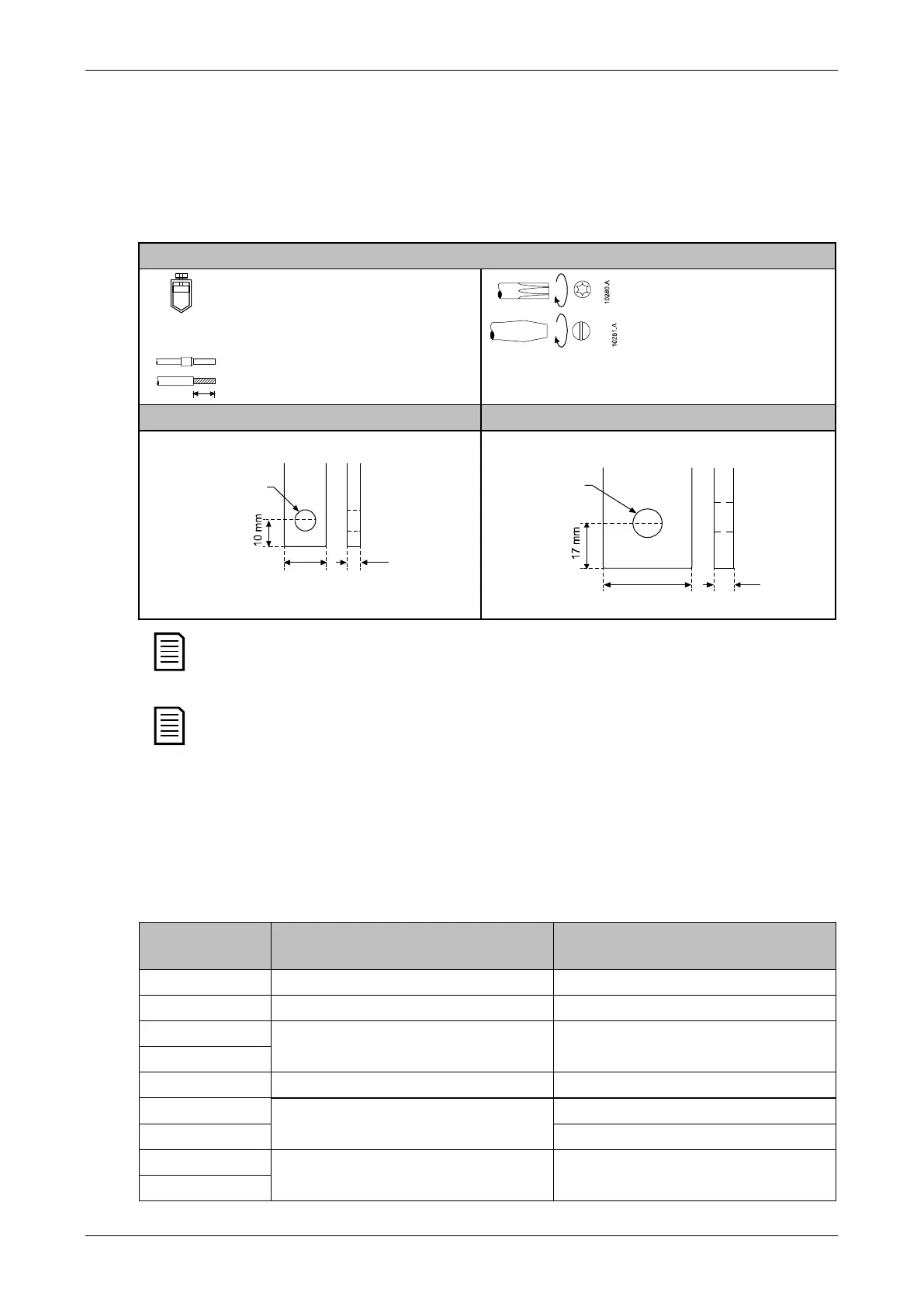

4.6 Power Terminations
The power input and output terminals are at the bottom of the unit.
• Models 0024B~0135B use cage clamps. Use only copper stranded or solid
conductors, rated for 75 ºC or higher.
• Models 0184B~0580B use busbars. Use copper or aluminium conductors, stranded
or solid, rated for 60 ºC/75 ºC.
0024B~0135B
05966.E
Cable size:
6-70 mm
2
(AWG 10-2/0)
Torque: 4 Nm (2.9 ft-lb)
Torx T20 x 150
Flat 7 mm x 150
11290.A
14 mm (0.55 inch)
0184B~0250B
0352B~0580B
19 Nm (14.0 ft-lb)
66 Nm (49.0 ft-lb)
6 mm
20 mm
9 mm
(M8)
17045.A
6 mm
34 mm
13 mm
(M12)
17047.A
NOTE
If the installation requires large diameter cables, it is possible to complete each
termination with two smaller cables, one on each side of the busbar.
NOTE
Some units use aluminium busbars. When connecting power terminations, we
recommend cleaning the surface contact area thoroughly (using an emery or
stainless steel brush) and using an appropriate jointing compound to prevent
corrosion.
Wiring Connectors
Select a connector according to the wire size, material and your application requirements.
A compression connector is recommended for models 0184B to 0580B. The recommended
crimping tool is TBM8-750.
Model
Example connector –
aluminium cable
Example connector –
copper cable
0184B
61162
60150
0200B
61165
60156
0229B
61171 60165
0250B
0352B
61162
60150
0397B
61165
60156
0410B
60162
0550B
61178 60171
0580B
23
