System Design

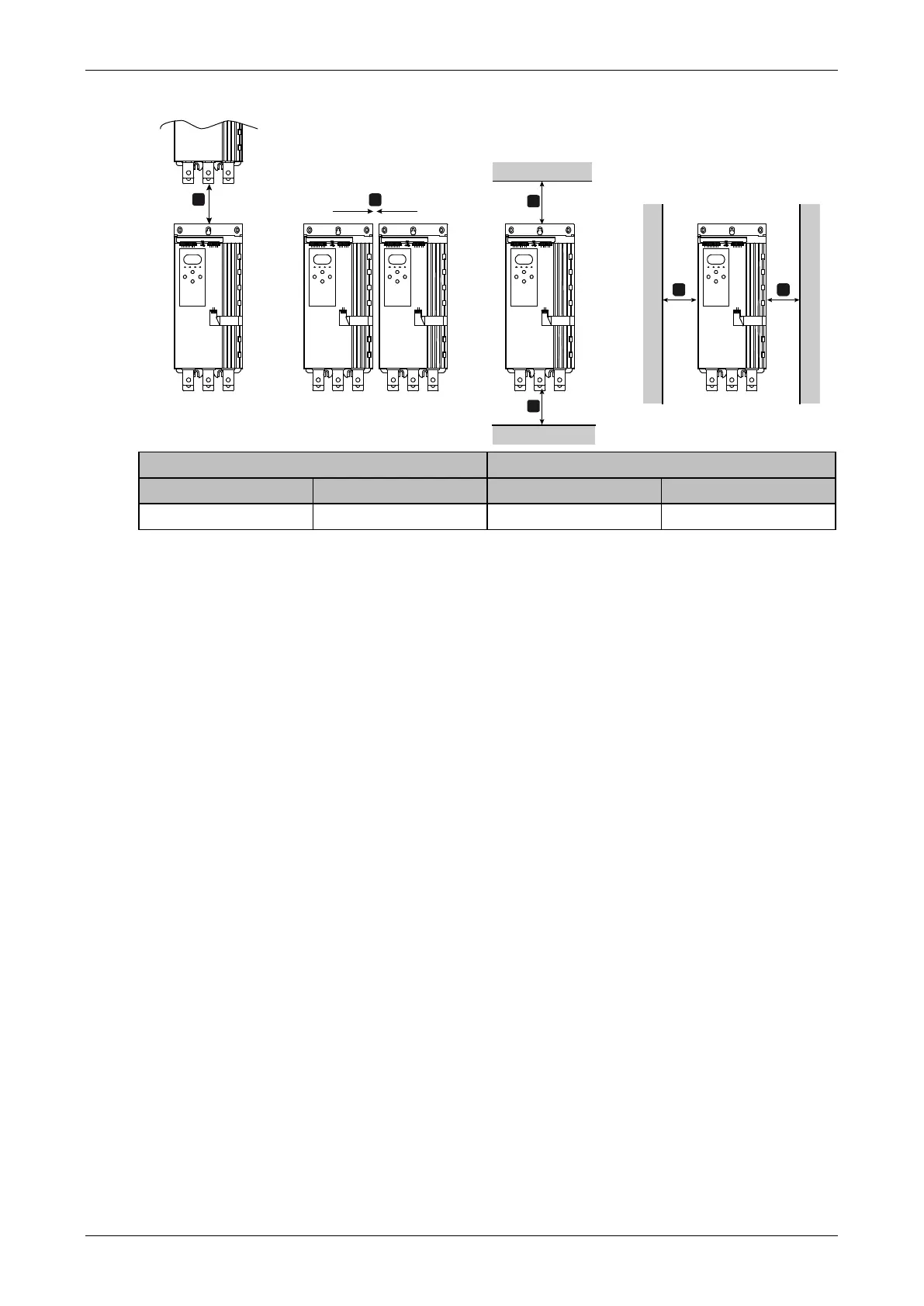

3.6 Physical Installation
DD
18542. A
C
C
B
A
2/T1 4/T 2 6/T 3
33 34 41 42 44 53 54
2/T1 4/T 2 6/T 3
B4 B5 1011 12 13 14 15 21 22
A3 A1 A2
33 34 41 42 44 53 54
2/T1 4/T 2 6/T 3
B4 B5 1011 12 13 14 15 21 22
A3 A1 A2
33 34 41 42 44 53 54
2/T1 4/T2 6/ T3
B4 B5 1011 12 13 14 15 21 22
A3 A1 A2
33 34 41 42 44 53 54
2/T1 4/T2 6/ T3
B4 B5 1011 12 13 14 15 21 22
A3 A1 A2
33 34 41 42 44 53 54
2/T1 4/T2 6/ T3
B4 B5 1011 12 13 14 15 21 22
A3 A1 A2
Between starters
Solid surfaces
A
B
C
D
> 100 mm (3.9 inch)
> 10 mm (0.4 inch)
> 100 mm (3.9 inch)
> 10 mm (0.4 inch)
3.7 Accessories
Expansion Cards
The soft starter offers expansion cards for users requiring additional inputs and outputs or
advanced functionality. Each soft starter can support a maximum of one expansion card.
Pumping Smart Card
The pumping smart card has been designed to support integration with pumping
applications and provides the following additional inputs and outputs:
3 x digital inputs
3 x 4-20 mA transducer inputs
1 x RTD input
1 x USB-B port
Remote keypad connector
Communication Expansion Cards
The soft starter supports network communication via easy-to-install communications
expansion cards. Each communications card includes a remote keypad connector port.
Available protocols:
DeviceNet, Ethernet/IP, Modbus RTU, Modbus TCP, Profibus, Profinet.
Remote Keypad
soft starter starters can be used with a remote keypad, mounted up to 3 metres away from
the starter. Each expansion card includes a keypad connection port, or a dedicated keypad
connector card is available.
Finger Guard Kit
Finger guards may be specified for personnel safety. Finger guards fit over the soft starter
terminals to prevent accidental contact with live terminals. Finger guards provide IP20
protection when used with cable of diameter 22 mm or greater.
Finger guards are compatible with models 0184B ~ 0580B.
11
