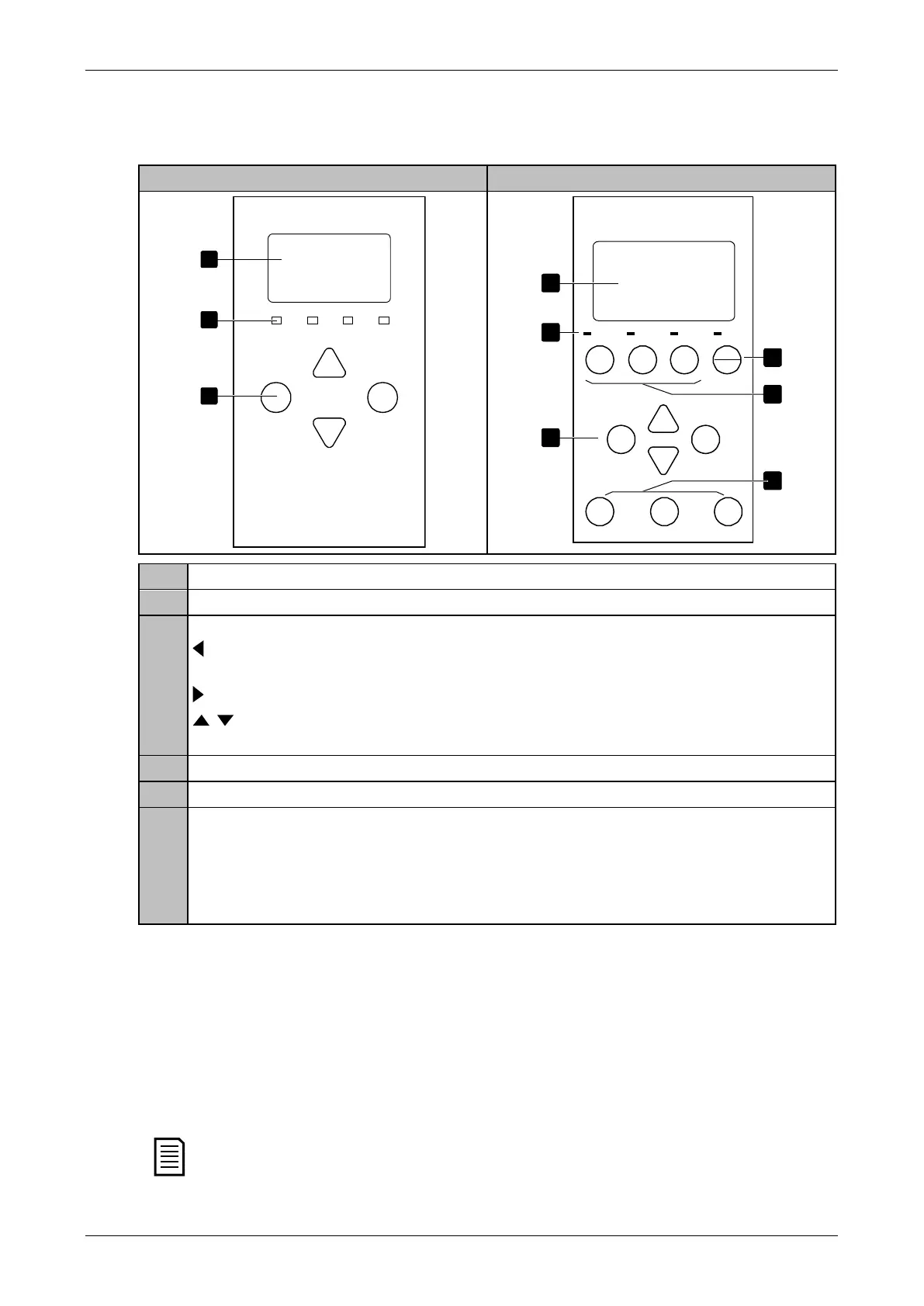

7.1 The Keypad
Remote keypad (if installed)
RunReady Trip Local
18531.B
1
2
3
Four-line display for status and programming details.
: Exit the menu or parameter, or cancel a parameter change. On the local keypad,
this button also resets a trip.
: Enter a menu or parameter, or save a parameter change.
: Scroll to the next or previous menu or parameter, change the setting of the
current parameter or scroll through the status screens.
Shortcut to the command source menu in Setup Tools.
Soft starter local control buttons
Shortcut buttons for quick access to common tasks.
LOGS: Open the Logs Menu.
GRAPHS: Select which graph to view, or pause/restart the graph (hold longer than
0.5 seconds)
TOOLS: Open the Setup Tools.
7.2 Remote Keypad
The remote keypad can be used to control the soft starter if parameter 1A Command
Source is set to 'Remote Keypad'.
• If the remote keypad is not selected as the command source, the START, STOP
and RESET buttons will have no effect.
• The menu navigation buttons and display on the remote keypad are always active.
• If a button is pressed on the starter's local keypad, the display on the remote keypad
will update to match.
NOTE
The remote keypad can be safely connected or removed while the starter is
running. It is not necessary to remove mains or control voltage.
