Setup Tools
When the action has been completed, the screen will
briefly display a confirmation message, then return to
the previous menu level.
NOTE
The network address can also be set using parameters 12H~12S.
NOTE
To configure the soft starter for use with other communication protocols, use
parameters 12A~12G.

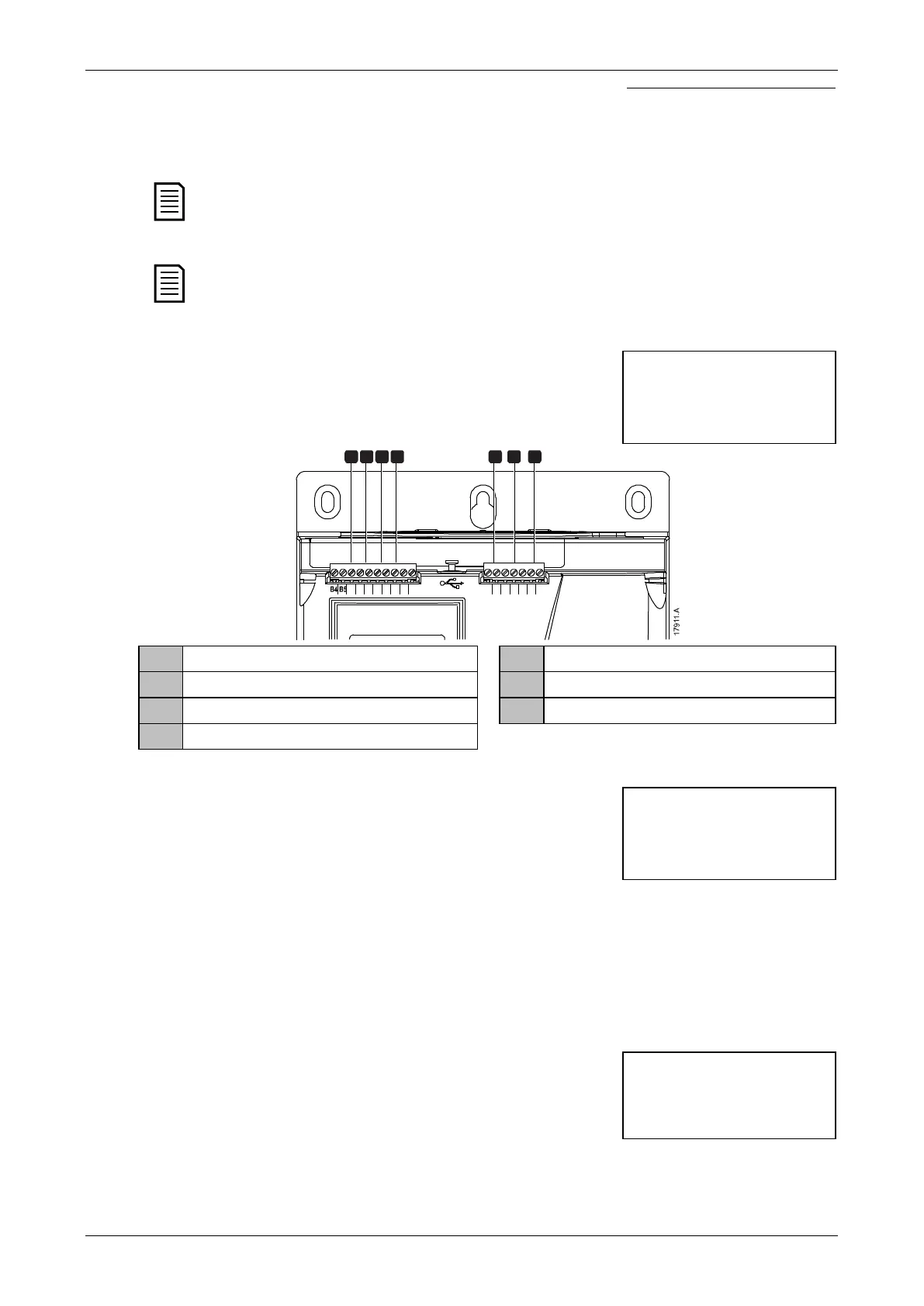

5.7 Digital I/O State
The top line of the screen shows the start/stop, reset and
programmable inputs.
The bottom line of the screen shows the fixed Main
Contactor output, then programmable outputs A and B.
Digital I/O State
Inputs: 00000000
Outputs: 00000000
33 34 41 42 44 53 54
10 11 12 13 14 15 21 22
76
5
43
21
1
10, 11: Reset input
5
33, 34: Main contactor output
2
11, 12: Start/stop input
6
41, 42, 44: Relay output A
3
13, 14: Programmable input A
7
53, 54: Relay output B
4
13, 15: Programmable input B
5.8 Analog I/O State
The top line of the screen shows the state of the motor
thermistor input.
The bottom line of the screen shows the value of the analog
output.
Analog I/O State
Thermistor: 0
4-20mA Output: 04.0 mA
Thermistor input:
S = Short
H = Hot
C = Cold
O = Open
5.9 Serial Number & Rating
The top line of the screen shows the product name.
The middle line shows the unit's serial number.
The bottom line of the screen shows the model number.
Serial Number & Rating
Soft starter
123456-123
0410-V5-S1-C1
