Setup Tools
3. Scroll to USB Save & Load and press the button.
4. Scroll to the required function and press the
button.
USB Save & Load
Save Params and Logs
Save Master Params
Load Master Params
5. At the confirmation prompt, select YES to confirm or NO
to cancel, then press ENTER to proceed.
Save Params and Logs
No
Yes
When the action has been completed, the screen will
briefly display a confirmation message, then return to
the previous menu level.

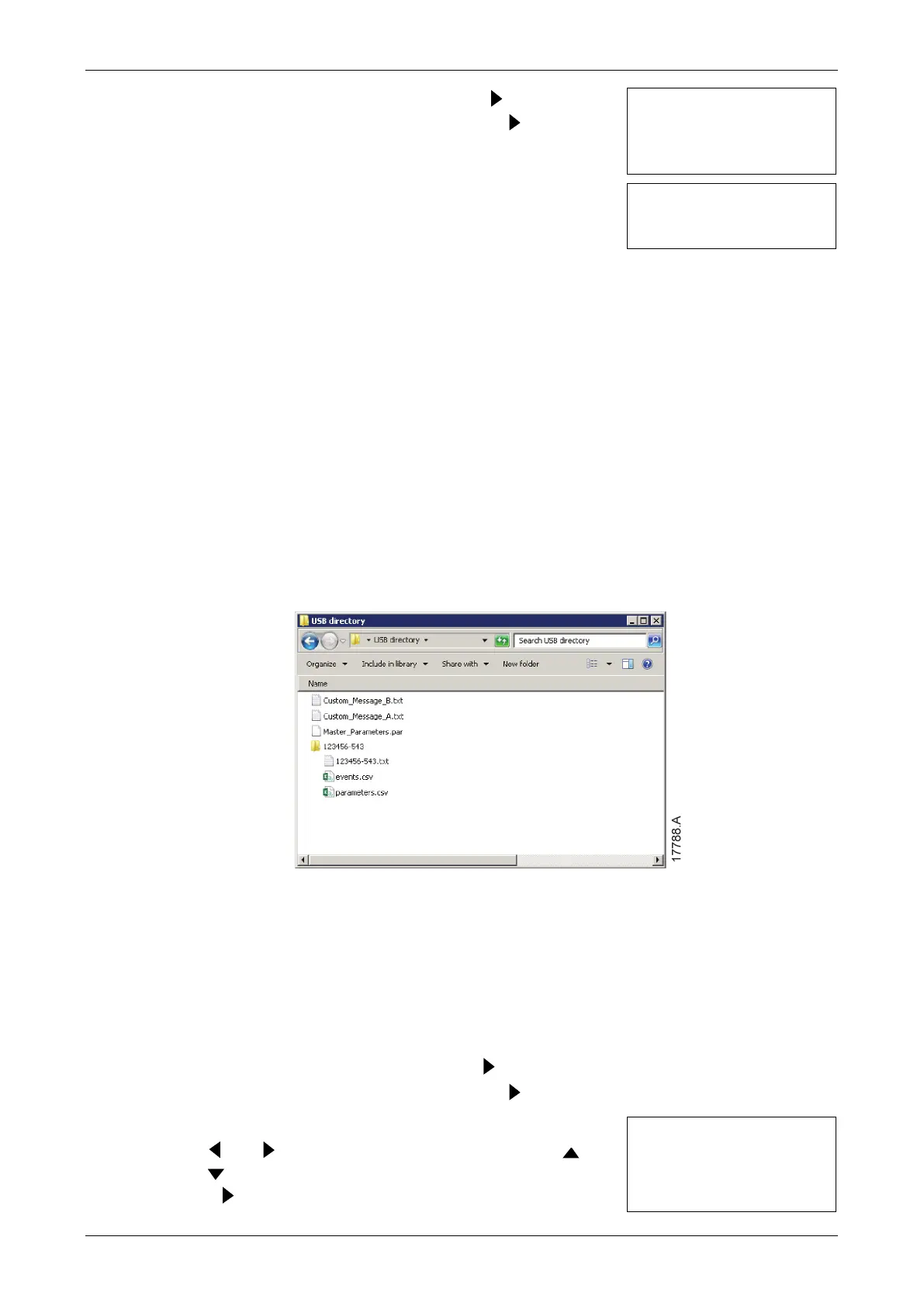

File Locations and Formats
Save Parameters and Logs: The soft starter will create a directory at the top level of the
USB drive, named with the soft starter's serial number. The event log and parameter
settings are saved as individual CSV files, and the soft starter's software and system
information are saved to a text file.
Save Master Parameters: The soft starter will create a file called Master_Parameters.par, in
the top level of the USB drive.
Load Master Parameters: The soft starter will load the file Master_Parameters.par from the
top level of the USB drive. This file can be created or edited using WinMaster management
software.
Load Custom Message: The soft starter will load the files Custom_Message_A.txt and
Custom_Message_B.txt from the top level of the USB drive.
5.6 Network Address
To use the soft starter on an Ethernet network, separate addresses must be configured for:
• IP Address
• Gateway Address
• Subnet Mask
To set the network addresses:
1. Press MENU to open the menu then select Setup Tools.
2. Scroll to Network Address and press the button.
3. Scroll to the required function and press the button.
4. The first digit of the address will be highlighted.
5. Use and to select which digit to alter. Use the
and
buttons to change the value.
6. Press
after the last digit to save the setting.
Set IP Address
192.168.000.002
29
