Chapter 6. Capturing Confocal Zoom
6.1 Perform Steps 4.1 to 4.7 in Chapter 4, “Capturing Color Images” to determine image
acquisition conditions.

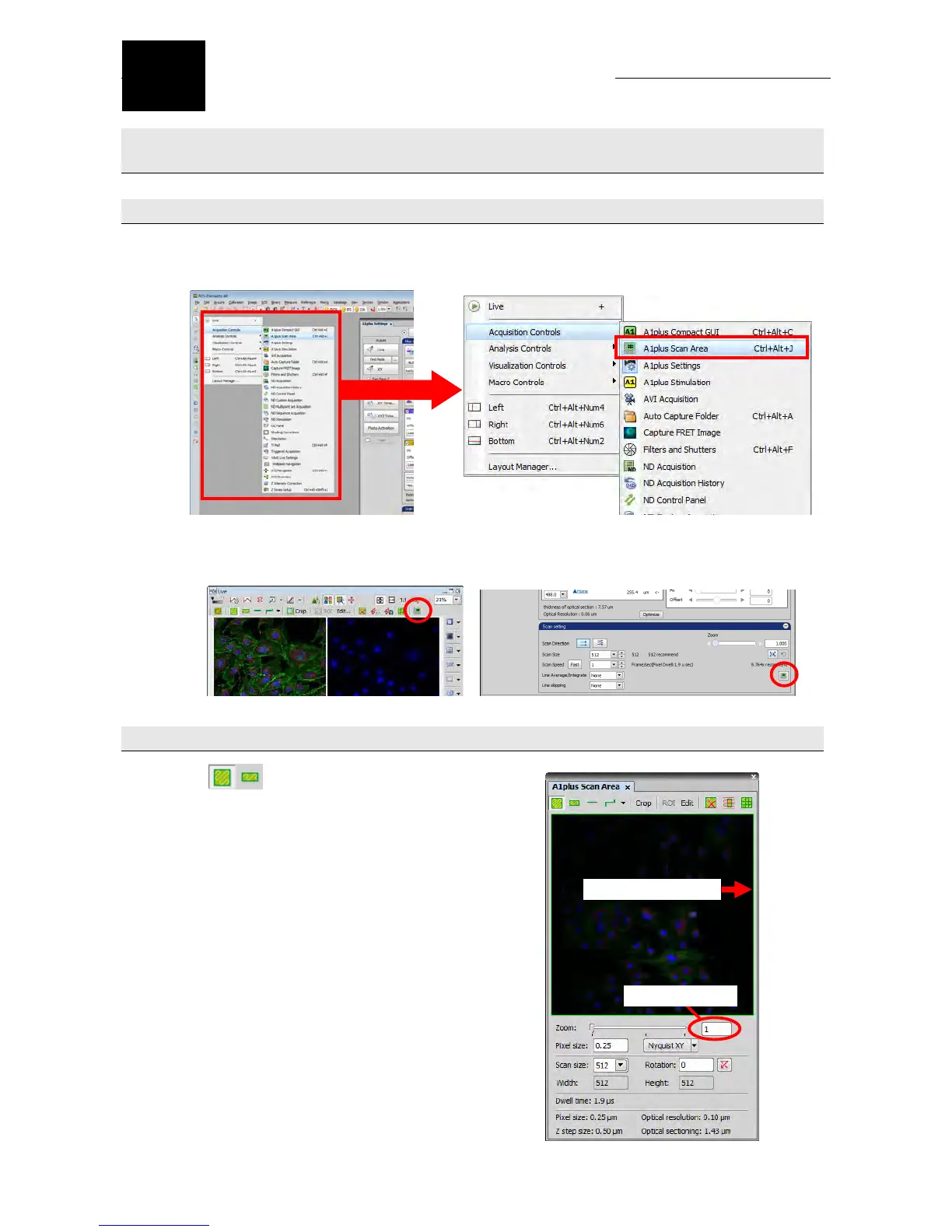

6.2 Call the Scan Area window.
Right-click the gray area of the software and select [Acquisition Controls] - [A1plus Scan Area] from the
displayed menu to call it.
* This window also opens by clicking the button shown below that is displayed in the Live window or A1plus
Settings window.
6.3 Select the zoom area.
Click
in the Scan Area window and drag
the green frame to reduce the scan area.
The frame can be moved with the mouse cursor
set in the cross arrow state. The scan position can
be determined by right-clicking.
Zoom magnification is shown in [Zoom].
Drag the green frame
Zoom magnification

Nikon A1 Specifications

General

Type	Confocal Microscope
Software	NIS-Elements
Laser Lines	405 nm, 488 nm, 561 nm, 640 nm
Detector	GaAsP PMT detectors
Imaging Modes	Confocal, Spectral, FRAP
Scanning Method	Galvanometer-based scanning
Objectives	Compatible with Nikon CFI objectives
Dimensions	Varies with configuration
Weight	Varies with configuration
Laser	Multiple laser lines available
