Nikon A1 User Manual

Chapter 10. Creating Three-Dimensional Image A1
33

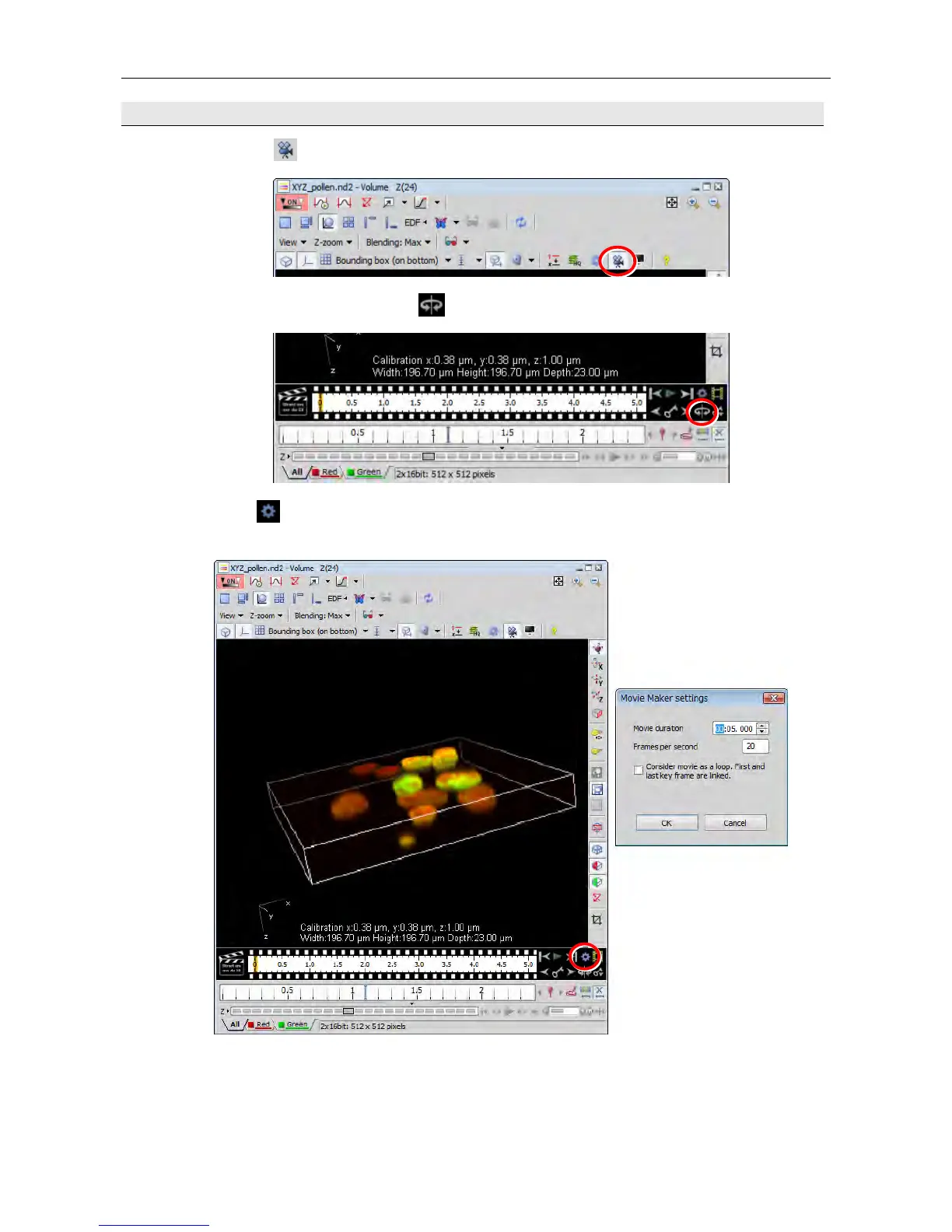

10.3 Create a rotation image of the three-dimensional image.
(1) Turn on the
[Show Movie Maker] button.
(2) Select the rotating direction with the
[Presets] button.
(3) Click the
[Settings] button to open the Movie Maker settings dialog box.
Set [Movie duration] (playback time) and [Frames per second] (playback speed) and click the [OK] button.
Note: Frames per Second (fps) is the number of images displayed per second. Moving picture
becomes smoother as the number of images increases. Use 3 to 10 fps as a guideline.

Nikon A1 Specifications

General

Type	Confocal Microscope
Software	NIS-Elements
Laser Lines	405 nm, 488 nm, 561 nm, 640 nm
Detector	GaAsP PMT detectors
Imaging Modes	Confocal, Spectral, FRAP
Scanning Method	Galvanometer-based scanning
Objectives	Compatible with Nikon CFI objectives
Dimensions	Varies with configuration
Weight	Varies with configuration
Laser	Multiple laser lines available
