FORM NO. 56043098 - Convertamatic
™
24, 26, 28, 32 / BA 625, 725, 825 - 9

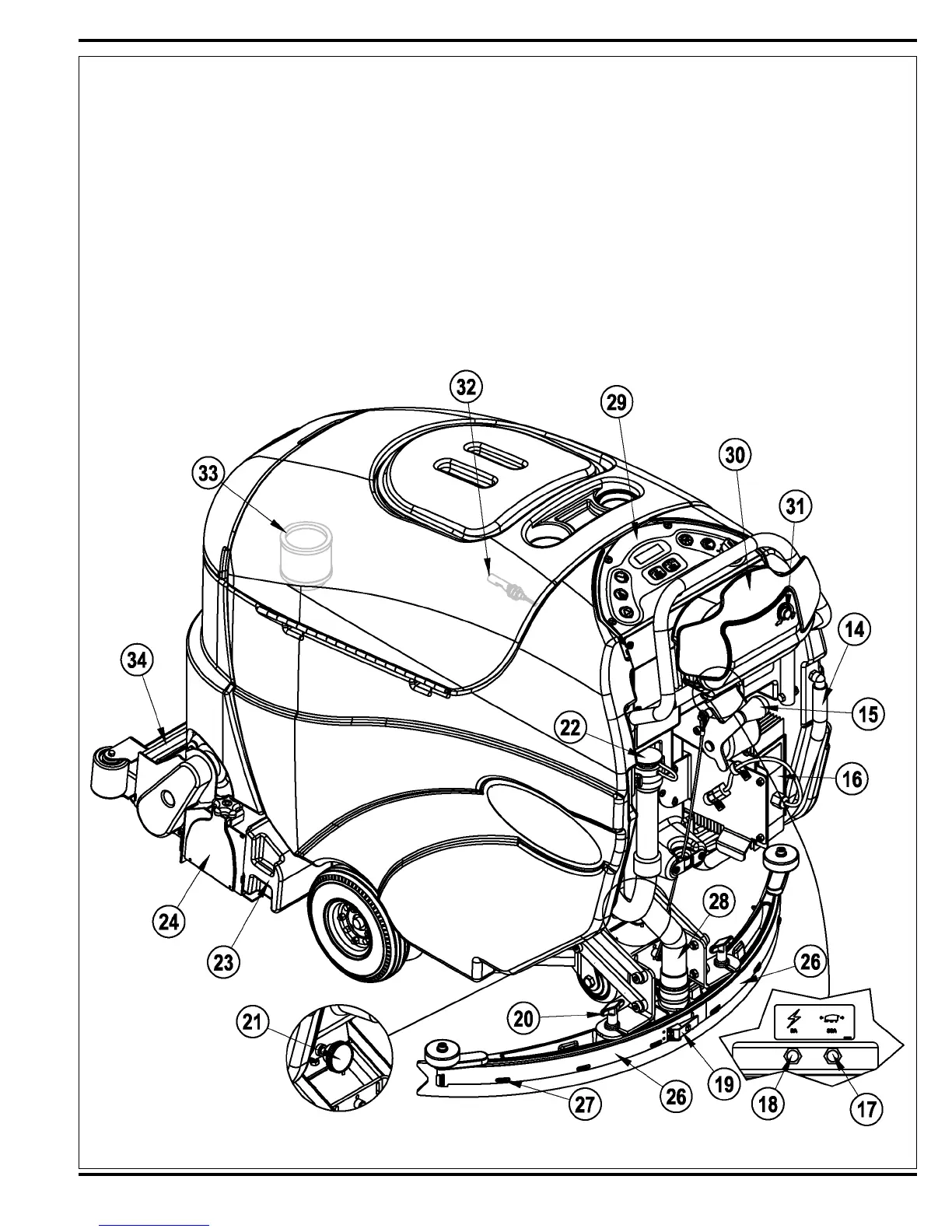

KNOW YOUR MACHINE
14 Solution Drain Hose / Level Indicator
15 Squeegee Raise / Lower Lever
16 Onboard Battery Charger (Not found on all models)
17 Wheel Drive Circuit Breaker
18 Control Circuit Circuit Breaker
19 Squeegee Blade Latch
20 Squeegee Mount Thumb Nut
21 Squeegee Adjustment Knob
22 Recovery Tank Drain Hose
23 Debris Hopper (Cylindrical Models Only)
24 Idler Assembly (Cylindrical Models Only)
25 Battery Pack Connector (non onboard charger models only)
25a Battery Pack Connector (onboard charger models only)
26 Squeegee Blade Tension Strap
27 Squeegee Blade Alignment Pins
28 Recovery Hose
29 Control Panel
30 Drive Paddle
31 Speed Limit Control Knob
32 Vacuum Shut Off Switch
33 Extended Scrub Filter (Optional)
34 Solution Manifold (Cylindrical Models Only)
