Nilfisk-Advance Convertamatic 24 Service Manual

74 - FORM NO. 56043098 - Convertamatic
™
24, 26, 28, 32 / BA 625, 725, 825
APPENDIX

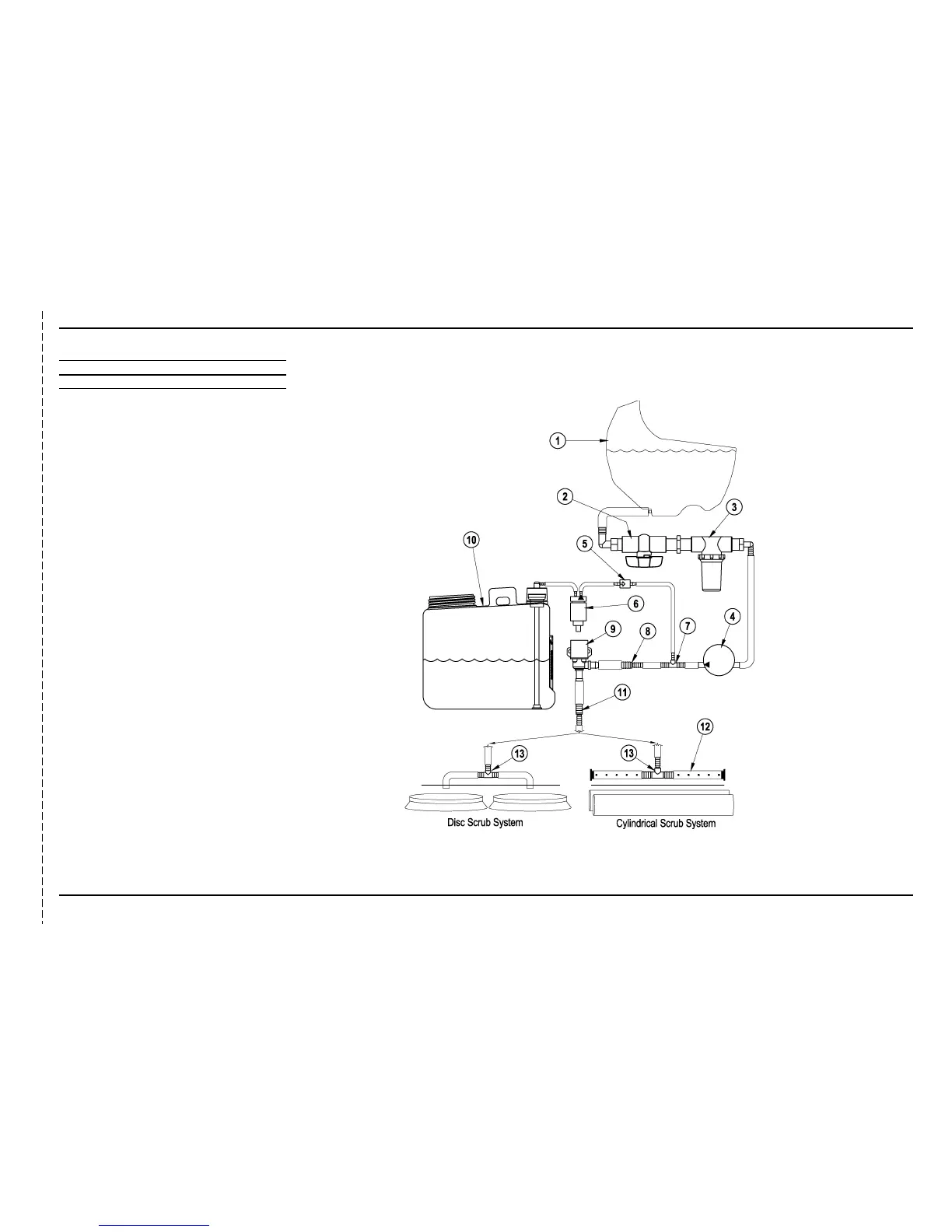

DETERGENT (AXP) SYSTEM PLUMBING SCHEMATIC
Item Description
1 Solution Tank
2 Shut Off Valve
3 Inline Solution Filter
4 Solution Pump
5 Check Valve
6 Detergent Pump
7 Reducer Tee
8 Reducer Coupler
9 Solution Solenoid Valve
10 Detergent Tank
11 Reducer Coupler
12 Solution Manifold (Cylindrical Models)
13 Tee
